MPRO basin monobloc
Product Options
finish options
Chrome
|
Brushed Stainless Steel
|
Matt Black
|
Brushed brass
|
As Shown
| PRO110DNV MPRO Basin Monobloc No Waste Stainless |
Material
| PRO110DNV - basin monobloc - Brass |
Nett Weight
| PRO110DNV - basin monobloc - 0.84kg |
Gross Weight Including Packaging
| PRO110DNV - basin monobloc - 1.09kg |
Packed Dimension
| PRO110DNV - 285 x 235 x 72 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN817 |
Additional Information
|
Range: Mike Pro |
|
Spout Projection: 120mm |
|
Spout Style: Fixed Spout |
|
Mount Type: Basin Mounted |
|
Style: Modern |
|
Lever Type: Single Lever |
|
Water Pressure: MP |
|
Waste: Without pop-up-waste |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 1.71 | 3.06 | 4.42 | 5.72 | 4.83 | 4.71 | 4.59 |
| CGPRO114M | cartridge of PRO110DNC and PRO114DNC |
| CGPRO110M | cartridge of PRO110DNC, PRO120WNC and PRO113DNC |
Downloads
-
2D CAD-File - DWG -
PRO110DNV
(PRO110DNC-DD-180525_7.dwg)
-

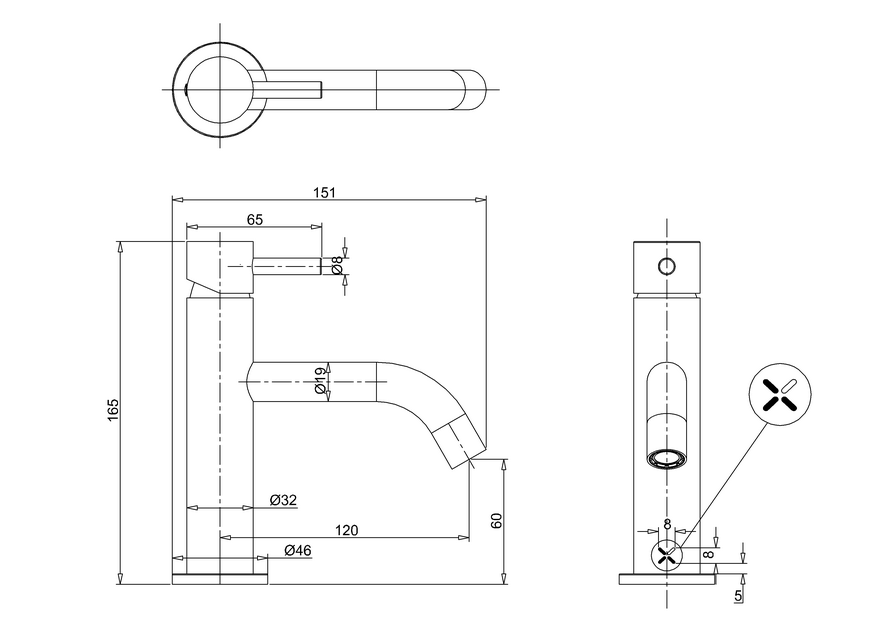

2D Drawing - PDF -
PRO110DNV
(PRO110DNC-DD-180525_7.pdf)
2D Drawing - PDF - PRO110DNV
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
jpg -
Lifestyle image 4 -
jpg -
Lifestyle image 5 -
jpg -
Lifestyle image 6 -
jpg -
Lifestyle image 7 -
jpg -
Product image 1 -
jpg
