D30 double door unit
Product Options
Colour options:
White
|
Light Grey
|
As Shown
| AD33L 600mm double shelf unit,light grey |
Nett Weight
| AD33L - base unit - 20kg |
Gross Weight Including Packaging
| AD33L - base unit - 21kg |
Packed Dimension
| AD33L - 700 x 400 x 920 = 0.2576 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Please note that this product is not compatible if using with the D300 back to wall WC or D300 double door Basin units. |
|
Vinyl wrap gloss finish |
|
Soft close doors |
|
5mm safety glass shelves |
|
Rigid solid carcass - not flat pack |
|
Work top or basin required |
| SP945 | assembling screws & fixings for Burlington and Aqua furniture (10pcs for one set) |
| SP1348 | one piece of soft close hinge for Aqua straight panel |
Downloads
-
2D CAD-File - DWG -
AD33L
(AD33L_LD.dwg)
-

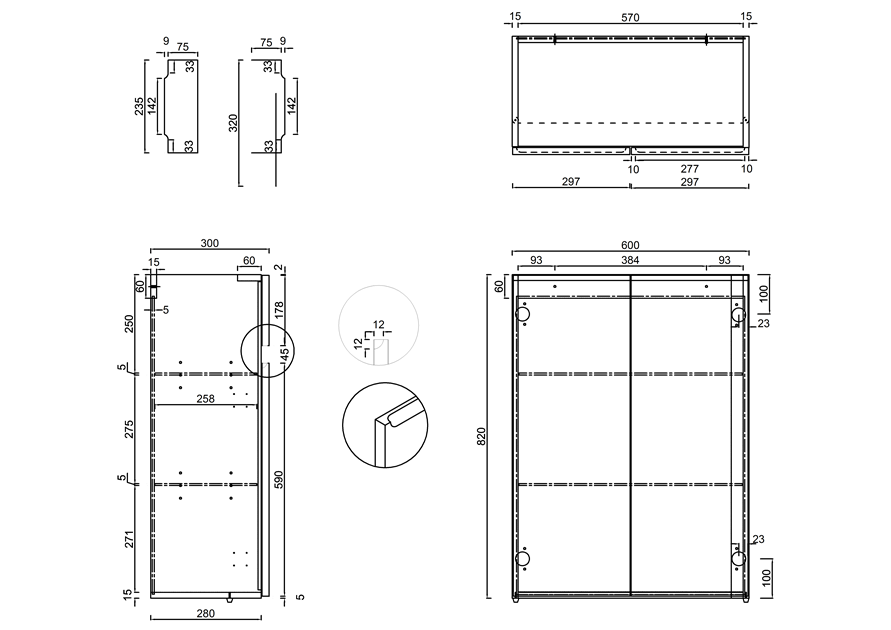

2D Drawing - PDF -
AD33L
(AD33L_LD.pdf)
2D Drawing - PDF - AD33L
-
3D DWG - File - DWG
-
AD33L
(AD33W.dwg)
-
3D DXF - File - DXF
-
AD33L
(AD33W.dxf)
-
3D IGS - File - IGS
-
AD33L
(AD33W.igs)
-
3D RFA BIMM Objects - File - RFA
-
AD33L
(AD33W.rfa)
