100 Freestanding Right Hand Vanity Unit with Doors
Product Options
Finish Options
Worktop options
Dark Olive
|
Sand
|
Matt White
|
|
Classic Grey
|
Blue
|
Matt Green
|
Minerva Carrara white worktop
|
Minerva white worktop
|
Minerva black granite worktop
|

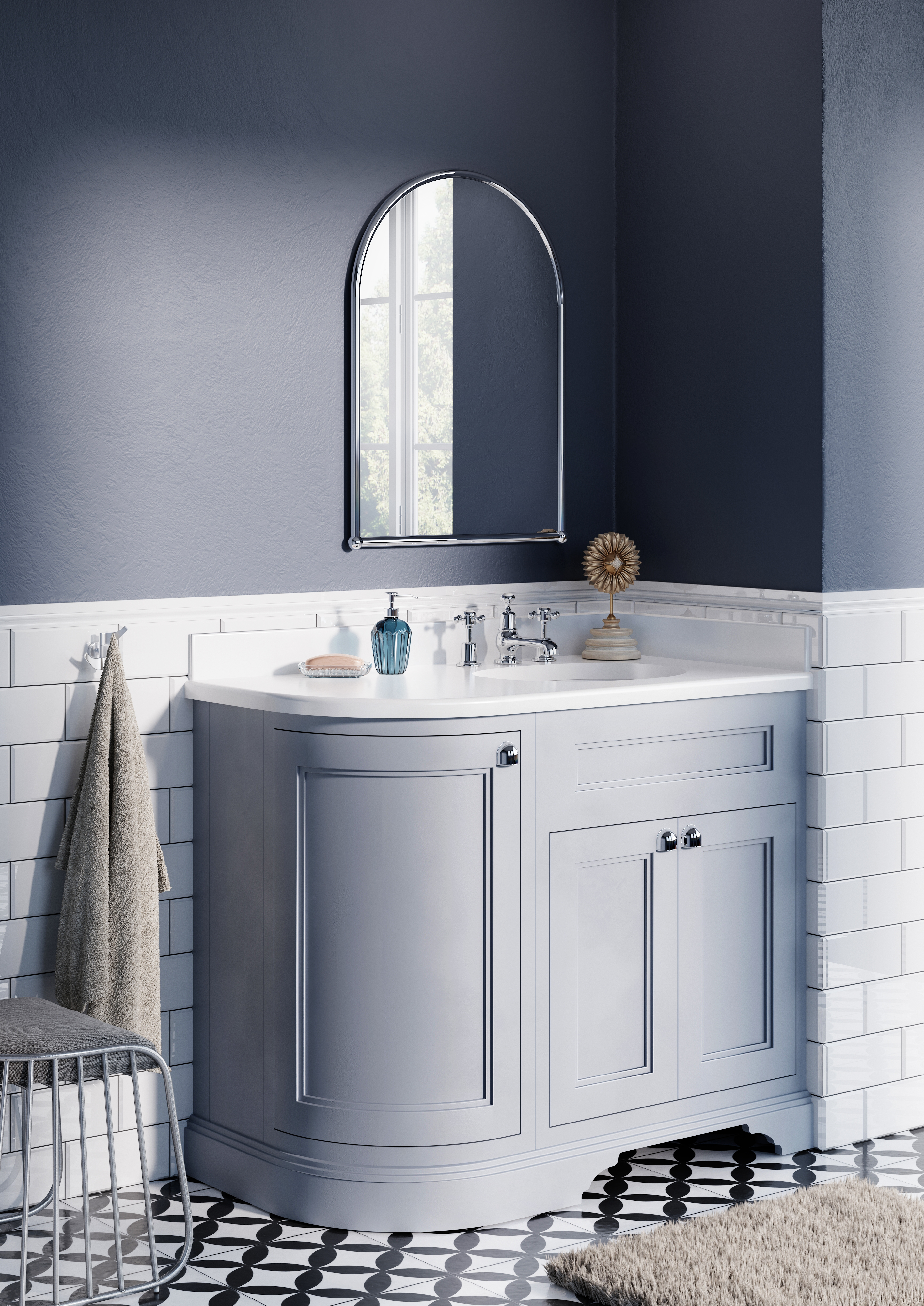

As Shown
| BW98R Minerva white RH with vanity bowl |
| FC3G Freestanding 100 Curved Corner Vanity Unit Right Hand - Grey |
Material
| BW98R - worktop with intergrated basin - minerva solid surface material |
| FC3G - base unit - Engineered Wood - MDF |
Gross Weight Including Packaging
| BW98R - worktop with intergrated basin - 35kg |
| FC3G - base unit - 61.3kg |
Packed Dimension
| BW98R - 1060 x 625 x 255 = 0.1689 m3 |
| FC3G - 1075 x 660 x 1075 = 0.7627 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
| SP669 | adjustable leg 80mm for FF8, FF9, FC9, FC10, FC1, FC2, FC3, FC4, FC5 |
| SP907 | brackets for bath panels and Burlington curved units (2 pieces) |
| SPFC1CP_G_LH | curve Door LH for FC1, FC3, FC5 Grey |
| SPFF8DP_G_LH | door Panel LH FF8, FC9, FC1, FC2, FC3 Grey |
| SPFF8DP_G_RH | door Panel RH FF8, FC9, FC1, FC2, FC2 Grey |
| SP1062 | flat door panel for FF8G, FC9G, FC1G, FC2G, FC3G - Grey |
Downloads
-
2D CAD-File - DWG -
FC3G_BW98R
(FC3_FT4BR-B.dwg)
-
2D Drawing - PDF -
FC3G_BW98R
(FC3_FT4BR-B.pdf)
2D Drawing - PDF - FC3G_BW98R
-
3D DWG - File - DWG
-
FC3G_BW98R
(90553.dwg)
-
3D DXF - File - DXF
-
FC3G_BW98R
(90553.dxf)
-
3D IGS - File - IGS
-
FC3G_BW98R
(90553.igs)
-
3D RFA BIMM Objects - File - RFA
-
FC3G_BW98R
(90553.rfa)
