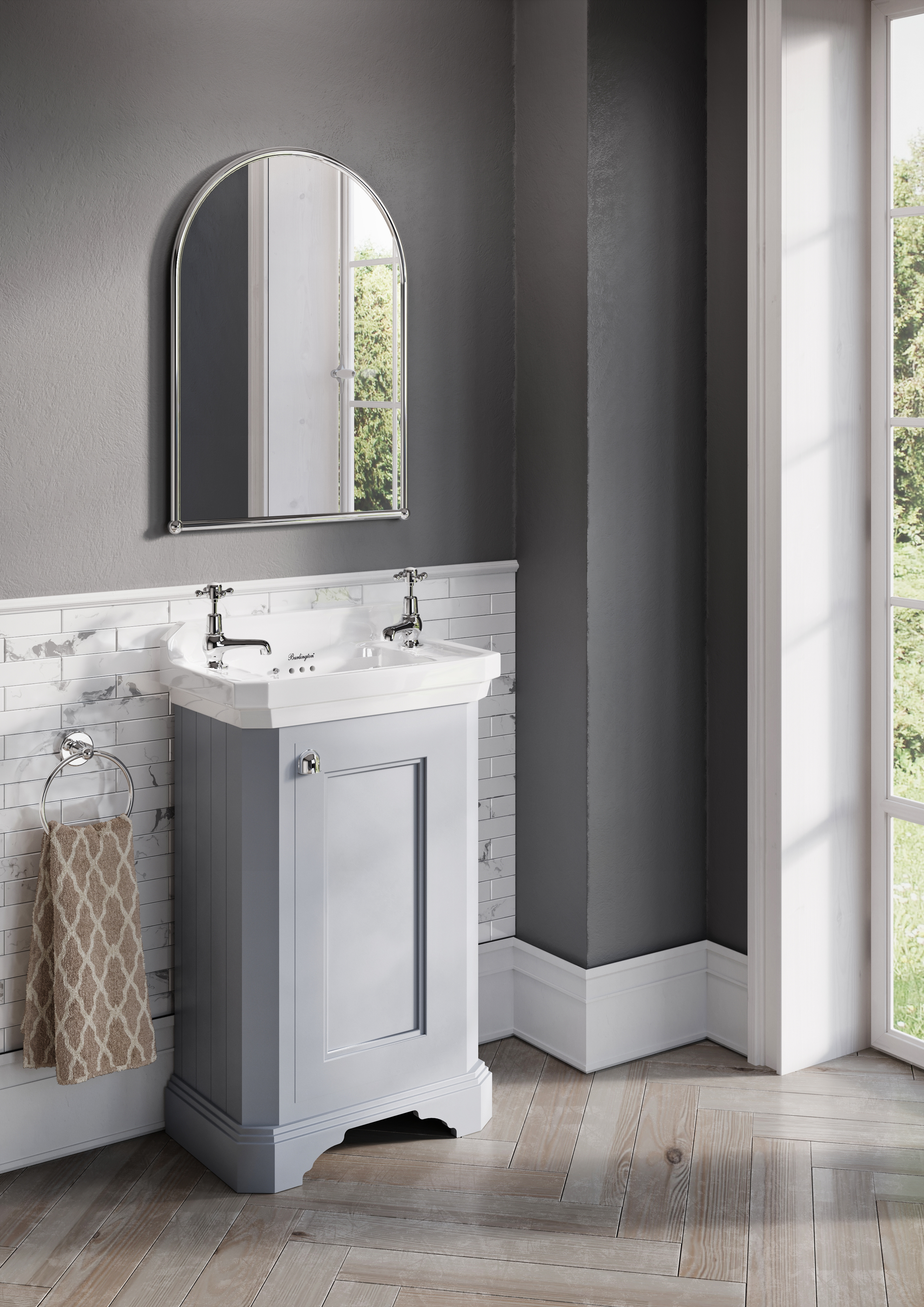

Cloakroom basin unit with door
Product Options
Finish Options
Dark Olive
|
Sand
|
Matt White
|
|
Classic Grey
|
Blue
|
Matt Green
|
As Shown
| B8 510mm Edwardian cloakroom basin 2TH |
| FC11G Burlington cloakroom basin unit with door (for B8 basin) - Grey |
Nett Weight
| B8 - basin - 10.05kg |
| FC11G - base unit - 19kg |
Gross Weight Including Packaging
| B8 - basin - 11.9kg |
| FC11G - base unit - 21kg |
Packed Dimension
| B8 - 547 x 337 x 280 = 0.0516 m3 |
| FC11G - 580 x 375 x 825 = 0.1794 m3 |
Tap Hole Options
| Available with one (1TH) or two (2TH) |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
EN14749:2016 |
|
BS EN 14688:2015 |
Additional Information
|
Please note that when ordering the basin in a 2TH option it will be supplied with a small chain stay hole for the plug and chain |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf. |
| SP1361 | door panel for FC11G |
| SP1198 | glass shelf for FC11 |
| SP1078 | plinth of FC11G |
| SP86 | wall brackets for cloakroom basins |
Downloads
- Instructions - PDF - B8 (English)
- Instructions - PDF - FC11G (English)
- Instructions - PDF - B8 (French)
- Instructions - PDF - FC11G (French)
-
2D CAD-File - DWG -
B8 FC11G
(B8 FC11W_LD.dwg)
-

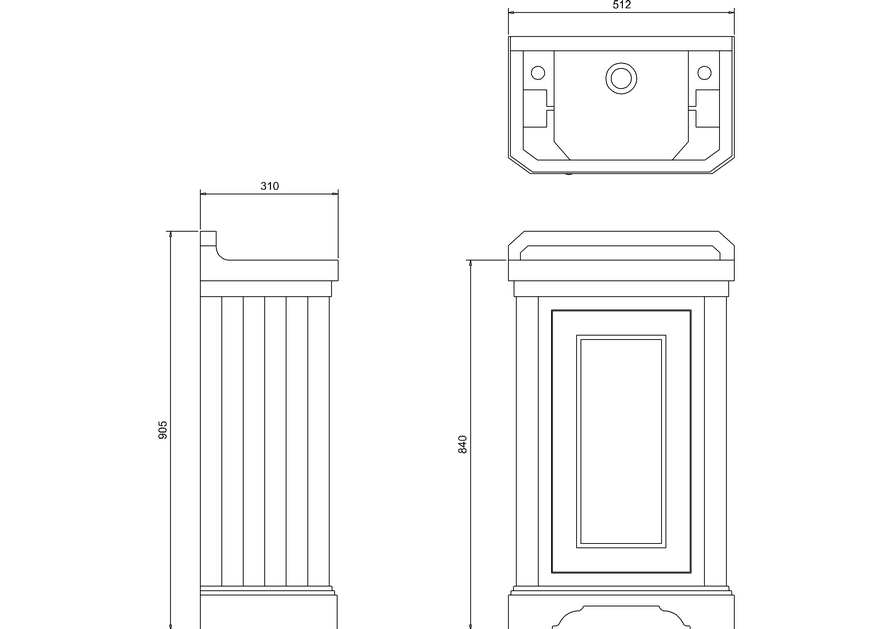

2D Drawing - PDF -
B8 FC11G
(B8 FC11W_LD.pdf)
2D Drawing - PDF - B8 FC11G
-
3D DWG - File - DWG
-
B8 FC11G
(100037.dwg)
-
3D DXF - File - DXF
-
B8 FC11G
(100037.dxf)
-
3D IGS - File - IGS
-
B8 FC11G
(100037.igs)
-
3D RFA BIMM Objects - File - RFA
-
B8 FC11G
(100037.rfa)
