Standard S trap Close Coupled WC

Product Options

WC options

with lever flush 52cm wide cistern C1

with lever flush 44cm wide cistern C3

S trap CC WC with 520 front push button cistern

with push button flush 52cm wide cistern C2

S trap CC WC with 440 front push button cistern

with push button flush 44cm wide cistern C4

S trap CC WC with 520 rear entry lever cistern

with lever flush 52cm wide extended depth cistern C30

As Shown

P18 Burlington close coupled S trap pan

C2 510mm close coupled/low level front button cistern

S18 Gloss white soft close hinge seat

Colour

P18 - pan - Gloss White

C2 - cistern - Gloss White

S18 - seat - Gloss White

Material

P18 - pan - Vitreous China

C2 - cistern - Vitreous China

S18 - seat - Urea

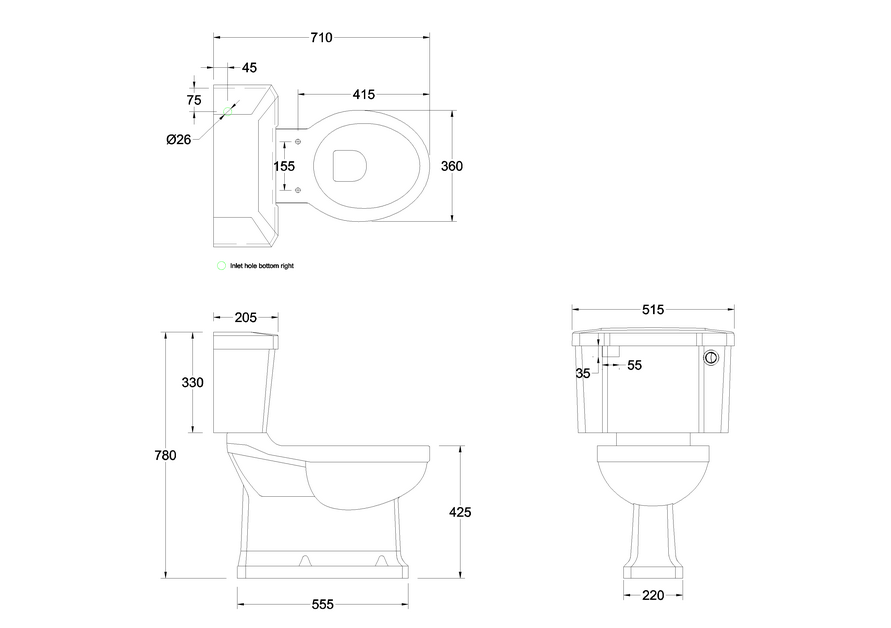

Size

P18 - 645 x 360 x 455mm

C2 - 205 x 515 x 330mm

S18 - 370 x 439 x 56mm

Nett Weight

P18 - pan - 22.1kg

C2 - cistern - 15.8kg

S18 - seat - 2.53kg

Gross Weight Including Packaging

P18 - pan - 25.42kg

C2 - cistern - 17.9kg

S18 - seat - 2.76kg

Packed Dimension

P18 - 670 x 370 x 480 = 0.119 m3

C2 - 537 x 227 x 360 = 0.0439 m3

S18 - 462 x 376 x 72 = 0.0125 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25

If the wall to soil pipe distance is 21cm, then use the combination of P18&C1/C2/C3/C4.

The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm.

The soil pipe is fully enclosed and not visible.

Water Inlet valve hole is located on the base of cistern tank on the right hand side.

Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Cistern connected to pan with internal bolts.

Close coupled wc must be used with standard Burlington toilet seats.

Spare parts

SP11	51cm Cistern Lid for C1 & C2
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP6	button Dual Flush Bottom Entry cistern fitting
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP85	cistern flush valve with control cable SP6 (excluding button and inlet valve)
SP9	cistern Push Button
SP504_2	inlet valve for Burlington close coupled cisterns
SP1022	inner box of product P18
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP17	screw fixing pack for pan and bidet
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
