Chelsea Curved Basin Mixer
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Base options
Chelsea curved basin mixer without pop up waste Standard base
Indicies & lever finish

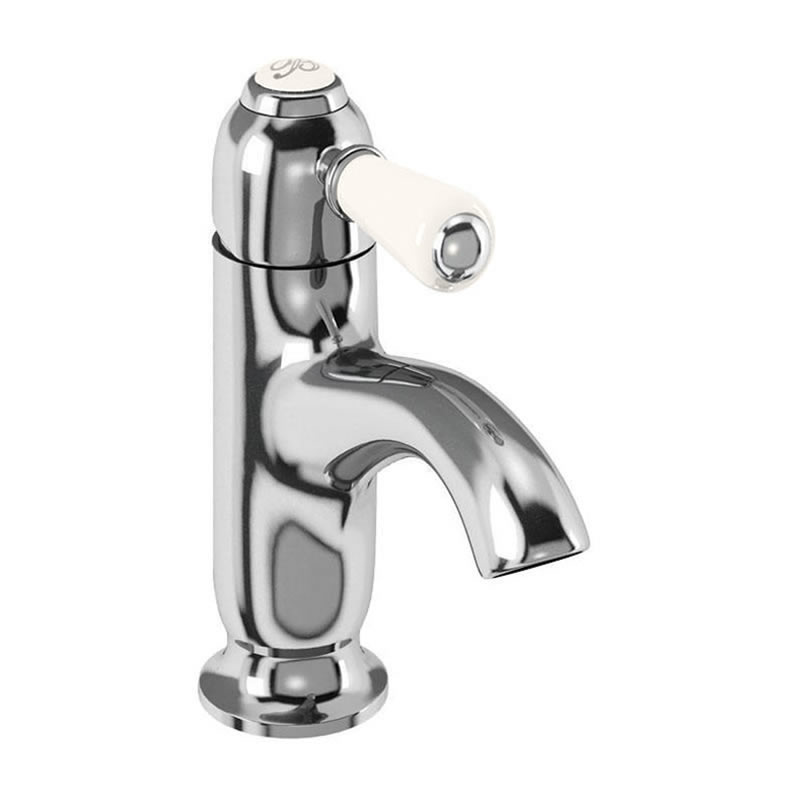

Chelsea curved basin mixer without pop up waste White Chelsea Medici Curved Basin Mixer without Pop Up Waste Medici Chelsea curved basin mixer without pop up waste Black
waste options
Chelsea curved basin mixer with pop up waste with pop-up waste Chelsea curved basin mixer without pop up waste without waste
Alternate Text
As Shown

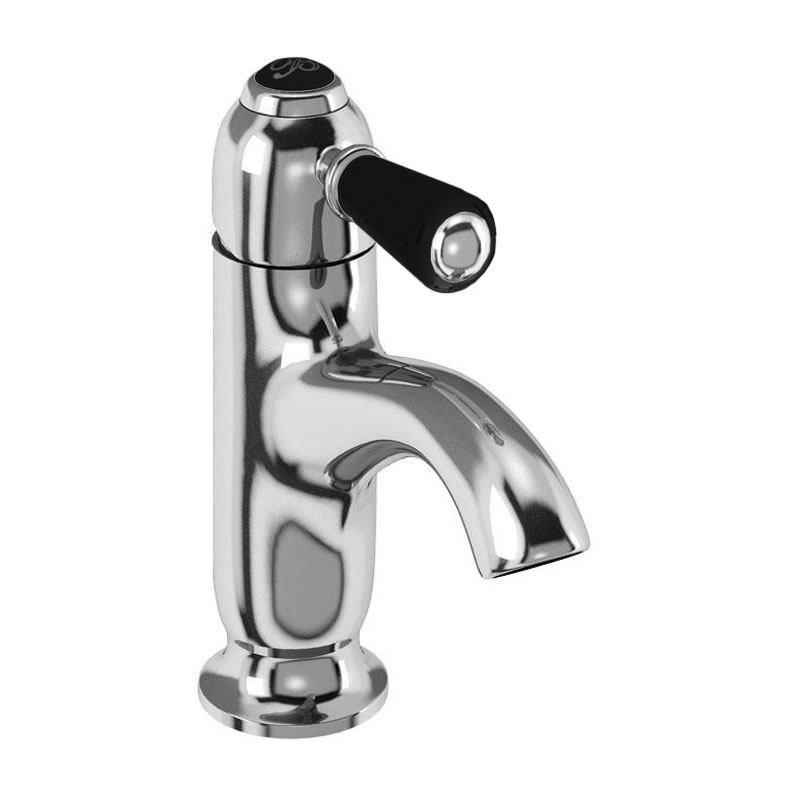

CH21 Chelsea curved basin mono tap without pop up waste
BX9 Black tap lever
CH21 BLA  -  Combined product code
Gross Weight Including Packaging
CH21 - tap - 1.34kg
BX9 - handle - 0.24kg
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
ACS Approved
Alternate Text
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 5.51  n/a  12  17.31  21.16  n/a  n/a
Spout (aerator) 3.56  n/a  7.75  10.61  13  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP47 b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25
SP1318 cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23
SP579 cartridge of product CH19, CH20, CH21, CH22, CH23
SP1309 cartridge retaining nut for CH19, CH20, CH21, CH22, CH23
SP1054 chelsea tap lever of CH19, CH20, CH21, CH22, CH23
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
