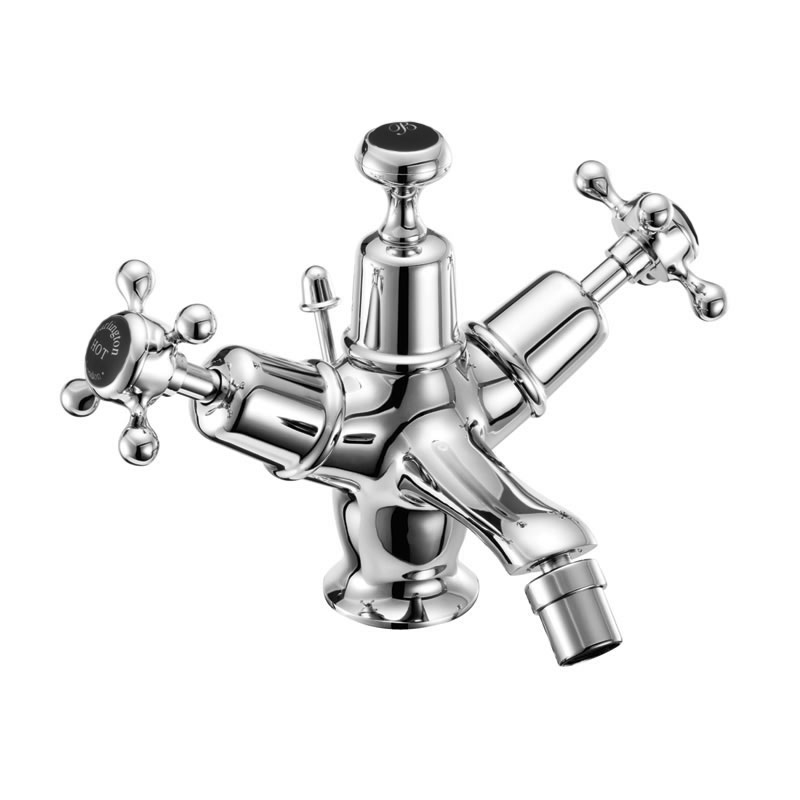

Burlington bidet mixer with high central indice with pop-up waste

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Tap Base options

Standard base

Claremont Regent bidet mixer with pop-up waste - Black

Regent base

Indicies & lever finish

White

Medici

Black

Quarter turn options

quarter turn

tradional screw-down

As Shown

T15 Bidet mixer with pop up

T1 BLA Claremont tap handles (pair) - chrome & black

BX23 Black B indice - 22mm

CL13 BLA - Combined product code

Colour

T15 - tap - Polished Chrome

T1 BLA - tap handle - Polished Chrome

BX23 - indice - Gloss Black

Material

T15 - tap - Brass

T1 BLA - tap handle - Brass

BX23 - indice - Vitreous China

Size

T15 - 147.4 x 208.5 x 152mm

T1 BLA - 65 x 65 x 28mm

BX23 - 22 x 22 x 6.3mm

Nett Weight

T15 - tap - 1.63kg

T1 BLA - tap handle - 0.15kg

BX23 - indice - 0.004kg

Gross Weight Including Packaging

T15 - tap - 2.12kg

T1 BLA - tap handle - 0.17kg

BX23 - indice - 0.02kg

Packed Dimension

T15 - 335 x 285 x 180 = 0.0172 m3

T1 BLA - 60 x 60 x 62 = 0.0002 m3

BX23 - 55 x 54 x 55 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	10.3	15.2	16.9	19.4	20.7	n/a	n/a
Spout (aerator)	3.8	5.3	7.3	8.3	10.5	n/a	n/a

Spare parts

SP1726	back bottom washer for SP28
SP817	chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP825	lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194	o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP974	plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807	pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP48	T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29	T13, T15 1, 2 full turn cartridge
SP942	tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1125	the nozzle for T15, T15-QT, CH23
SP985	top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
