Welcome to the Bathroom Brands Technical Whitebook

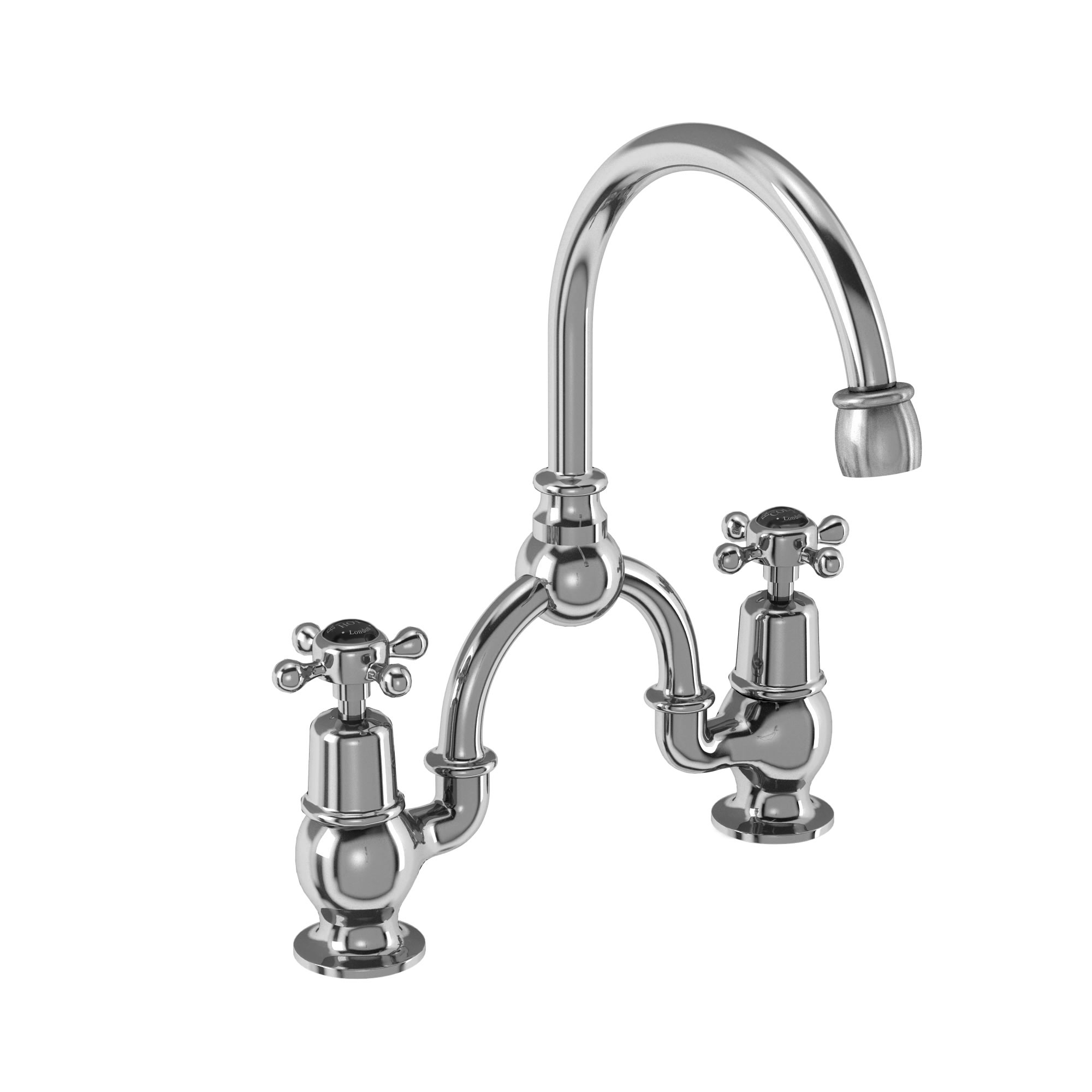

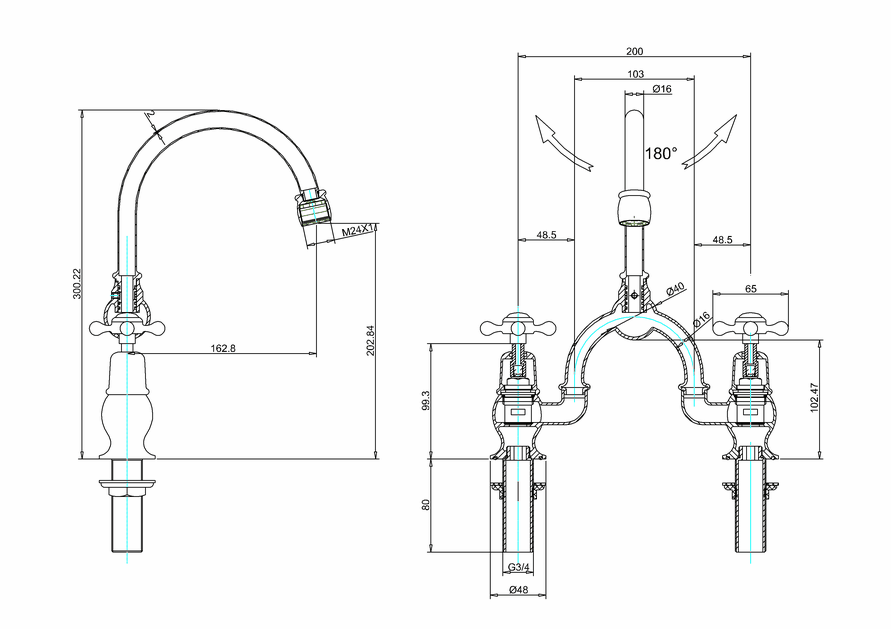

Burlington arch basin mixer with curved spout (200 mm tap centers)
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont 2 tap hole arch mixer with curved spout (200mm centres) Anglesey 2 tap hole arch mixer with curved spout (200mm centres) Birkenhead
Quarter turn options
2 tap hole arch mixer with curved spout  (200mm centres) quarter turn full_done.jpg tradional screw-down
Tap Base options
2 tap hole arch mixer with curved spout  (200mm centres) Standard base 2 tap hole arch mixer with curved spout (200mm centres) Regent base
Indicies & lever finish
2 tap hole arch mixer with curved spout  (200mm centres) White Claremont Medici 2 tap hole arch mixer with curved spout  (200mm centres) Medici 2 tap hole arch mixer with curved spout  (200mm centres) Black
Alternate Text
As Shown
T24 Arch mixer with curved spout 2TH
T1 BLA Claremont tap handles (pair) - chrome & black
CL27 BLA  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Supplied without a basin waste
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.5  16.5  23.32  33  41.9  n/a  n/a
Spout (aerator) 4.5  7.5  10.2  15  18.32  n/a  n/a
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP27 T9, T24, T25 3, 4 full turn cartridge
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
