Trafalgar radiator
Product Options
Radiator Options
White & Chrome
|
Black & Chrome
|
White & Nickel
|
White & Gold
|
White & Brushed Nickel
|
As Shown

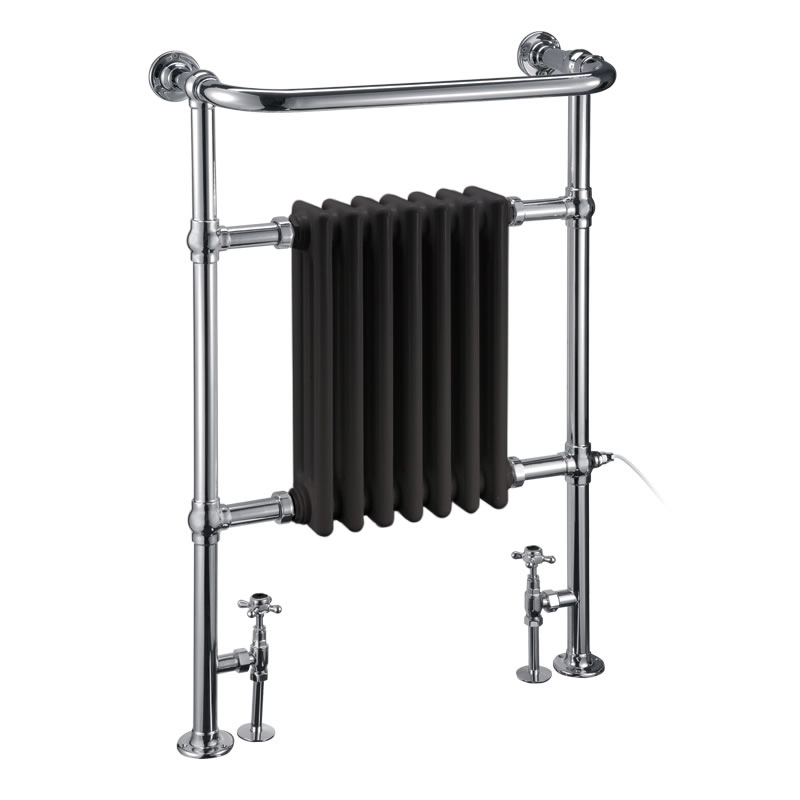

| R1CHRBLA Trafalgar - Chrome with Black Insert |
| R1 CHR BLA - Combined product code |
Material
| R1CHRBLA - radiator - Steel |
Nett Weight
| R1CHRBLA - radiator - 16.58kg |
Gross Weight Including Packaging
| R1CHRBLA - radiator - 17.58kg |
Packed Dimension
| R1CHRBLA - 980 x 670 x 130 = 0.0854 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN442-2:2015 |
|
BS EN248:2002 |
Additional Information
|
Distance from wall to the rail is 110mm. |
|
Diameter of tubes is 32mm. |
|
Fill the radiator approximately 90% (6.5) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
|
Includes all brackets and fixings. |
|
High quality chrome plated finish. |
|
Output:2047 BTUs/475 watts (△T=50℃) |
|
Valves are required. These are not included. |
|
Designed to be plumbed into your central heating system. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
|
420mm plumbing pipe centers |
|
for technical information on the summer heating kit please refer to the summer heating kit section |
Compatible Products
| BUR10 - 300W Summer electric heating kit for Trafalgar |
| R6 CHR BLA - Angled radiator valves black |
| SP801 | air valve for Burlington radiators |
| SP621 | black washer for R1 CHR, R2 CHR, R1 CHR BLA, R2 CHR BLA, R1 GOLD, R2 GOLD |
| SP137 | complete set of brackets, fixings for R1 CHR, R2 CHR, R4 CHR |
Downloads
-
2D CAD-File - DWG -
R1 CHR BLA
(R1_Trafalgar_20210802.dwg)
-
2D Drawing - PDF -
R1 CHR BLA
(R1_Trafalgar_20210802.pdf)
2D Drawing - PDF - R1 CHR BLA
-
3D DWG - File - DWG
-
R1 CHR BLA
(R1.dwg)
-
3D DXF - File - DXF
-
R1 CHR BLA
(R1.dxf)
-
3D IGS - File - IGS
-
R1 CHR BLA
(R1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R1 CHR BLA
(R1.rfa)
