Edwardian 560mm basin and free-standing rectangular cloakroom vanity unit
Product Options
Finish Options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
As Shown
| FC12S Burlington Edwardian basin unit with door (for B4 basin) - Sand |
| B43TH Edwardian 56cm basin three tap holes |
Nett Weight
| FC12S - base unit - 24kg |
| B43TH - basin - 18.2kg |
Gross Weight Including Packaging
| FC12S - base unit - 26kg |
| B43TH - basin - 20.8kg |
Packed Dimension
| FC12S - 620 x 525 x 805 = 0.262 m3 |
| B43TH - 577 x 487 x 290 = 0.0815 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
EN14749:2016 |
|
BS EN 14688:2015 |
Additional Information
|
Please note that when ordering the basin in a 2TH option it will be supplied with a small chain stay hole for the plug and chain |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf. |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP1281 | door panel for FC12S |
| SP1372 | plinth for FC12S |
Downloads
-
2D CAD-File - DWG -
FC12S B4
(FC12S B4_LD.dwg)
-

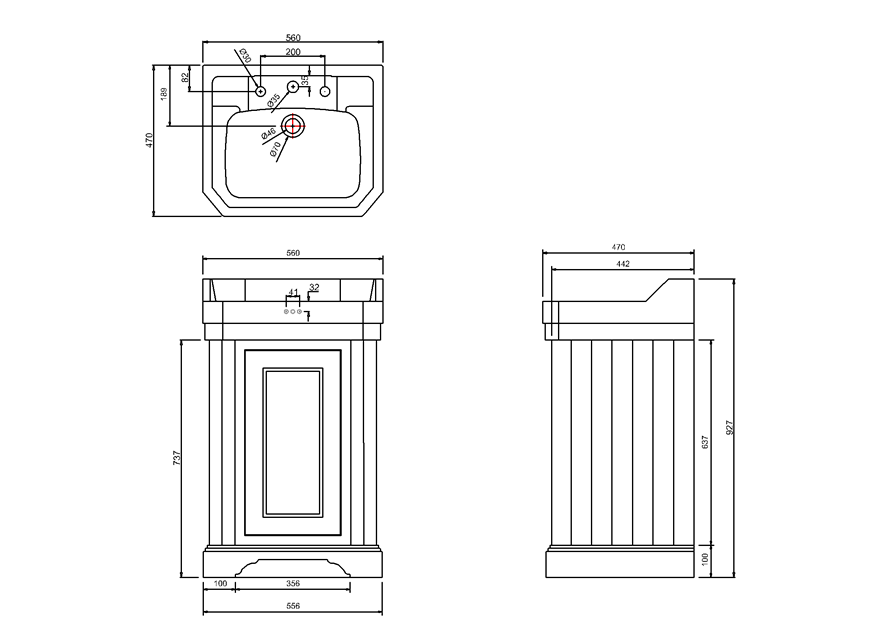

2D Drawing - PDF -
FC12S B4
(FC12S B4_LD.pdf)
2D Drawing - PDF - FC12S B4
-
3D IGS - File - IGS
-
FC12S B4
(fc12_B4.igs)
-
3D DWG - File - DWG
-
FC12S B4
(fc12_B4.dwg)
-
3D RFA BIMM Objects - File - RFA
-
FC12S B4
(fc12_B4.rfa)
