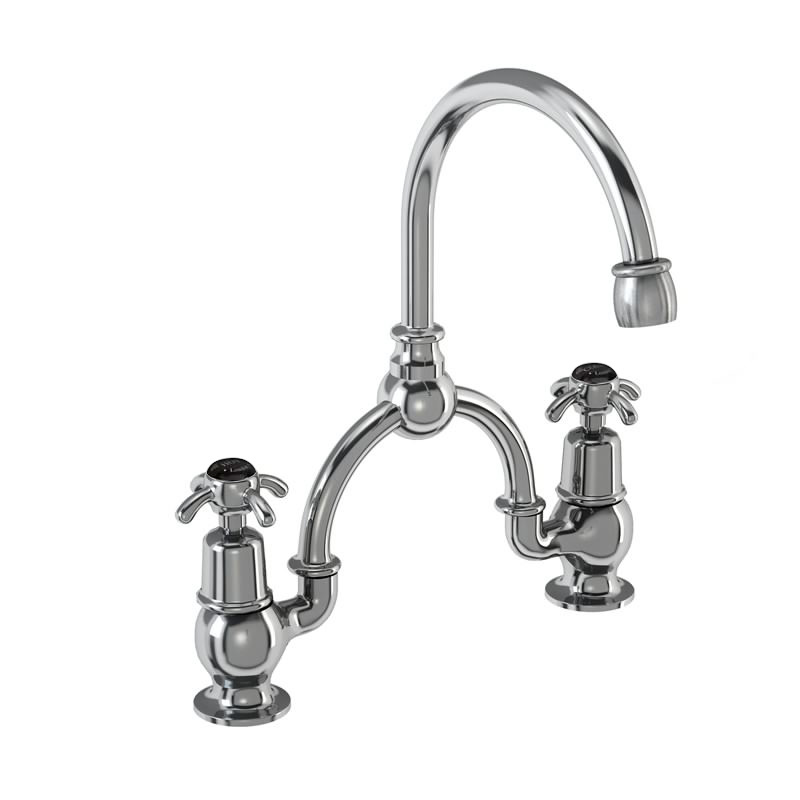

Burlington arch basin mixer with curved spout (230 mm tap centers)
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
2 tap hole arch mixer with curved spout (230mm centres) Claremont AngleseyTapHead.jpg Anglesey 2 tap hole arch mixer with curved spout (230mm centres) Birkenhead
Quarter turn options
2 tap hole arch mixer with curved spout (230mm centres) quarter turn full_done.jpg tradional screw-down
Tap Base options

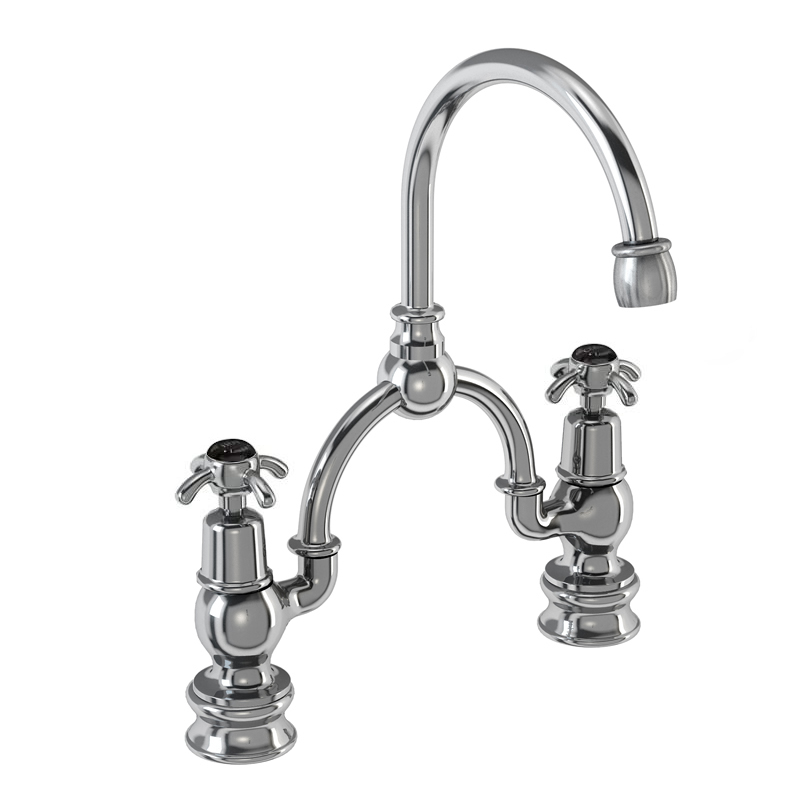

2 tap hole arch mixer with curved spout (230mm centres) Standard base 2 tap hole arch mixer with curved spout (230mm centres) Regent base
Indicies & lever finish
2 tap hole arch mixer with curved spout (230mm centres) White Anglesey Medici 2 tap hole arch mixer with curved spout (230mm centres) Medici 2 tap hole arch mixer with curved spout (230mm centres) Black
Alternate Text
As Shown
T25 −
T2 −
AN28 BLA  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
This Tap is for fitting to classic basins with invisible overflow B14, B16
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.3  16.28  23  33.3  41.8  n/a  n/a
Spout (aerator) 4.7  7.3  10.5  15.1  18.56  n/a  n/a
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27 T9, T24, T25 3, 4 full turn cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T25 (English)
  • Instructions - PDF - (French)
  • 3D RFA BIMM Objects - File - RFA  -  AN28 BLA (T25_T2.rfa)
  • Product image 1 - jpg
  • Product image 2 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
