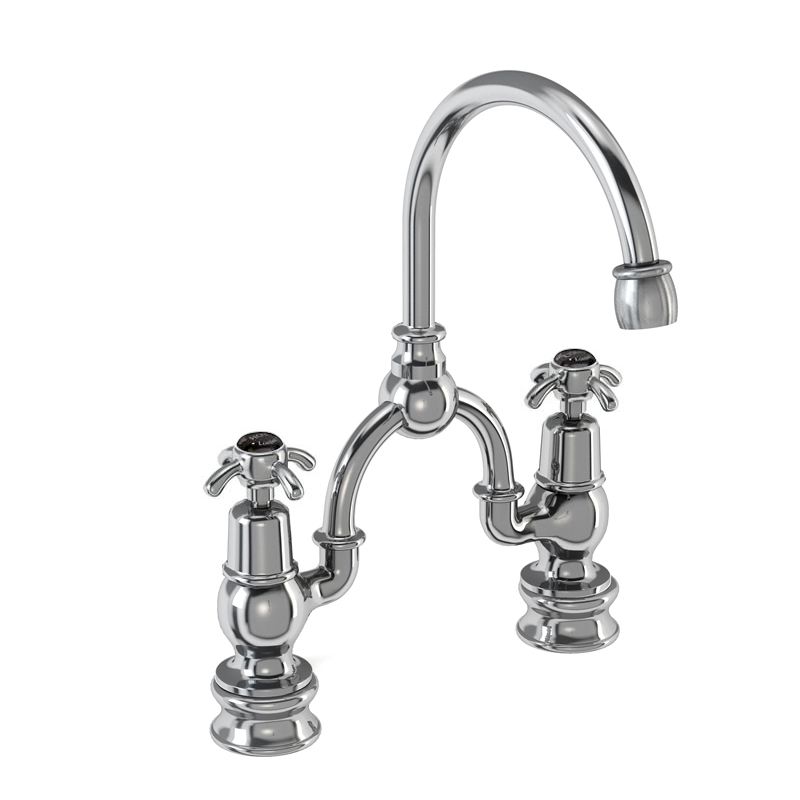

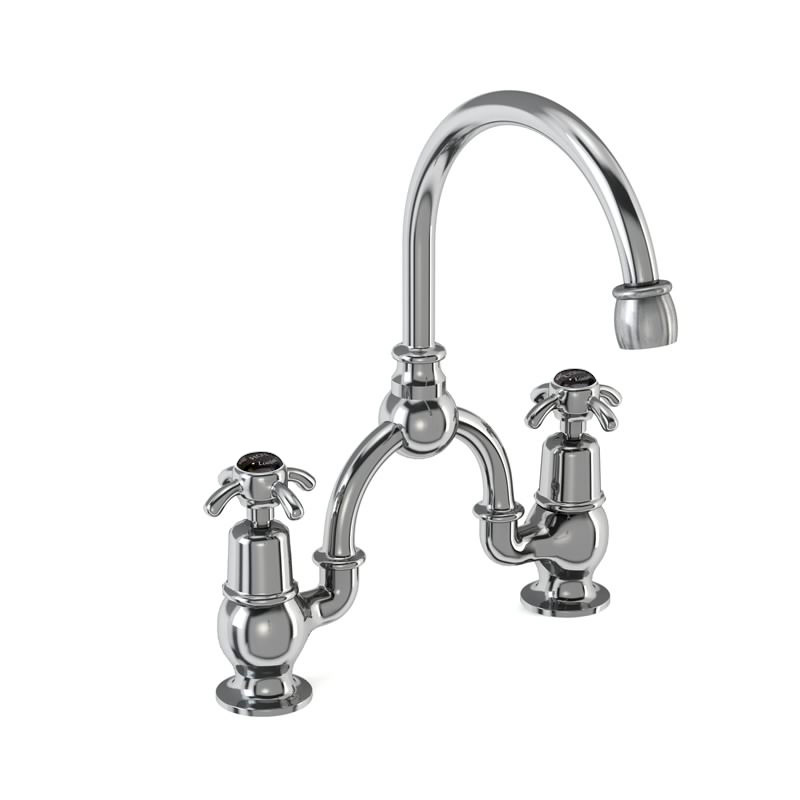

Burlington arch basin mixer with curved spout (200 mm tap centers)
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|

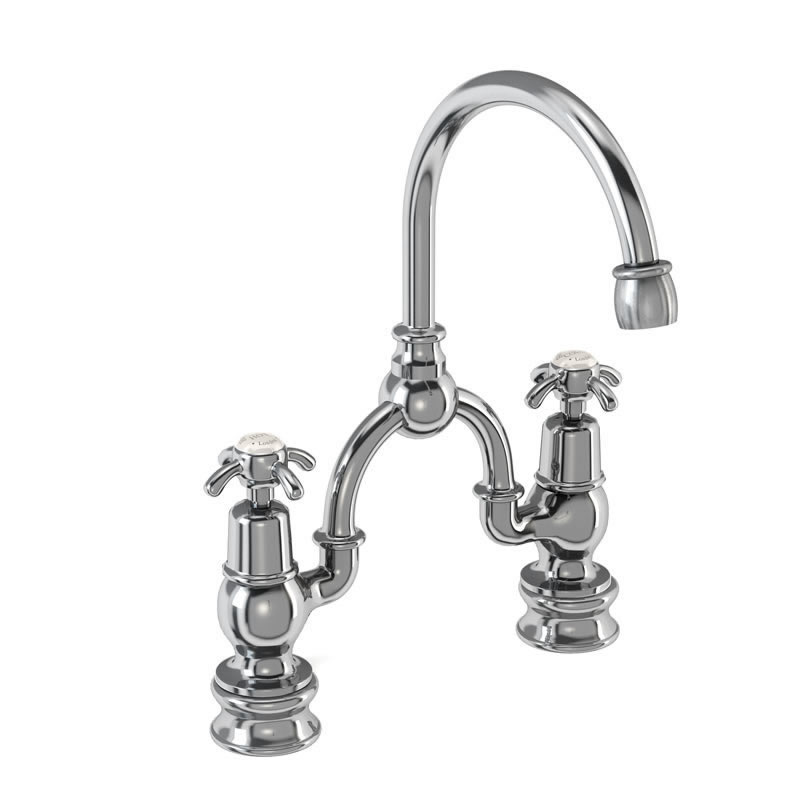

Medici
|
Black
|
As Shown
| T24 Arch mixer with curved spout 2TH |
| T2 Anglesey tap handles |
| T4B Regent small single tap base |
| BX8 Black hot/cold tap indices |
| ANR27 BLA - Combined product code |
Colour
| T24 - tap - Polished Chrome |
| T2 - tap handle - Polished Chrome |
| T4B - regent tap base - Polished Chrome |
| BX8 - indice - Gloss Black |
Material
| T24 - tap - Brass |
| T2 - tap handle - Brass |
| T4B - regent tap base - Brass |
| BX8 - indice - Vitreous China |
Nett Weight
| T24 - tap - 1.765kg |
| T2 - tap handle - 0.16kg |
| T4B - regent tap base - 0.3kg |
| BX8 - indice - 0.008kg |
Gross Weight Including Packaging
| T24 - tap - 2.21kg |
| T2 - tap handle - 0.18kg |
| T4B - regent tap base - 0.42kg |
| BX8 - indice - 0.02kg |
Packed Dimension
| T24 - 430 x 305 x 55 = 0.0072 m3 |
| T2 - 52 x 52 x 65 = 0.0002 m3 |
| T4B - 65 x 65 x 35 = 0.0001 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Supplied with Aaerator - this is for use with high water pressure |
|
Supplied without a basin waste |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 10.5 | 16.5 | 23.32 | 33 | 41.9 | n/a | n/a |
| Spout (aerator) | 4.5 | 7.5 | 10.2 | 15 | 18.32 | n/a | n/a |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP1006 | o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP27 | T9, T24, T25 3, 4 full turn cartridge |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
Downloads
-

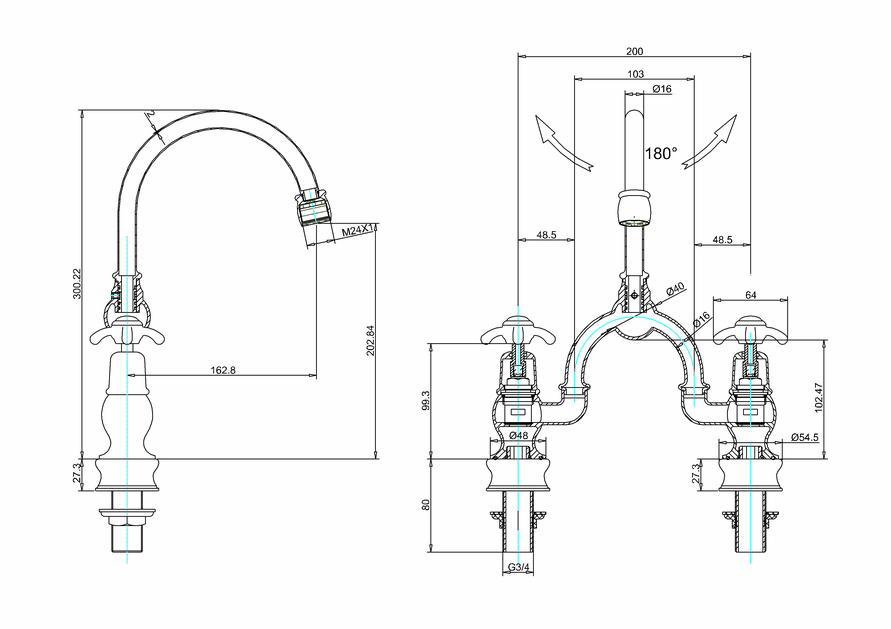

2D CAD-File - DWG -
