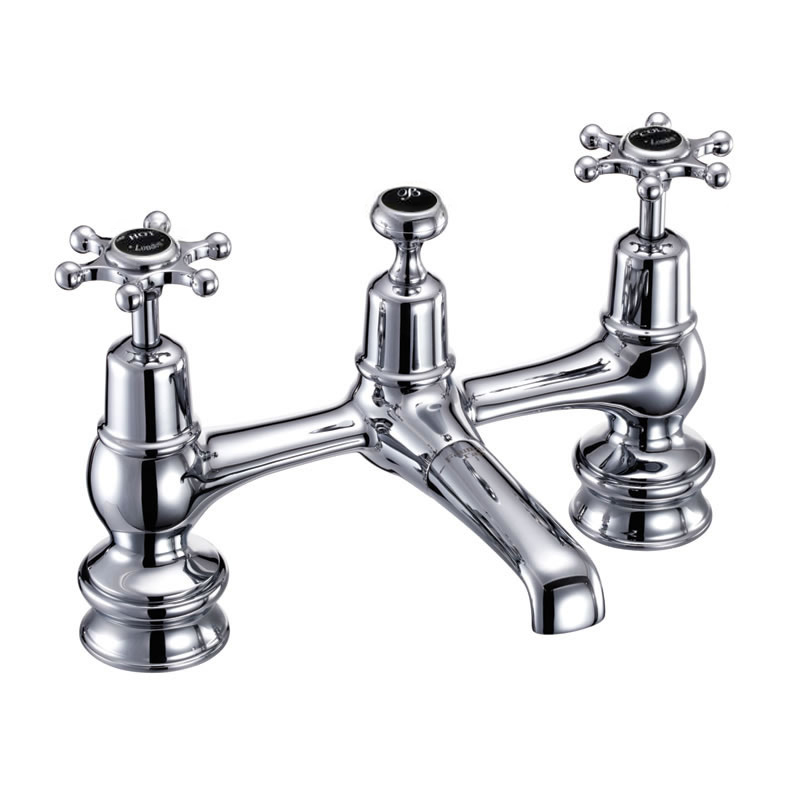

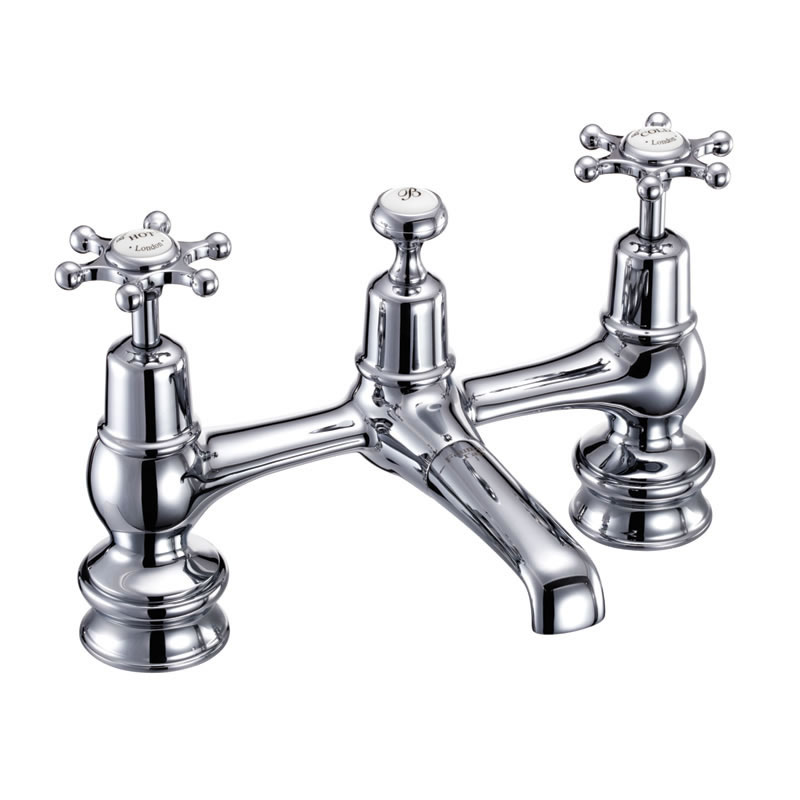

Burlington bridge basin mixer with high central indice & plug and chain waste with swivel spout
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T16 Bridge basin mixer with plug & chain waste |
| T3 Birkenhead tap handles |
| T4B_2 Regent small pair of tap bases |
| BX23 Black B indice - 22mm |
| BX8 Black hot/cold tap indices |
| BIR10 BLA - Combined product code |
Colour
| T16 - tap - Polished Chrome |
| T3 - tap handle - Polished Chrome |
| T4B_2 - regent tap base - Polished Chrome |
| BX23 - indice - Gloss Black |
| BX8 - indice - Gloss Black |
Material
| T16 - tap - Brass |
| T3 - tap handle - Brass |
| T4B_2 - regent tap base - Brass |
| BX23 - indice - Vitreous China |
| BX8 - indice - Vitreous China |
Size
| T16 - 150 x 244 x 219mm |
| T3 - 65 x 65 x 23.3mm |
| T4B_2 - 55 x 155 x 29mm |
| BX23 - 22 x 22 x 6.3mm |
| BX8 - 21.4 x 21.4 x 5.6mm |
Nett Weight
| T16 - tap - 1.97kg |
| T3 - tap handle - 0.175kg |
| T4B_2 - regent tap base - 0.38kg |
| BX23 - indice - 0.004kg |
| BX8 - indice - 0.008kg |
Gross Weight Including Packaging
| T16 - tap - 2.69kg |
| T3 - tap handle - 0.2kg |
| T4B_2 - regent tap base - 0.48kg |
| BX23 - indice - 0.02kg |
| BX8 - indice - 0.02kg |
Packed Dimension
| T16 - 250 x 210 x 160 = 0.0084 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
| T4B_2 - 70 x 65 x 65 = 0.0003 m3 |
| BX23 - 55 x 54 x 55 = 0.0002 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
Supplied with a plug & chain waste. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 10.1 | 16.9 | 18.1 | 20.5 | 23.7 | n/a | n/a |
| Spout (aerator) | 1.8 | 2.7 | 3 | 3.6 | 3.6 | n/a | n/a |
| SP882 | aerator for product T16, T16-QT |
| SP1726 | back bottom washer for SP28 |
| SP1189 | black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1 |
| SP1235 | chain for T13, T13-QT, T16, T16-QT, W1 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP91 | G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT |
| SP451 | key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT |
| SP884 | plug (including the chain, stud and nut) of product W1, T16, T16-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP48 | T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm) |
| SP28 | T5, T6, T7, T16 1, 2 full turn cartridge |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1103 | the grate for the W1, T16, T16-QT, T13, T13-QT |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
| SP985 | top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT |
Downloads
-
2D CAD-File - DWG -
BIR10 BLA
(BIR10_LD.dwg)
-
2D Drawing - PDF -
BIR10 BLA
(BIR10_LD.pdf)
2D Drawing - PDF - BIR10 BLA
-
3D RFA BIMM Objects - File - RFA
-
BIR10 BLA
(T16_T3_T4B-2.rfa)
- 3D DWG - File - DWG - T16 (T16.dwg)
- 3D DXF - File - DXF - T16 (T16.dxf)
- 3D IGS - File - IGS - T16 (T16.igs)
- 3D DWG - File - DWG - T4B_2 (T4B-2.dwg)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D DXF - File - DXF - T4B_2 (T4B-2.dxf)
- 3D IGS - File - IGS - T4B_2 (T4B-2.igs)
