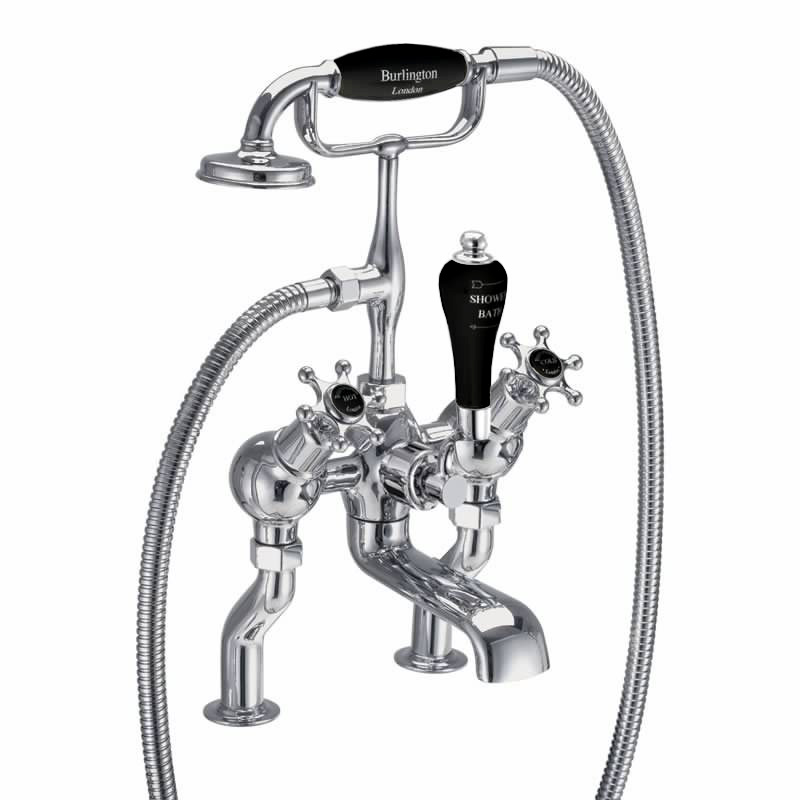

Burlington angled bath shower mixer deck mounted with S adjuster

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Standard base

Birkenhead Regent angled bath shower mixer - deck mounted

Regent base

Indicies & lever finish

White

Medici

Black

As Shown

T9 Angled bath shower mixer

T18 Deck mounting unions

T3 Birkenhead tap handles

BX8 Black hot/cold tap indices

BX11-1 Black shower handset

BX10 Black diverter handle of BSM

BI19 BLA - Combined product code

Colour

T9 - tap - Polished Chrome

T18 - accessories - Polished Chrome

T3 - tap handle - Polished Chrome

BX8 - indice - Gloss Black

BX11-1 - shower handset - Gloss Black

BX10 - handle - Gloss Black

Material

T9 - tap - Brass

T18 - accessories - Brass

T3 - tap handle - Brass

BX8 - indice - Vitreous China

BX11-1 - shower handset - Brass

BX10 - handle - Brass

Size

T9 - 157 x 236 x 139mm

T18 - 55 x 255 x 106mm

T3 - 65 x 65 x 23.3mm

BX8 - 21.4 x 21.4 x 5.6mm

BX11-1 - 72 x 65 x 207mm

BX10 - 77.5 x 38 x 163.5mm

Nett Weight

T9 - tap - 3.69kg

T18 - accessories - 0.94kg

T3 - tap handle - 0.175kg

BX8 - indice - 0.008kg

BX11-1 - shower handset - 0.36kg

BX10 - handle - 0.29kg

Gross Weight Including Packaging

T9 - tap - 4.69kg

T18 - accessories - 1.09kg

T3 - tap handle - 0.2kg

BX8 - indice - 0.02kg

BX11-1 - shower handset - 0.43kg

BX10 - handle - 0.37kg

Packed Dimension

T9 - 375 x 365 x 215 = 0.0294 m3

T18 - 235 x 150 x 60 = 0.0021 m3

T3 - 70 x 65 x 65 = 0.0003 m3

BX8 - 55 x 54 x 55 = 0.0002 m3

BX11-1 - 72 x 68 x 250 = 0.0012 m3

BX10 - 140 x 105 x 40 = 0.0006 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	22	22.6	25.2	27.2	29	n/a	n/a
Spout (aerator)	5.6	10.7	11.6	14.3	15.6	n/a	n/a
Handset	3.56	4.19	7.06	11.36	15.55	n/a	n/a

Spare parts

SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V29	burlington Ceramic telephone handset
V26	burlington Shower hose 1500mm
SP1209	ceramic handle for Burlington telephone handset
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771	cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557	cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP191	diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378	diverter handle for T8, T8-QT, T9, T9-QT
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1480	inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006	o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP200	part B for T8, T9 diverter
SP317	s Adjustor for T8, T8-QT, T9, T9-QT
SP1072	set of parts used to connect the T8 BSM diverter and cross handle
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27	T9, T24, T25 3, 4 full turn cartridge
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
