ClearLine Baths - Sustain baths
Product Options
Sustain bath size options
1600 x 700mm
|
1700 x 700mm
|
1700 x 750mm
|
1800 x 800mm
|
As Shown
| R7N Sustain 180cm x 80cm Clearline |
Colour
| R7N - bath - Gloss White |
Material
| R7N - bath - Acrylic |
Nett Weight
| R7N - bath - 26kg |
Gross Weight Including Packaging
| R7N - bath - 27kg |
Packed Dimension
| R7N - 1810 x 810 x 425 = 0.6231 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R26F - Front bath panel 1800 |
| R29E - End bath panel 800 |
| CW8 - Click-clack bath waste |
| SP1173 | leg sets for Sustain, Verde, Viride offset baths, Clearline |
Downloads
-

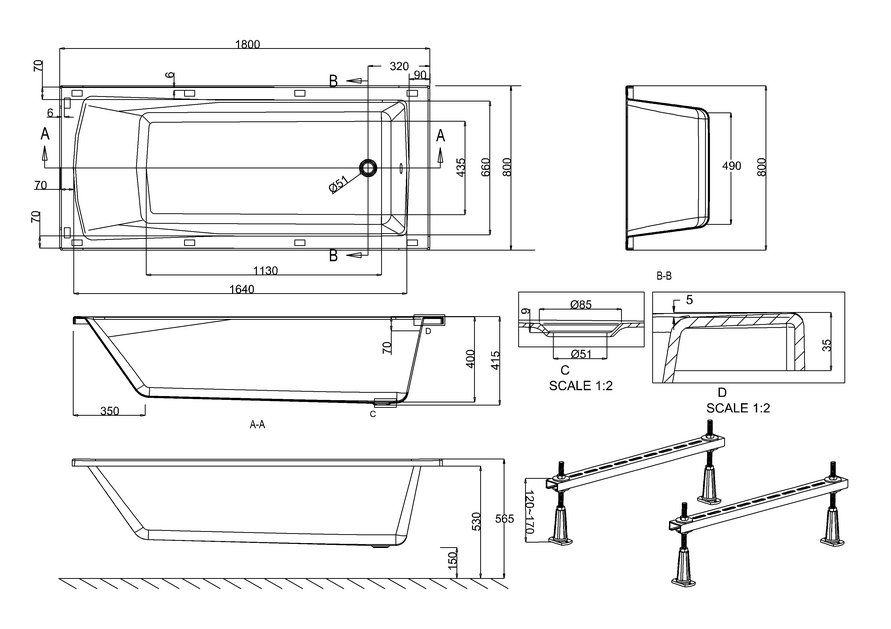

2D CAD-File - DWG -
R7N
(R7N_with_leg_set.dwg)
-
2D Drawing - PDF -
R7N
(R7N_with_leg_set.pdf)
2D Drawing - PDF - R7N
-
3D DWG - File - DWG
-
R7N
(BSA-1802HWC_1.dwg)
-
3D DXF - File - DXF
-
R7N
(BSA-1802HWC_1.dxf)
-
3D IGS - File - IGS
-
R7N
(BSA-1802HWC_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R7N
(R7.rfa)
