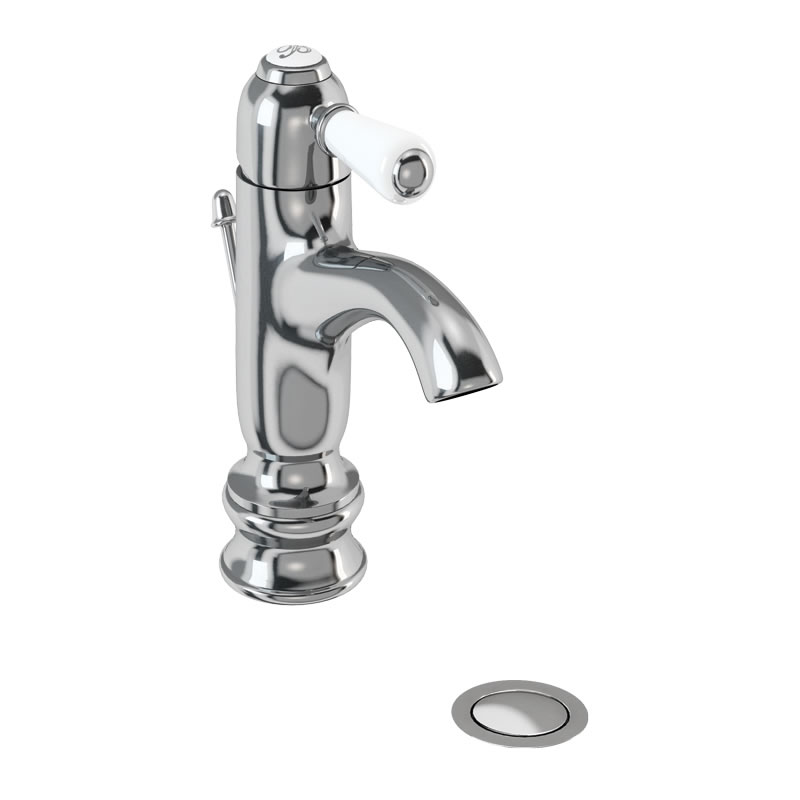

Chelsea Curved Basin Mixer

Product Options

Tap Base options

Chelsea Medici Curved Basin Mixer with Pop Up Waste

Standard base

Chelsea Medici Regent curved basin mono tap with pop up waste

Regent base

Indicies & lever finish

Chelsea curved basin mixer with pop up waste

White

Medici

Black

waste options

with pop-up waste

Chelsea Medici Curved Basin Mixer without Pop Up Waste

without waste

As Shown

CH22 Chelsea curved basin mono tap with pop up waste

ME9 Medici tap lever

ME14 Medici B indice - 21mm

CH22 MED - Combined product code

Colour

CH22 - tap - Polished Chrome

ME9 - handle - chrome

ME14 - indice - medici

Material

CH22 - tap - Brass

ME9 - handle - brass

ME14 - indice - ceramic

Size

CH22 - 144 x 48 x 160mm

ME9 - 111.5 x 43 x 43.5mm

ME14 - 21 x 21 x 6.3mm

Nett Weight

CH22 - tap - 1.53kg

ME9 - handle - 0.22kg

ME14 - indice - 0.004kg

Gross Weight Including Packaging

CH22 - tap - 1.82kg

ME9 - handle - 0.3kg

ME14 - indice - 0.02kg

Packed Dimension

CH22 - 310 x 245 x 75 = 0.0057 m3

ME9 - 110 x 65 x 45 = 0.0003 m3

ME14 - 55 x 54 x 55 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

ACS Approved

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	5.51	n/a	12	17.31	21.16	n/a	n/a
Spout (aerator)	3.56	n/a	7.75	10.61	13	n/a	n/a

Spare parts

SP47	b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25
SP1318	cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23
SP579	cartridge of product CH19, CH20, CH21, CH22, CH23
SP1309	cartridge retaining nut for CH19, CH20, CH21, CH22, CH23
SP1054	chelsea tap lever of CH19, CH20, CH21, CH22, CH23
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP825	lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194	o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655	pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP974	plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807	pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP942	tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
