Avon Thermostatic dual function brass valve
Product Options
shower head options
Finish Options
Indicies & lever finish
rigid riser option
6 inch
|
9 inch
|
12 inch
|
|
Chrome
|
Nickel
|
White
|
Medici
|
Black
|
Standard rigid riser
|
Extended rigid riser
|

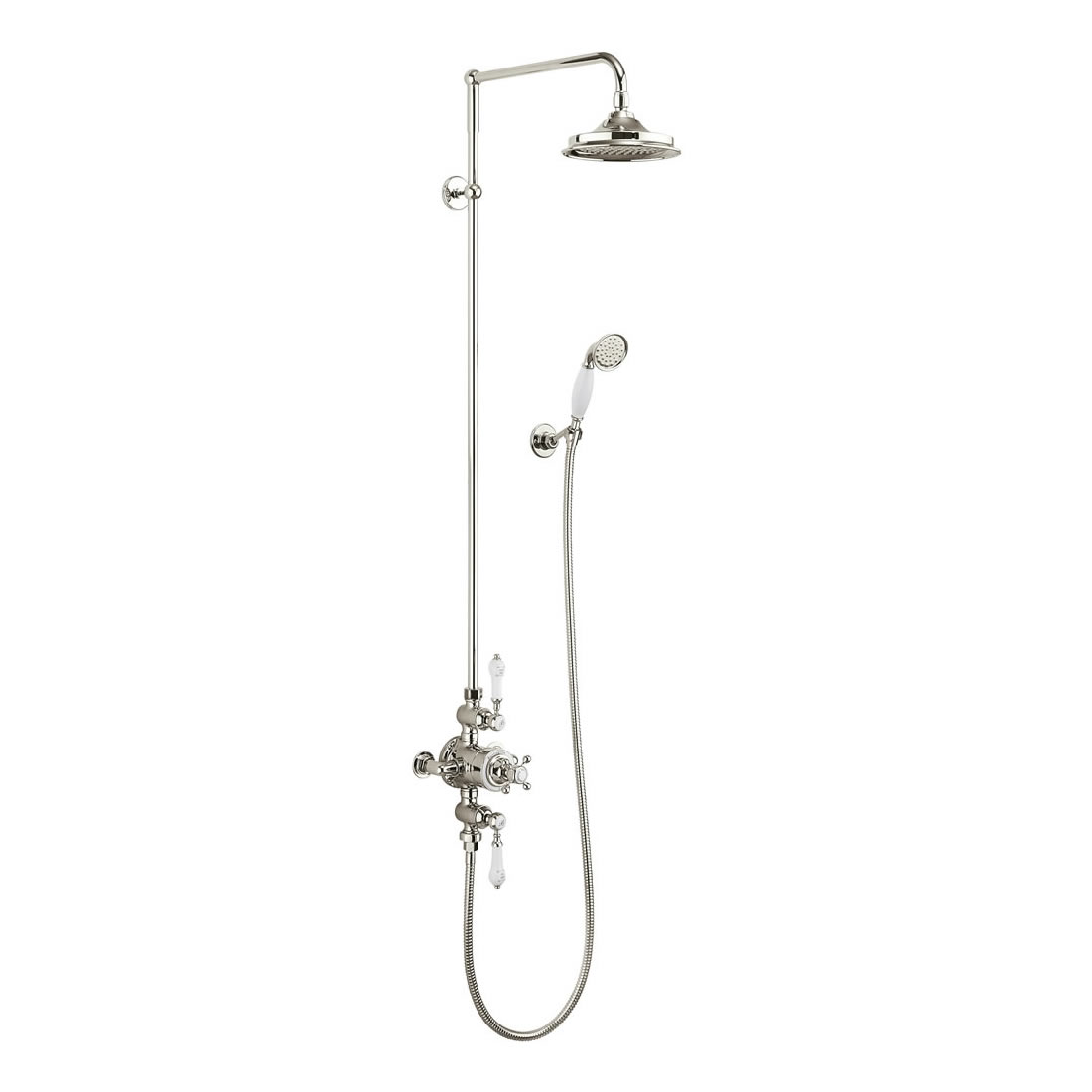

As Shown
| AF3S Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose |
| ME31 Medici kit for Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser) - chrome |
| V22 Extended vertical riser |
| V60 12 inch shower rose |
| BAF3S.EXT MED_V60 - Combined product code |
Colour
| AF3S - shower kit - Polished Chrome |
| ME31 - valve - Medici |
| V22 - riser - Polished Chrome |
| V60 - shower rose - Polished Chrome |
Material
| AF3S - shower kit - Brass |
| ME31 - valve - Brass |
| V22 - riser - Brass |
| V60 - shower rose - Brass |
Nett Weight
| AF3S - shower kit - 4.8kg |
| ME31 - valve - 0.285kg |
| V22 - riser - 1.84kg |
| V60 - shower rose - 1.67kg |
Gross Weight Including Packaging
| AF3S - shower kit - 6.7kg |
| ME31 - valve - 0.3kg |
| V22 - riser - 2.41kg |
| V60 - shower rose - 2.17kg |
Packed Dimension
| AF3S - 435 x 400 x 175 = 0.0305 m3 |
| ME31 - 110 x 70 x 70 = 0.0005 m3 |
| V22 - 1820 x 95 x 70 = 0.0121 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
V22 Extended vertical riser is available if required and can be ordered as an option |
|
Traditional brass body, Claremont handle, with ceramic levers |
|
Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle |
|
18mm diameter vertical brass shower riser |
|
355mm adjustable swivel shower arm |
|
6" AirBurst shower head (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.23 | 7.62 | 10.27 | 15.7 | 19.1 | n/a | n/a |
| 12 inch rose & handset | 7.27 | 9.85 | 15.01 | 23.71 | 30.14 | n/a | n/a |
| 6 inch rose | 4.05 | 6.39 | 8.27 | 11.55 | 14.46 | n/a | n/a |
| 6 inch rose & handset | 7.08 | 9.17 | 14.58 | 22.5 | 28.11 | n/a | n/a |
| 9 inch rose | 3.64 | 4.15 | 7 | 10.46 | 13.04 | n/a | n/a |
| 9 inch rose & handset | 6.86 | 8.34 | 14.18 | 21.93 | 26.5 | n/a | n/a |
| Handset | 3.13 | 5.92 | 8.06 | 11.55 | 14.6 | n/a | n/a |
| ACSH1 | 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB |
| SP118 | 2 x chrome dome + 2 x connection part for V25 |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP175 | back plate of product AF3S, AF1S, ARC74 CHR |
| SP593 | bottom lever (including thread) for two outlets valves (on, off indices) |
| V29 | burlington Ceramic telephone handset |
| V26 | burlington Shower hose 1500mm |
| SP958 | cartridge cap of product AF1S, AF3S |
| SP163 | ceramic B indices with Chrome for V34 and V36 |
| SP1209 | ceramic handle for Burlington telephone handset |
| V10_2 | ceramic levers for Avon & Clyde dual control valves (pair) |
| SP108 | ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4 |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| V31 | diverter with ceramic lever |
| SP553 | fixing nut & retaining ring of product AF1S, AF3S, ARC74 CHR |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP1248 | gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S |
| SP599 | grub screw (M4x4) |
| SP603 | grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S, GU422DC, GU422DG, GU422DL |
| SP37 | hent F5 flow control cartridge |
| SP36 | hent F6 flow control cartridge |
| SP994 | inner box and internal package of product AF3S |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP935 | lower water flow control section of product AF1S, AF3S |
| SP128 | metal block for ARC74 CHR, AF1S, AF3S |
| SP713 | metal part of the diverter handle of V31 with screw |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP388 | one set of hot and cold inlet elbow for V25, AF3S (including compression nut and cover plate) |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP714 | optional elbow for V25, ARC74 CHR, AF1S, AF3S (one pair) |
| SP155 | pair of cover plate for V25, AF3S, AF1S, ARC74 CHR |
| SP1310 | plastic block for all finishes products of AF1S, ARC74, V25, AF3S |
| SP1385 | retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S |
| SP997 | retaining sleeve of products AF1S, AF3S, ARC74 CHR |
| V18 | shower hook (for wall mounting of telephone shower head) |
| SP130 | single top, bottom control knob for flow of product AF1S, AF3S |
| SP601 | small grub screw (M4x4) |
| V11_1 | straight shower arm for vertical riser mounting |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP1369 | top control section for AF3S, V25, AF1S |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP32 | vernet T1 temperature control cartridge |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
| SP1293 | washer for all finishes products of ARC74, AF3S |
Downloads
- Instructions - PDF - AF3S (English)
- Instructions - PDF - V22 (English)
- Instructions - PDF - V60 (English)
- Instructions - PDF - V22 (French)
- Instructions - PDF - AF3S (French)
-
2D CAD-File - DWG -
BAF3S.EXT MED_V60
(BAF3S.EXT-V16 17 60_LD.dwg)
-
2D Drawing - PDF -
BAF3S.EXT MED_V60
(BAF3S.EXT-V16 17 60_LD.pdf)
2D Drawing - PDF - BAF3S.EXT MED_V60
-
3D RFA BIMM Objects - File - RFA
-
BAF3S.EXT MED_V60
(af3s-V60_V22.rfa)
-
3D IGS - File - IGS
-
BAF3S.EXT MED_V60
(af3s.igs)
- 3D DWG - File - DWG - AF3S (af3s.dwg)
- 3D DXF - File - DXF - AF3S (af3s.dxf)
- 3D DWG - File - DWG - V60 (V60_12_showerhead.dwg)
- 3D DXF - File - DXF - V60 (V60_12_showerhead.dxf)
- 3D IGS - File - IGS - V60 (V60_12_showerhead.igs)
- 3D IGS - File - IGS - V22 (V22.igs)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V22 (V22.rfa)
