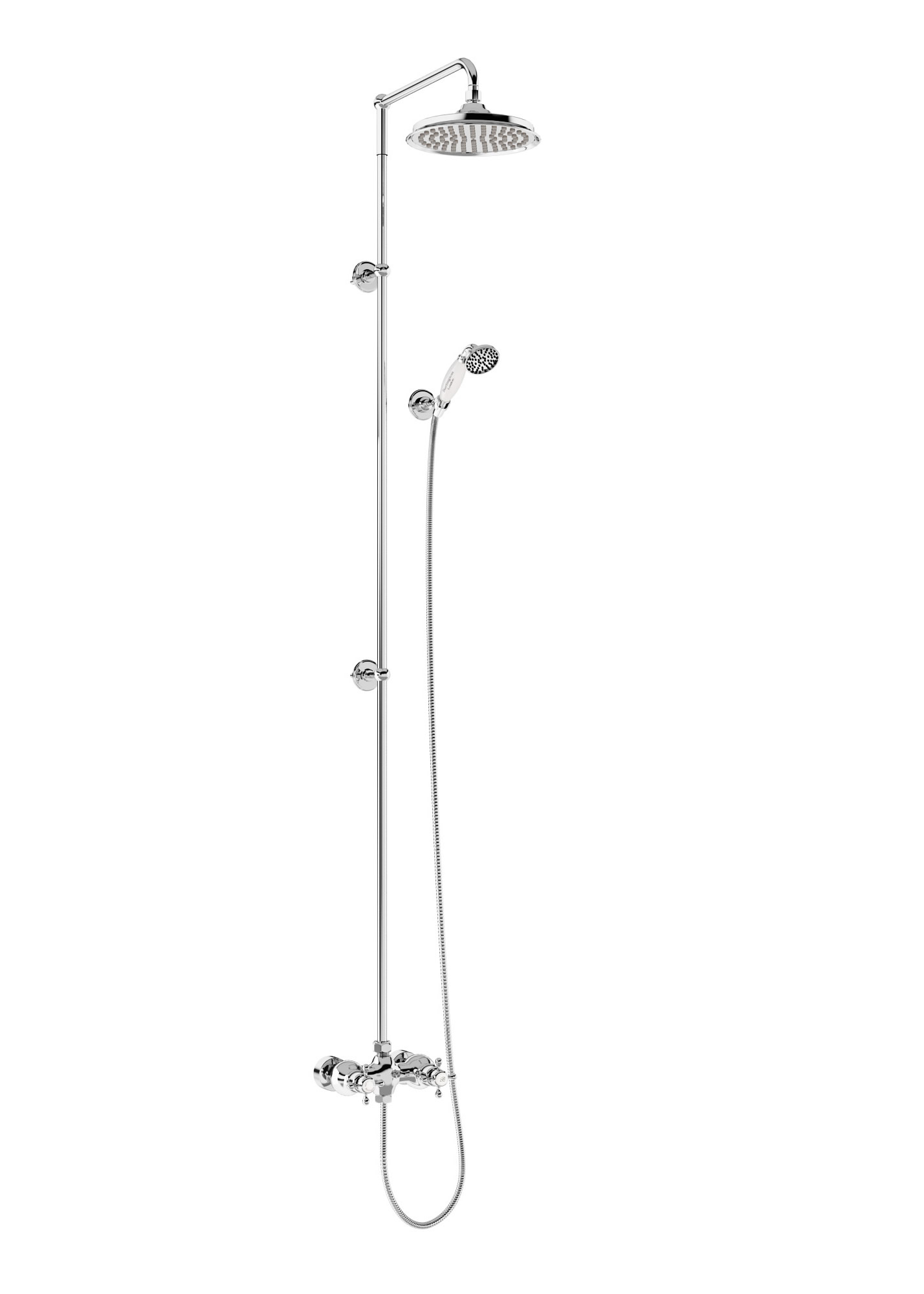

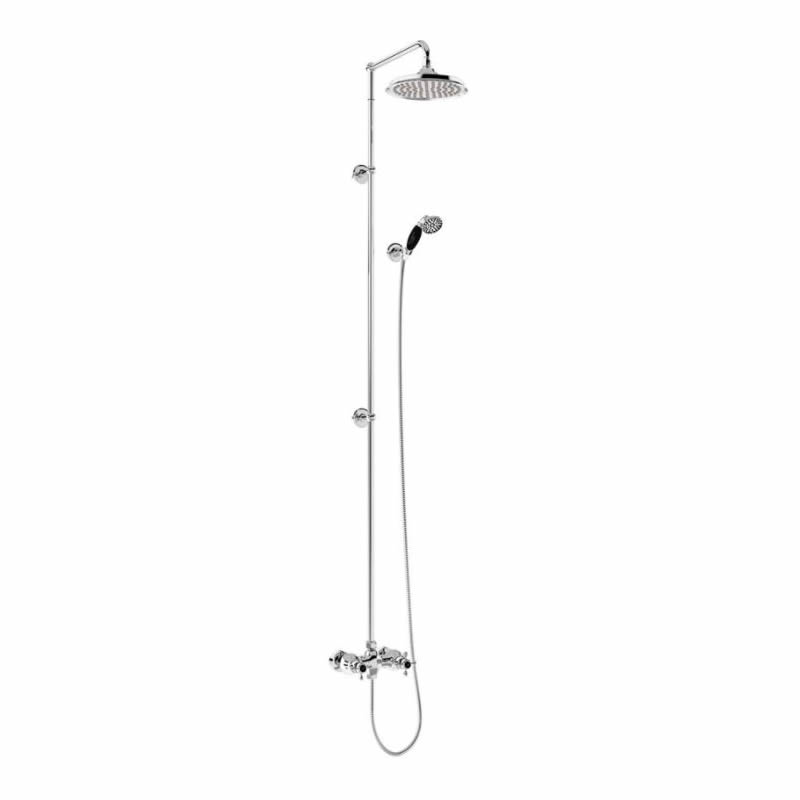

Eden Thermostatic two outlet twin control valve with extended rigid riser
Product Options
shower head options
Indicies & lever finish
6 inch
|
9 inch
|
12 inch
|
|
White
|
Medici
|
Black
|
As Shown
| EF2S Eden Thermostatic Exposed Shower Bar Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose |
| ME11-1 Medici shower handset |
| ME13 Medici shower/handset valve indice |
| ME4 Medici hot/cold valve indice |
| V22 Extended vertical riser |
| V60 12 inch shower rose |
| BEF2S.EXT MED_V60 - Combined product code |
Colour
| EF2S - valve - Polished Chrome |
| ME11-1 - shower handset - medici & chrome |
| ME13 - indice - medici |
| ME4 - indice - medici |
| V22 - riser - Polished Chrome |
| V60 - shower rose - Polished Chrome |
Material
| EF2S - valve - Brass |
| ME11-1 - shower handset - ceramic & brass |
| ME13 - indice - ceramic |
| ME4 - indice - ceramic |
| V22 - riser - Brass |
| V60 - shower rose - Brass |
Size
| EF2S - 355 x 210 x 957mm |
| ME11-1 - 72 x 65 x 207mm |
| ME13 - 53 x 52 x 53mm |
| ME4 - 25 x 25 x 6.5mm |
| V22 - 171 x 60 x 1800mm |
| V60 - 330 x 330 x 95mm |
Nett Weight
| EF2S - valve - 4.59kg |
| ME11-1 - shower handset - 0.36kg |
| ME13 - indice - 0.006kg |
| ME4 - indice - 0.006kg |
| V22 - riser - 1.84kg |
| V60 - shower rose - 1.67kg |
Gross Weight Including Packaging
| EF2S - valve - 5.85kg |
| ME11-1 - shower handset - 0.43kg |
| ME13 - indice - 0.02kg |
| ME4 - indice - 0.02kg |
| V22 - riser - 2.41kg |
| V60 - shower rose - 2.17kg |
Packed Dimension
| EF2S - 510 x 435 x 115 = 0.0255 m3 |
| ME11-1 - 72 x 68 x 250 = 0.0012 m3 |
| ME13 - 55 x 54 x 55 = 0.0002 m3 |
| ME4 - 55 x 45 x 55 = 0.0001 m3 |
| V22 - 1820 x 95 x 70 = 0.0121 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
V22 Extended vertical riser is available if required and can be ordered as an option |
|
Traditional brass body, Claremont handles, with ceramic indices |
|
Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle |
|
18mm diameter vertical brass shower riser |
|
355mm adjustable swivel shower arm |
|
Image shown is with Image shown is with 6" Airburst shower head.. |
|
The shower head has anti-limescale silicon nipples. |
|
Large bore shower hose (11mm) |
|
Hot & cold inlet ∅15mm |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 3.73 | 4.56 | 7.65 | 11.38 | 14.15 | n/a | n/a |
| 6 inch rose | 3.39 | 4.1 | 6.47 | 9.81 | 12.29 | n/a | n/a |
| 9 inch rose | 2.96 | 3.68 | 5.86 | 9.04 | 11.3 | n/a | n/a |
| Handset | 3.55 | 4.27 | 6.83 | 10.74 | 13.66 | n/a | n/a |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP376 | adaptor(pair) G1, 2 male thread to 15mm pipe |
| V29 | burlington Ceramic telephone handset |
| V26 | burlington Shower hose 1500mm |
| SP1052 | cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS |
| SP1209 | ceramic handle for Burlington telephone handset |
| SP837 | ceramic indice with texts shower-handset for product EF2S |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP599 | grub screw (M4x4) |
| SP1483 | joint cover for T2WS, EF1S, EF2S, T2WB |
| SP1783 | metal block for EF1S, EF2S, T2WB, T2WS, T2DS |
| SP726 | metal block for Trent, Severn, Eden, Spey shower valves |
| SP583 | mingshi F3 flow control cartridge |
| SP1170 | new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body |
| SP1896 | old retaining ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP1701 | one pair of connectors for EF1S, EF2S, T2WS, T2WB |
| SP1268 | one piece of wall plate for EF1S, EF2S, T2WS, T2WB |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP981 | pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB |
| SP1350 | retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS |
| V18 | shower hook (for wall mounting of telephone shower head) |
| SP601 | small grub screw (M4x4) |
| V11_1 | straight shower arm for vertical riser mounting |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP585 | VQT2 cartridge temperature control cartridge |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
| SP1735 | washers (pair) on the back of body of EF2S, EF1S, T2WS, T2DS, T2DB, T2WB |
| SP1778 | white overflow ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
