Click-Clack Basin Waste Slotted
Product Options
finish options
Chrome
|
Matt Black
|
Brushed brass
|
As Shown
| HOX.010BB Slotted Basin Waste Brushed Brass |
Material
| HOX.010BB - waste - Brass |
Nett Weight
| HOX.010BB - waste - 0.28kg |
Gross Weight Including Packaging
| HOX.010BB - waste - 0.35kg |
Packed Dimension
| HOX.010BB - 125 x 115 x 65 = 0.0009 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Press the waste to open. Press again to close. |
|
Waste tail can be cut down if required. |
|
Slotted - for basins with an overflow |
|
Hoxton wastes colour match to Hoxton taps and showers |
| SP1632 | brushed brass top plug for HOX.010BB, HOX.011BB |
| SP1593 | spring kit for HOX.013, HOX.010, HOX.011 |
| SP1634 | the seal around the plug for HOX.010, HOX.011 basin waste |
Downloads
-
2D CAD-File - DWG -
HOX.010BB
(HOX.010MB-BB.dwg)
-

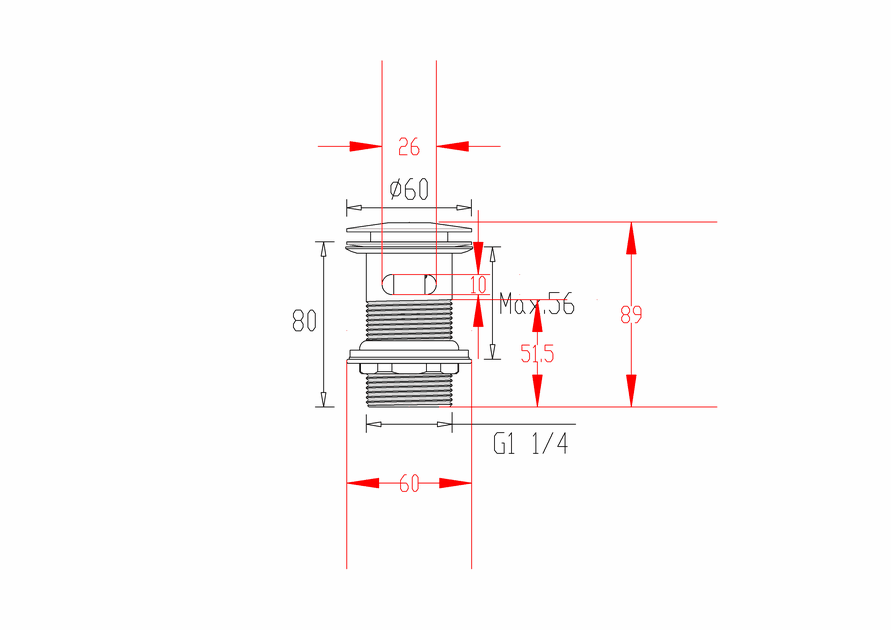

2D Drawing - PDF -
HOX.010BB
(HOX.010MB-BB.pdf)
2D Drawing - PDF - HOX.010BB
-
3D IGS - File - IGS
-
HOX.010BB
(HOX.010.igs)
-
3D RFA BIMM Objects - File - RFA
-
HOX.010BB
(HOX.010.rfa)
-
