Hoxton Thermostatic Shower Mixer with Diverter Chrome
Product Options
finish options
Chrome
|
Matt Black
|
Brushed brass
|
As Shown
| HOX005V Concealed Valve with Diverter |
| HOX.005MB Hoxton Shower Mixer with Diverter Matt Black |
| HOX.023MB - Combined product code |
Nett Weight
| HOX005V - valve - 1.41kg |
| HOX.005MB - tap - 0.7kg |
Gross Weight Including Packaging
| HOX005V - valve - 1.5kg |
| HOX.005MB - tap - 0.89kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Valve | 7.2 | 11.52 | 16.38 | 23 | 26.6 | n/a | 34.8 |
| SP1676 | diverter retaining nut for all finishes products of HOX.005V, TF2S |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| SP584 | mingshi F4 flow control cartridge |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1676_1 | updated Diverter retaining nut for all finishes products of TF2S, HOX005V, GUSHOWERPACKSQ3, GUSHOWERPACKSQ4, HOX1500R |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - HOX005V (English)
- Instructions - PDF - HOX.005MB (English)
- Instructions - PDF - HOX.005MB (French)
- Instructions - PDF - HOX005V (French)
-
2D CAD-File - DWG -
HOX.023MB
(HOX.023MB_LD.dwg)
-

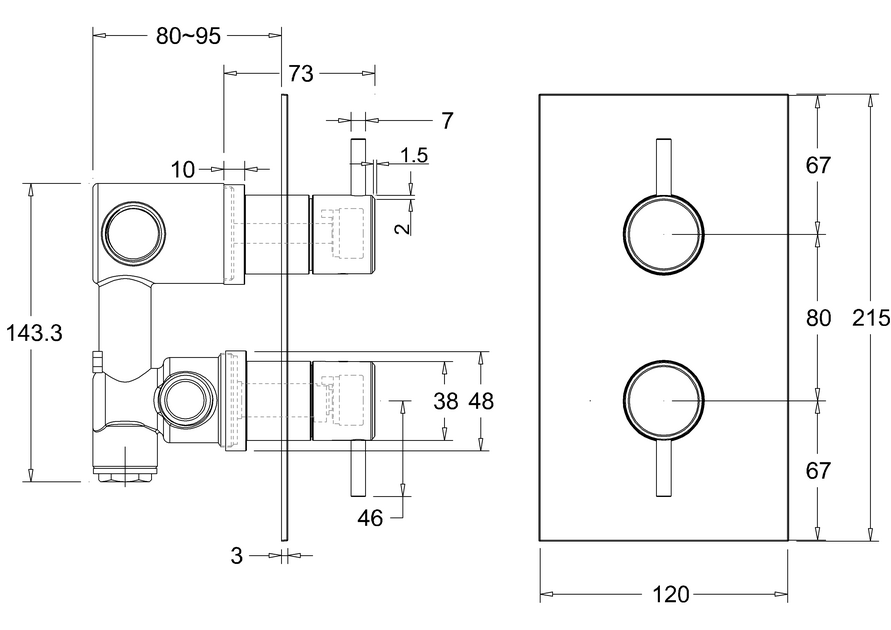

2D Drawing - PDF -
HOX.023MB
(HOX.023MB_LD.pdf)
2D Drawing - PDF - HOX.023MB
-
3D RFA BIMM Objects - File - RFA
-
HOX.023MB
(HOX.005_HOX005V.rfa)
- 3D IGS - File - IGS - HOX.005MB (HOX.005.igs)
- 3D IGS - File - IGS - HOX005V (HOX.005.igs)
