Hoxton Thermostatic Shower Mixer without Diverter Chrome
Product Options
finish options
Chrome
|
Matt Black
|
Brushed brass
|
As Shown
| HOX006V Concealed Valve without Diverter |
| HOX.006MB Hoxton Shower Mixer without Diverter Matt Black |
| HOX.024MB - Combined product code |
Nett Weight
| HOX006V - valve - 1.1kg |
| HOX.006MB - tap - 0.75kg |
Gross Weight Including Packaging
| HOX006V - valve - 1.2kg |
| HOX.006MB - tap - 0.94kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Valve | 7.7 | 12.4 | 16.3 | 23 | 27 | n/a | 35 |
| SP315 | hent F2 flow control cartridge |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - HOX006V (English)
- Instructions - PDF - HOX.006MB (English)
- Instructions - PDF - HOX.006MB (French)
- Instructions - PDF - HOX006V (French)
-
2D CAD-File - DWG -
HOX.024MB
(HOX.024MB_LD.dwg)
-

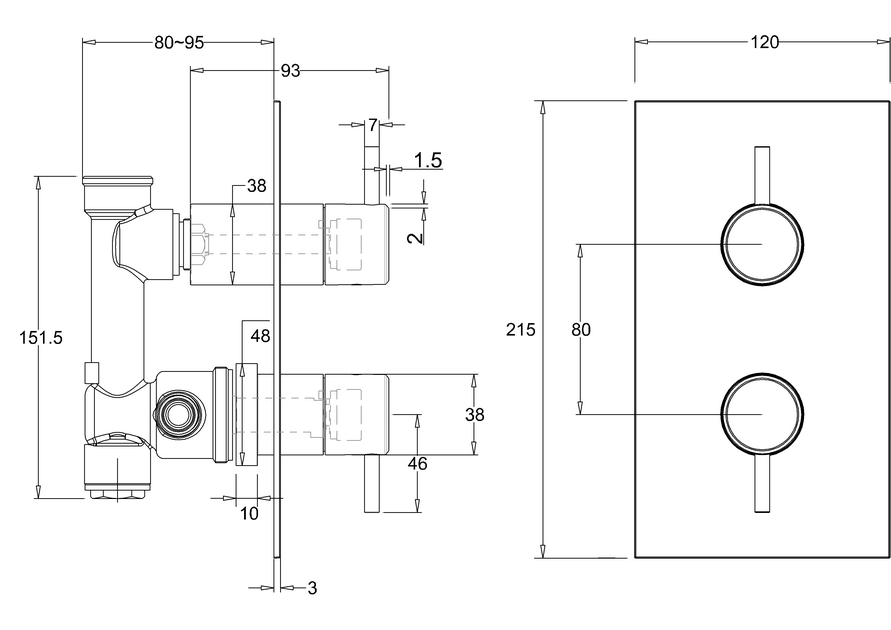

2D Drawing - PDF -
HOX.024MB
(HOX.024MB_LD.pdf)
2D Drawing - PDF - HOX.024MB
-
3D RFA BIMM Objects - File - RFA
-
HOX.024MB
(HOX.006_HOX006V.rfa)
- 3D IGS - File - IGS - HOX.006MB (HOX.006.igs)
- 3D IGS - File - IGS - HOX006V (HOX.006.igs)
-
