Hoxton Deck Mounted panel valves Chrome

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

Hoxton Deck Mounted panel valves Chrome

Chrome

Hoxton Deck Mounted panel valves Brushed Brass

Matt Black

Hoxton Deck Mounted panel valves Matt Black

Brushed brass

Alternate Text

As Shown

HOX.007MB Hoxton Deck Mounted Valves Matt Black

HOX.350DC Hoxton Panel valves rough only

HOX.025MB - Combined product code

Colour

HOX.007MB - valve - Matt Black

HOX.350DC - valve - brass

Material

HOX.007MB - valve - Brass

HOX.350DC - valve - brass

Size

HOX.007MB - 63 x 36 x 50.3mm

HOX.350DC - 78.5 x 53 x 165mm

Nett Weight

HOX.007MB - valve - 0.44kg

HOX.350DC - valve - 1.65kg

Gross Weight Including Packaging

HOX.007MB - valve - 0.53kg

HOX.350DC - valve - 1.9kg

Packed Dimension

HOX.007MB - 125 x 115 x 65 = 0.0009 m3

HOX.350DC - 300 x 300 x 200 = 0.018 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Downloads

Instructions - PDF - HOX.007MB (English)
Instructions - PDF - HOX.007MB (French)

2D CAD-File - DWG - HOX.025MB (HOX.025BB_LD.dwg)

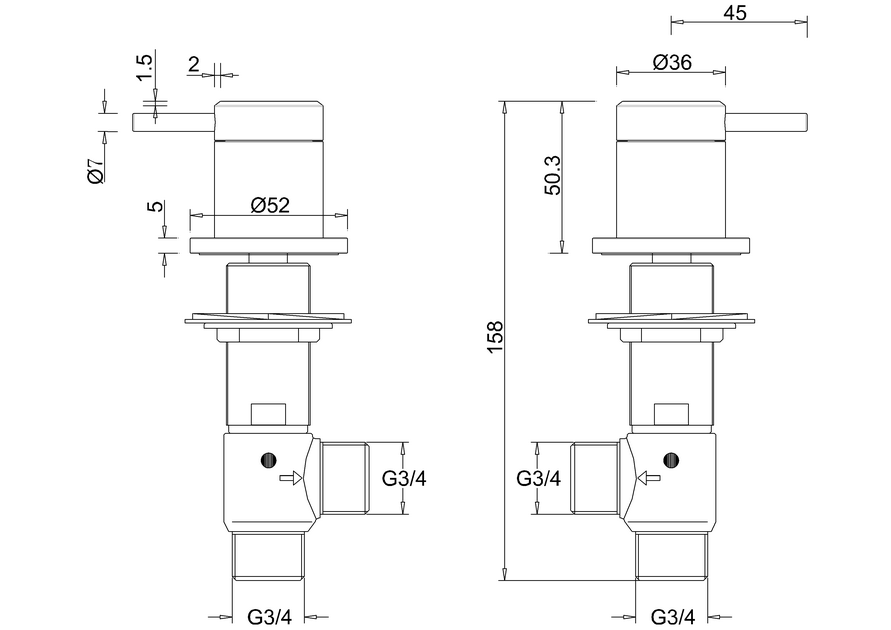

2D Drawing - PDF - HOX.025MB (HOX.025BB_LD.pdf) 2D Drawing - PDF - HOX.025BB

3D RFA BIMM Objects - File - RFA - HOX.025MB (HOX.007_HOX.350DC.rfa)
3D IGS - File - IGS - HOX.007MB (HOX.007.igs)
3D IGS - File - IGS - HOX.350DC (HOX.350.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
