Edwardian 120cm Basin with classic pedestal JET
Product Options
mounting options
|
with pedestal
|
with wash stand
|
As Shown
| B193THJET Edwardian 120cm Basin 3TH Jet |
| P6JET Classic Pedestal (to suit B15 & B19 only) Jet |
| P6 B19 3TH JET - Combined product code |
Nett Weight
| B193THJET - basin - 38.5kg |
| P6JET - pedestal - 12.25kg |
Gross Weight Including Packaging
| B193THJET - basin - 44.3kg |
| P6JET - pedestal - 14.15kg |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Downloads
-
2D CAD-File - DWG -
P6 B19 3TH JET
(P6 B19 3TH_LD.dwg)
-

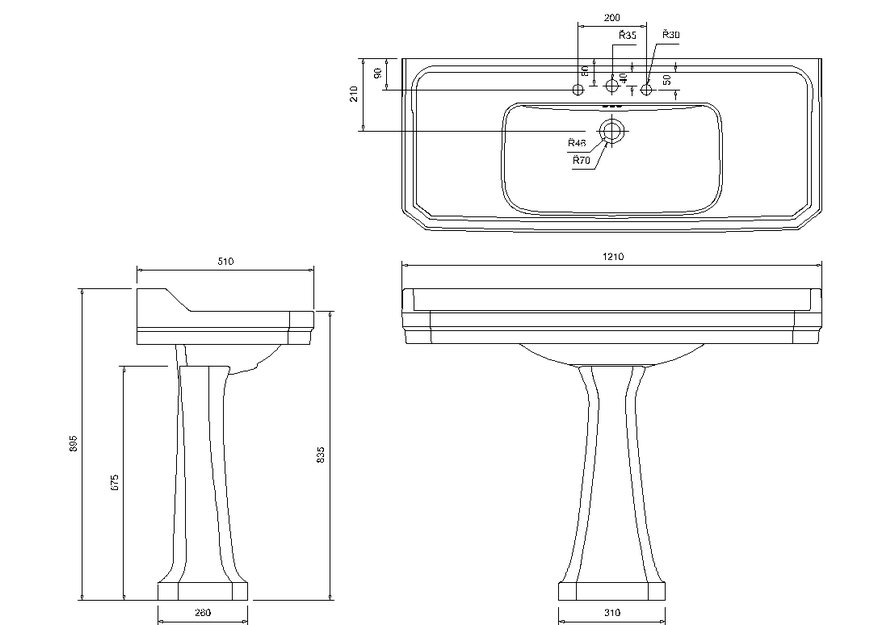

2D Drawing - PDF -
P6 B19 3TH JET
(P6 B19 3TH_LD.pdf)
2D Drawing - PDF - P6 B19 3TH JET
-
3D DWG - File - DWG
-
P6 B19 3TH JET
(100023.dwg)
-
3D RFA BIMM Objects - File - RFA
-
P6 B19 3TH JET
(100023.rfa)
