Kai 6 Quadrant single door
Product Options

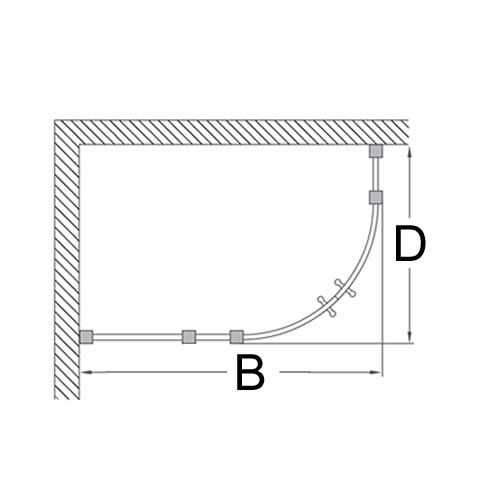

Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
80cm (D), 100cm (B)
|
80cm (D), 120cm (B)
|
80cm (D), 120cm (B)
|
As Shown
| KLQSSC0800 Kai 6 Quadrant Single Door 800 |
Material
| KLQSSC0800 - door - Aluminum |
Nett Weight
| KLQSSC0800 - door - 40kg |
Gross Weight Including Packaging
| KLQSSC0800 - door - 42kg |
Packed Dimension
| KLQSSC0800 - 2000 x 590 x 170 = 0.2006 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Quick release double rollers |
|
1900mm enclosure height |
|
Concealed fixings and profile cover caps |
|
Silver anodised aluminium finish |
|
Suitable for 550mm radius shower trays or tiled floors (wet room) |
|
Reversible door for left or right hand entry |
|
20mm width adjustment for easy fitting |
| KL6S00004 | KAI 6 Bifold Centre Seal 1816mm x1 |
| KL6S00006 | KAI 6 Handle x1 Part K |
| KLQUAD1PACK | kai 6 Intsall Pack Single Quad Door |
| KL6S00014 | kai 6 Long Seal 1881mm x1 Part O & P |
| KL6S00019 | KAI 6 Lower Roller x 2 Parts J |
| KL6S00008 | KAI 6 Profile Caps L, R Part A |
| KL6S00021 | KAI 6 Seal 1814mm x1 for Quads Part L |
| KL6S00022 | KAI 6 Seal 1814mm x1 Single Quad Pt P |
| KL6S00018 | KAI 6 Top Roller x 2 Parts M |
| KL6S00003 | KAI 6 Wall Plug x8 Part C |
Downloads
- Specifications - PDF - KLQSSC0800
-
2D CAD-File - DWG -
KLQSSC0800
(KLQSSC0800.dwg)
-

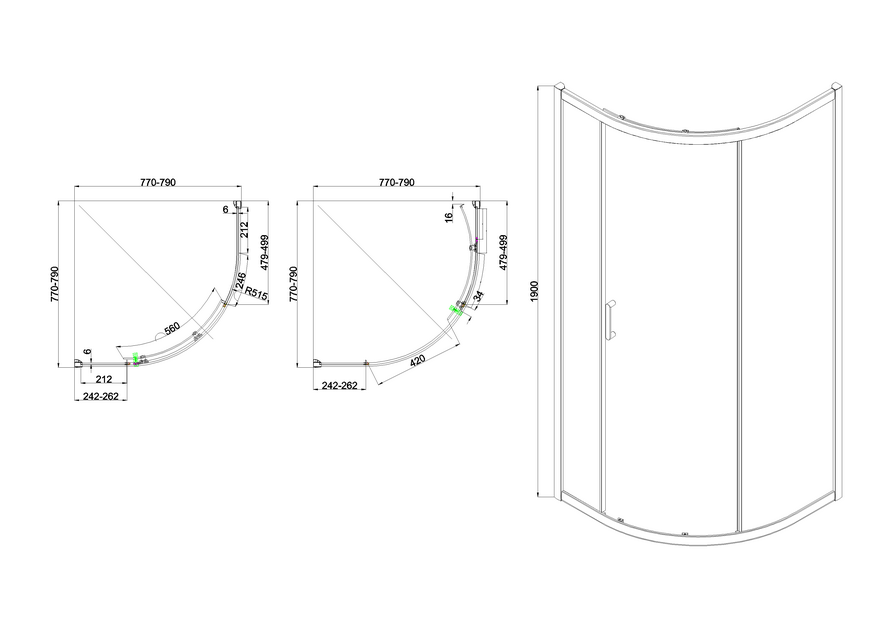

2D Drawing - PDF -
KLQSSC0800
(KLQSSC0800.pdf)
2D Drawing - PDF - KLQSSC0800
