Kai 6 Single sliding door
Product Options
Sizes (click on size to refresh details)
100cm (A)
|
110cm (A)
|
120cm (A)
|
140cm (A)
|
150cm (A)
|
As Shown
| KLSLSC1100 Kai 6 Single Slider 1100 |
Material
| KLSLSC1100 - door - Aluminum |
Nett Weight
| KLSLSC1100 - door - 32.8kg |
Gross Weight Including Packaging
| KLSLSC1100 - door - 34.8kg |
Packed Dimension
| KLSLSC1100 - 2000 x 595 x 110 = 0.1309 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Quick release double rollers |
|
1900mm enclosure height |
|
Concealed fixings and profile cover caps |
|
Silver anodised aluminium finish |
|
Suitable for tray or tiled floors (wet room) |
|
Reversible door for left or right hand entry |
|
40mm width adjustment for easy fitting |
| KL6S00004 | KAI 6 Bifold Centre Seal 1816mm x1 |
| KL6S00006 | KAI 6 Handle x1 Part K |
| KLSLIDEKIT | kai 6 Intsall Pack Sliding Door |
| KL6S00014 | kai 6 Long Seal 1881mm x1 Part O & P |
| KL6S00019 | KAI 6 Lower Roller x 2 Parts J |
| KL6S00024 | KAI 6 mag Seal 1881mm x1 Slider Part M |
| KL6S00008 | KAI 6 Profile Caps L, R Part A |
| KL6S00015 | kai 6 Short Seal 1814mm x1 Part Q & T |
| KL6S00018 | KAI 6 Top Roller x 2 Parts M |
| KL6S00003 | KAI 6 Wall Plug x8 Part C |
Downloads
- Specifications - PDF - KLSLSC1100
-
2D CAD-File - DWG -
KLSLSC1100
(KLSLSC1100.dwg)
-

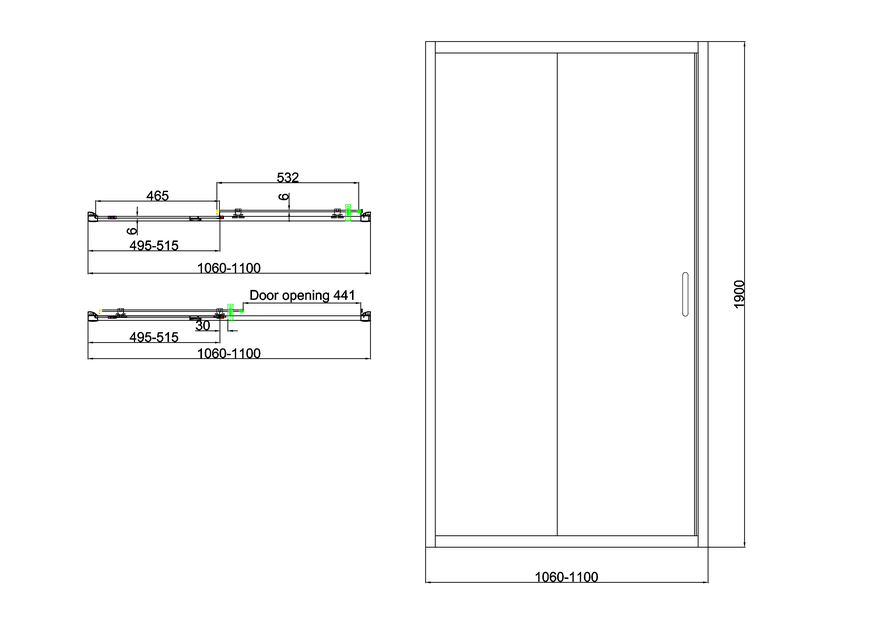

2D Drawing - PDF -
KLSLSC1100
(KLSLSC1100.pdf)
2D Drawing - PDF - KLSLSC1100
