Kai 6 Single Curved Bath Screen
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)
Kai 6 Single Curved Bath Screen 875 875mm Kai 6 Single Curved Bath Screen 650 650mm
Alternate Text
As Shown
KLBSSC0650 Kai 6 Single Curved Bath Screen 650
Colour
KLBSSC0650 - bathscreen - Polished Aluminum
Material
KLBSSC0650 - bathscreen - Aluminum
Size
KLBSSC0650 - 6 x 694 x 1380mm
Nett Weight
KLBSSC0650 - bathscreen - 13kg
Gross Weight Including Packaging
KLBSSC0650 - bathscreen - 15kg
Packed Dimension
KLBSSC0650 - 1480 x 710 x 80 = 0.0841 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN14428:2015
BS EN 12150-1:2015
Additional Information
Concealed profile
Silver anodised aluminium finish
1380mm screen height
Reversible door for left or right hand entry
90° hinge rotation, outwards
KL6S00032 kai 6 Hinge Set KLBSSC0650, 875
KLBATHPACK3 kai 6 Intsall Pack Curved KLBSSC
KL6S00008 KAI 6 Profile Caps L, R Part A
KL6S00030 kai 6 Seal 1388mm KLBSSC0650, 875 Pt Q
KL6S00031 kai 6 Seal 823mm KLBSSC0650, 875 Pt M
Downloads
  • Instructions - PDF - KLBSSC0650 (English)
  • 3D IGS - File - IGS  -  KLBSSC0650 (KLBSSC0650.igs)
  • Product image 1 - jpg

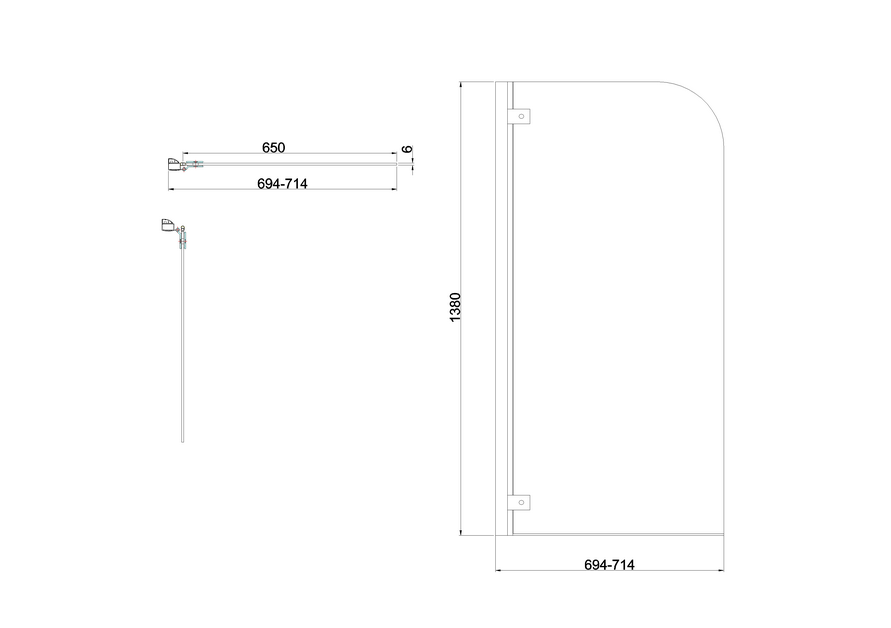

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
