Clear 6 Infold Door & Side Panel silver
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)
Clear 6 Infold Door 700 & Side Panel 700 70cm (A), 70cm (C) Clear 6 Infold Door 700 & Side Panel 760 70cm (A), 76cm (C) Clear 6 Infold Door 700 & Side Panel 800 70cm (A), 80cm (C) Clear 6 Infold Door 700 & Side Panel 900 70cm (A), 90cm (C) Clear 6 Infold Door 700 & Side Panel 1000 70cm (A), 100cm (C)
Clear 6 Infold Door 760 & Side Panel 700 76cm (A), 70cm (C) Clear 6 Infold Door 760 & Side Panel 760 76cm (A), 76cm (C) Clear 6 Infold Door 760 & Side Panel 800 76cm (A), 80cm (C) Clear 6 Infold Door 760 & Side Panel 900 76cm (A), 90cm (C) Clear 6 Infold Door 760 & Side Panel 1000 76cm (A), 100cm (C)
Clear 6 Infold Door 800 & Side Panel 700 80cm (A), 70cm (C) Clear 6 Infold Door 800 & Side Panel 760 80cm (A), 76cm (C) Clear 6 Infold Door 800 & Side Panel 800 80cm (A), 80cm (C) Clear 6 Infold Door 800 & Side Panel 900 80cm (A), 90cm (C) Clear 6 Infold Door 800 & Side Panel 1000 80cm (A), 100cm (C)
Clear 6 Infold Door 900 & Side Panel 700 90cm (A), 70cm (C) infold_door_and_side_option.jpg 90cm (A), 76cm (C) Clear 6 Infold Door 900 & Side Panel 800 90cm (A), 80cm (C) Clear 6 Infold Door 900 & Side Panel 900 90cm (A), 90cm (C) Clear 6 Infold Door 900 & Side Panel 1000 90cm (A), 100cm (C)
Clear 6 Infold Door 1000 & Side Panel 700 100cm (A), 70cm (C) Clear 6 Infold Door 1000 & Side Panel 760 100cm (A), 76cm (C) Clear 6 Infold Door 1000 & Side Panel 800 100cm (A), 80cm (C) Clear 6 Infold Door 1000 & Side Panel 900 100cm (A), 90cm (C) Clear 6 Infold Door 1000 & Side Panel 1000 100cm (A), 100cm (C)
Alternate Text
As Shown
CAIDSC0900 Clear 6 Infold Door 900
CASPSC0760 Clear 6 Side Panel 760
Colour
CAIDSC0900 - door - Polished Aluminum
CASPSC0760 - side panel - Polished Aluminum
Material
CAIDSC0900 - door - Aluminum
CASPSC0760 - side panel - Aluminum
Size
CAIDSC0900 - 6 x 860 x 1950mm
CASPSC0760 - 6 x 735 x 1950mm
Nett Weight
CAIDSC0900 - door - 27.6kg
CASPSC0760 - side panel - 20.9kg
Gross Weight Including Packaging
CAIDSC0900 - door - 30.6kg
CASPSC0760 - side panel - 23.9kg
Packed Dimension
CAIDSC0900 - 2030 x 940 x 95 = 0.1813 m3
CASPSC0760 - 2050 x 835 x 90 = 0.1541 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 12150-1:2015
BS EN14428:2015
Additional Information
1950mm enclosure height
30mm width adjustment for easy fitting
Concealed fixings and profile cover caps
Hinges built into profile for easy cleaning
Removable bottom seal
Reversible door for left or right hand entry
Silver anodised aluminium finish
Suitable for tray or tiled floors (wet room)
CAINFOLDPACKC clear 6 Install Pack Infold Chrome
CASIDEPACKC clear 6 Install Pack Side Panel Chrome
CA600006 clear Chrome Handle All Models x1
CA600022 clear Infold CP Covers H I J
CA600025 clear Infold Door Long Seal 1868mm
CA600024 clear Infold Door Top, Bottom Seal 884mm
CA600021 clear Infold Rollers x2 CP
CA600023 clear Profile Cap x2 Infold Pivot
CA600017 clear Side Panel Parts AB AC AD AE
Downloads
  • Instructions - PDF - CAIDSC0900 (English)
  • 3D STP - File - STP  -  CAIDSC0900 CASPSC0760 (CAIDSC0900_INFOLD_DOOR.stp)
  • Product image 1 - jpg

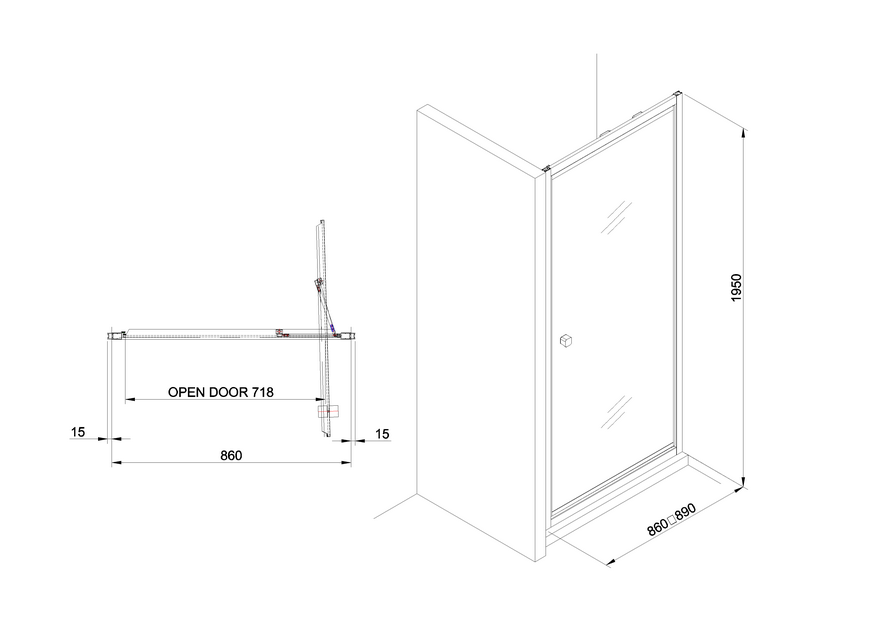

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
