Clear 6 Quadrant Double Doors
Product Options
Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
As Shown
| CAQDS0900 Clear 6 Quad Dble Door 900 |
Material
| CAQDS0900 - door - Aluminum |
Nett Weight
| CAQDS0900 - door - 45.9kg |
Gross Weight Including Packaging
| CAQDS0900 - door - 48.9kg |
Packed Dimension
| CAQDS0900 - 2030 x 485 x 215 = 0.2117 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 12150-1:2015 |
|
BS EN14428:2015 |
Additional Information
|
15mm width adjustment for easy fitting |
|
1950mm enclosure height |
|
Concealed fixings and profile cover caps |
|
Quick release double rollers |
|
Secure magnetic seal closing |
|
Silver anodised aluminium finish |
|
Suitable for 550mm radius shower trays or tiled floors (wet room) |
| CAQUADKITC | clear 6 Install Pack Quad Chrome |
| CA600006 | clear Chrome Handle All Models x1 |
| CA600004 | clear Lock Cover Grey All Models |
| CA600001 | clear Mag. Seal Double Quad Part G, L=1930mm |
| CA600032 | clear Rollers SilverTop Bottom for Quads |
| CA600003 | clear Seal Double Door Quad Part E, L=1930mm |
| CA600002 | clear Seal Double Door Quad Part F, L=1860mm |
| CA600005 | clear Top Caps Left & Right |
Downloads
- Specifications - PDF - CAQDS0900
-
2D CAD-File - DWG -
CAQDS0900
(CAQDS0900.dwg)
-

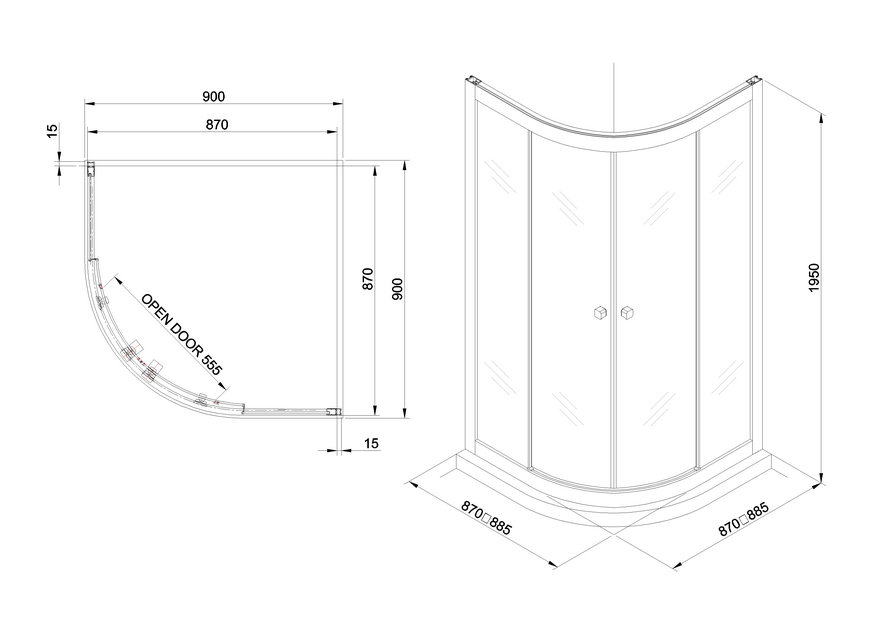

2D Drawing - PDF -
CAQDS0900
(CAQDS0900.pdf)
2D Drawing - PDF - CAQDS0900
