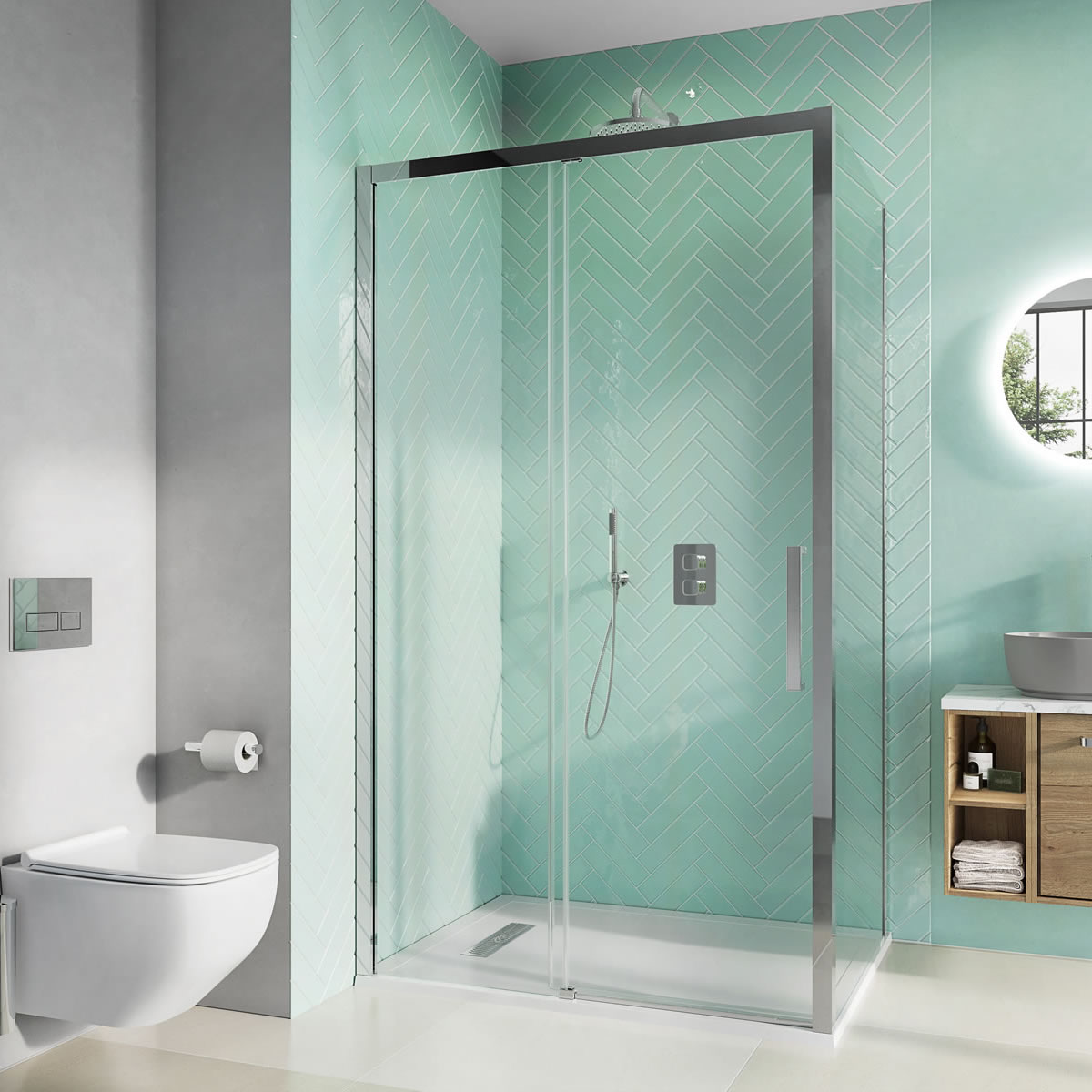

Infinity Soft Close Single Slider & Side Panel
Product Options
Sizes (click on size to refresh details)
120cm (A), 80cm (B)
|
120cm (A), 90cm (B)
|
140cm (A), 80cm (B)
|
|
140cm (A), 90cm (B)
|
170cm (A), 80cm (B)
|
170cm (A), 90cm (B)
|
As Shown
| ISLSC1400A+ Infinity 8 1400 slider single door stainless steel Box A |
| ISLSC1400B+ Infinity 8 1400 slider single door stainless steel Box B |
Gross Weight Including Packaging
| ISLSC1400A+ - door - 35.2kg |
| ISLSC1400B+ - door - 31.4kg |
Packed Dimension
| ISLSC1400A+ - 2060 x 730 x 95 = 0.1429 m3 |
| ISLSC1400B+ - 2095 x 815 x 85 = 0.1451 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Quick release, easy to clean double rollers |
|
Soft close opening and closing |
|
Concealed fixings |
|
Suitable for tray or tiled floors (wet room) |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
Reversible door for left or right hand entry |
|
Up to 40mm width adjustment for easy fitting |
| IN0000065 | cover |
| IN0000046 | cover II |
| IN0000042 | decoration cover I |
| IN0000054 | end socket I (RH) |
| IN0000016 | handle |
| IN0000035 | roller |
| IN0000017 | roller (Top) |
| IN0000038 | roller clip |
| IN0000031 | side waterproof strip II |
| IN0000030 | side waterproof strip L=1992mm |
| DSL000030 | ST4*40mm screw |
| IN0000034 | wall frame sealing strip I L=1950 |
| IN0000033 | wall frame sealing strip II L=1950 |
| DSL000029 | wall plug |
| IN0000067 | waterproof barrier bar L=675mm for ISLSC1400 |
| IN0000039 | waterproof cap |
Downloads
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
