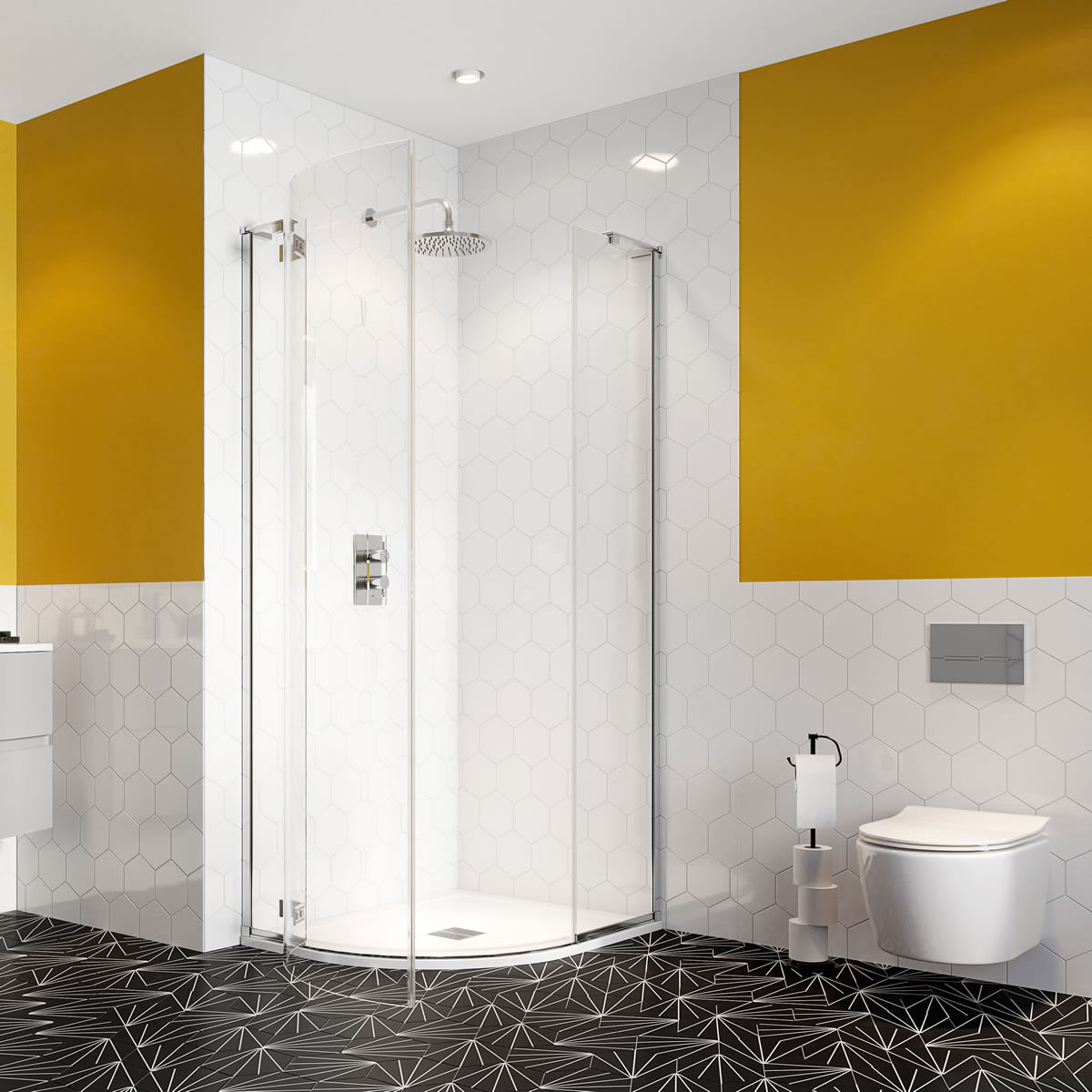

Quadrant with Single Door
Product Options
Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
100cm (D)
|
80cm (D), 20cm (B)
|
As Shown
| SQSSC10X8A Svelte 8 Quadrant with Single Door 10x8 Box A |
| SQSSC10X8B Svelte 8 Quadrant with Single Door 10x8 Box B |
Colour
| SQSSC10X8A - door - Polished stainless steel finish |
| SQSSC10X8B - door - Polished stainless steel finish |
Material
| SQSSC10X8A - door - Stainless steel profile with safety glass |
| SQSSC10X8B - door - Stainless steel profile with safety glass |
Nett Weight
| SQSSC10X8A - door - 38.3kg |
| SQSSC10X8B - door - 24kg |
Gross Weight Including Packaging
| SQSSC10X8A - door - 40.8kg |
| SQSSC10X8B - door - 26.5kg |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Flush fit hinges |
|
Polished stainless steel finish |
|
Suitable for 550mm radius shower trays or tiled floors (wet room) |
|
Reversible door for left or right hand entry |
|
15mm per panel adjustment for easy fitting |
|
2000mm enclosure height |
| SV0000022 | 1954mm Wall frame sealing strip |
| SV0000021 | 2.5mm Allen key |
| SV0000020 | 4mm Allen key |
| SV0000046 | alcohol Prep Pad |
| SV0000083 | bottom profile L=221mm |
| SV0000082 | bottom profile L=421mm |
| SV0000041 | bottom seat(LH) |
| SV0000044 | bottom seat(RH) |
| SV0000075 | bottom waterproof strip |
| SV0000029 | glass clamp assembly |
| SV0000015 | handle |
| SV0000074 | hinge |
| SV0000005 | M4X12mm Screw |
| SV0000045 | positioning template |
| SV0000078 | side waterproof strip L=1980mm |
| DSL000030 | ST4*40mm screw |
| SV0000079 | support bar L=150mm |
| SV0000073 | support bar L=200mm |
| SV0000080 | support bar L=250mm |
| SV0000023 | top Cap |
| SV0000024 | wall bracket assembling |
| SV0000081 | waterproof barrier bar L=1693mm |
Downloads
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
