Burlington basin mixer with high central indice
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Kensington basin mixer with pop-up waste Chrome
Tap Head Options (Chrome Finish Shown)
Claremont basin mixer with pop-up waste Claremont Anglesey basin mixer with pop-up waste Anglesey Birkenhead basin mixer with pop-up waste Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options

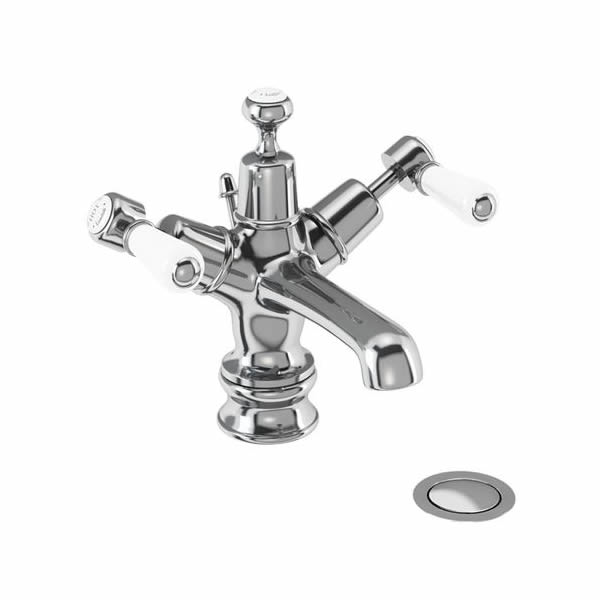

Kensington basin mixer with pop-up waste Standard base Kensington Regent basin mixer with pop-up waste Regent base
Waste options
Kensington basin mixer with click-clack waste with click-clack waste popup.jpg with pop-up waste Kensington basin mixer with plug and chain waste with plug & chain
Indicies & lever finish

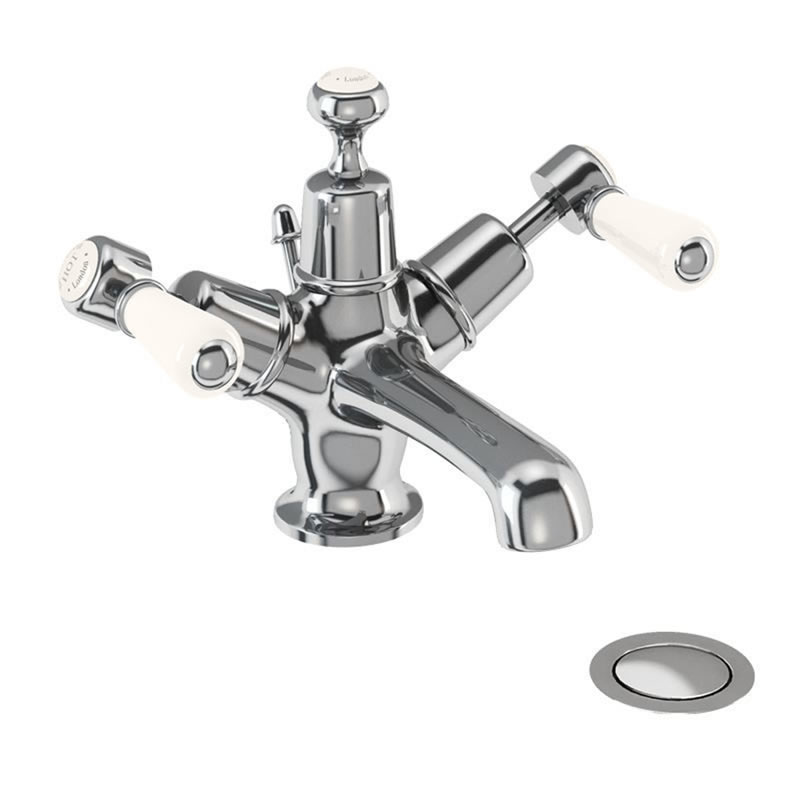

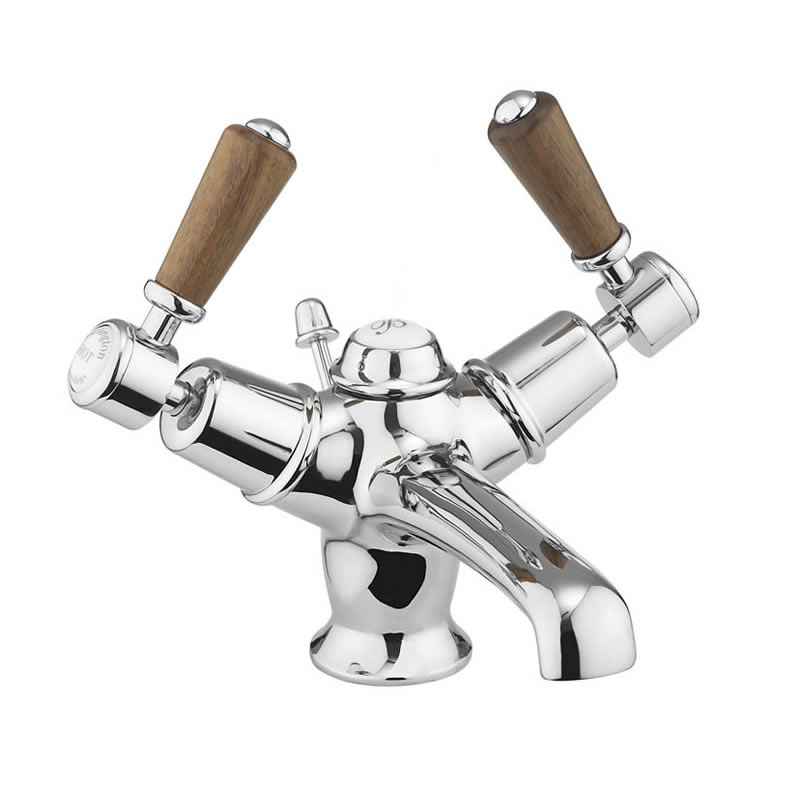

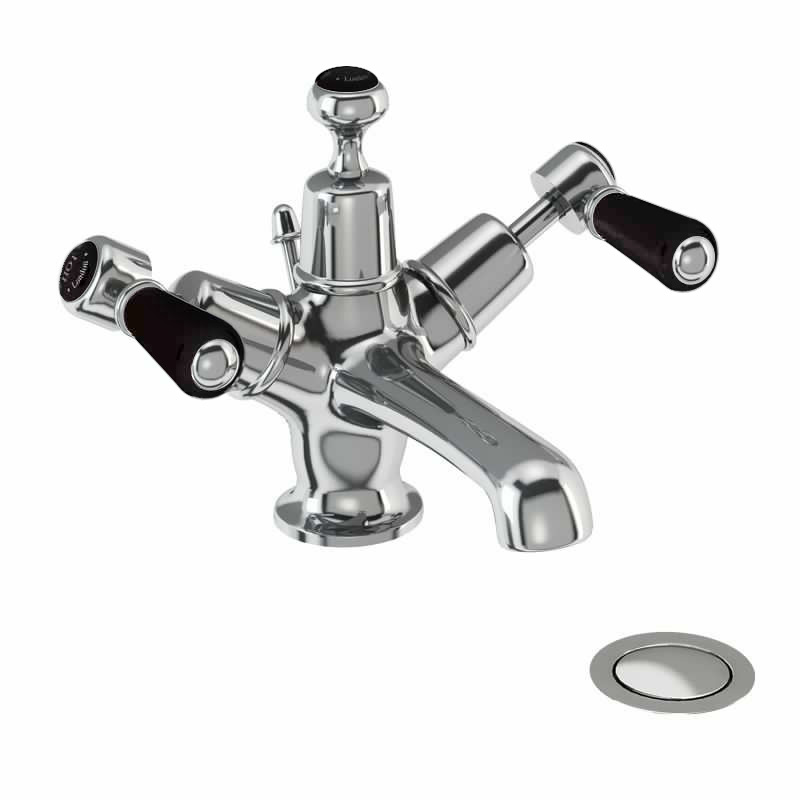

Kensington basin mixer with pop-up waste White Kensington Medici basin mixer with pop-up waste Medici Kensington basin mixer with pop-up waste Black Kensington Walnut Basin Mixer with Pop-Up Waste White & Walnut
Alternate Text
As Shown
T4 Kensington tap handles
T12_QT Quarter turn basin mixer
KE4-QT  -  Combined product code
Colour
T4 - tap handle - Polished Chrome
T12_QT - tap - Polished Chrome
Material
T4 - tap handle - Brass
T12_QT - tap - Brass
Size
T4 - 94 x 27 x 23.2mm
T12_QT - 166 x 159 x 152mm
Nett Weight
T4 - tap handle - 0.29kg
T12_QT - tap - 1.75kg
Gross Weight Including Packaging
T4 - tap handle - 0.34kg
T12_QT - tap - 2.26kg
Packed Dimension
T4 - 105 x 70 x 35 = 0.0003 m3
T12_QT - 335 x 285 x 180 = 0.0172 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Gold and Nickel finish is only available with the quarter turn option
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.2  11.2  13.4  16.3  18.9  n/a  n/a
Spout (aerator) 4.5  8.1  8.6  10  12.1  n/a  n/a
SP78 1, 2 quarter turn COLD cartridge for T12-QT, STA11QT, STA12QT
SP77 1, 2 quarter turn HOT cartridge for T12-QT, STA11QT, STA12QT
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Downloads
  • Instructions - PDF - T4 (English)
  • Instructions - PDF - T12_QT (English)
  • Instructions - PDF - T12_QT (French)
  • Instructions - PDF - T4 (French)
  • 3D DWG - File - DWG  -  KE4-QT (T12.dwg)
  • 3D DXF - File - DXF  -  KE4-QT (T12.dxf)
  • 3D IGS - File - IGS  -  KE4-QT (T12.igs)
  • 3D IGS - File - IGS - T4 (t4.igs)
  • 3D DWG - File - DWG - T12_QT (T12.dwg)
  • 3D DXF - File - DXF - T12_QT (T12.dxf)
  • 3D IGS - File - IGS - T12_QT (T12.igs)
  • Product image 1 - jpg
  • Product image 2 - jpg
  • Product image 3 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
