Burlington basin mixer with high central indice
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

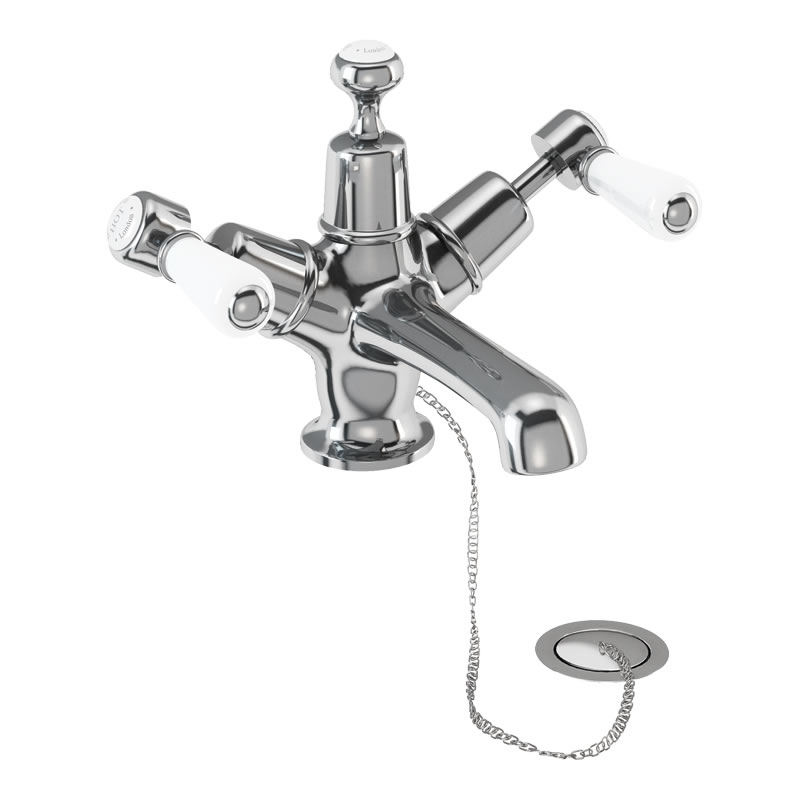

Kensington basin mixer with plug and chain waste Chrome
Tap Head Options (Chrome Finish Shown)
Claremont basin mixer with plug and chain waste Claremont Anglesey basin mixer with plug and chain waste Anglesey Birkenhead basin mixer with plug and chain waste Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options

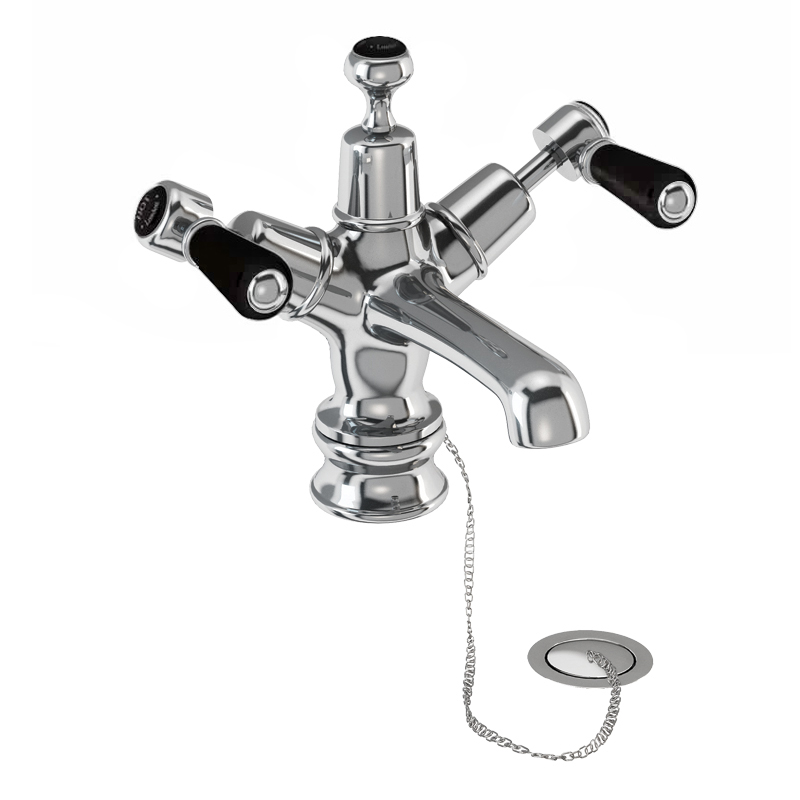

Kensington basin mixer with plug and chain waste Standard base Kensington Regent basin mixer with plug and chain waste Regent base
Waste options
Kensington basin mixer with click-clack waste with click-clack waste Kensington basin mixer with pop-up waste with pop-up waste plugchain.jpg with plug & chain
Indicies & lever finish

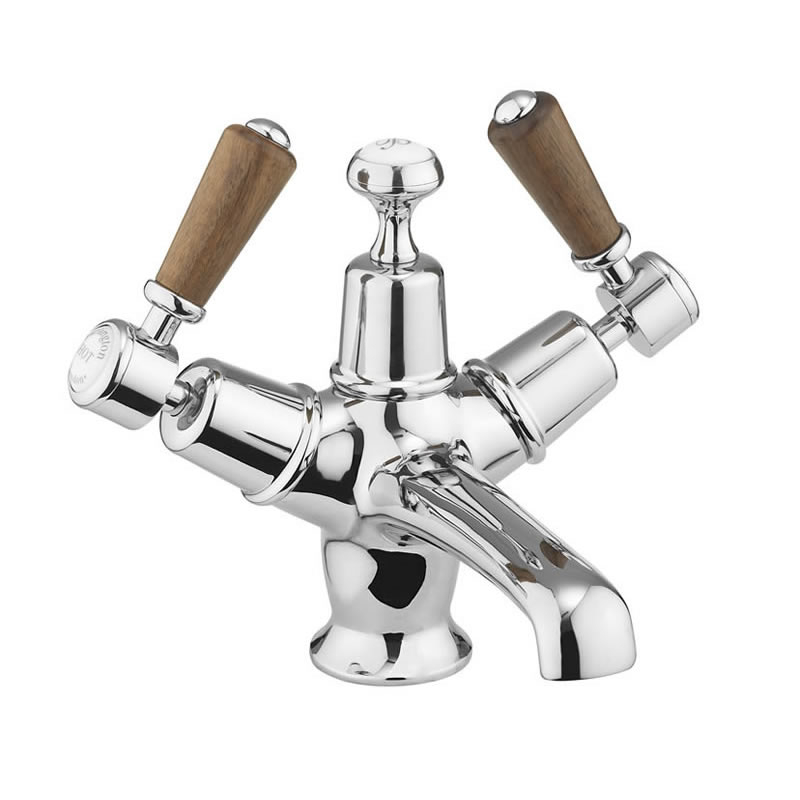

Kensington basin mixer with plug and chain waste White Kensington Medici basin mixer with plug and chain waste Medici Kensington basin mixer with plug and chain waste Black Kensington Walnut Basin Mixer with Plug and Chain Waste White & Walnut
Alternate Text
As Shown
T13_QT Quarter turn basin mixer with plug & chain

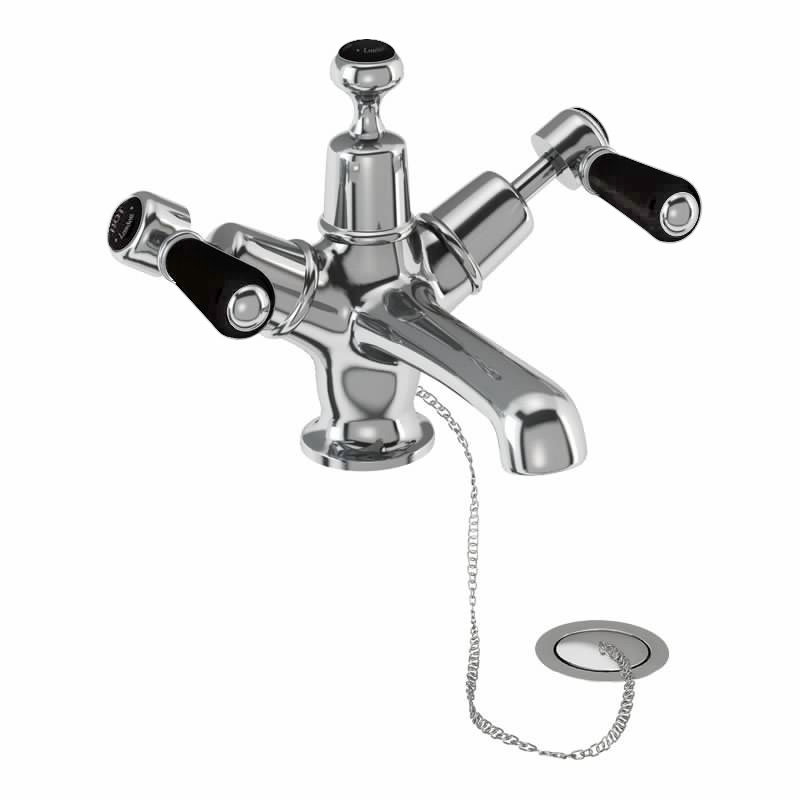

T4 BLA Kensington tap handles (pair) - chrome & black
BX23 Black B indice - 22mm
KE5 BLA-QT  -  Combined product code
Colour
T13_QT - tap - Polished Chrome
T4 BLA - tap handle - Polished Chrome
BX23 - indice - Gloss Black
Material
T13_QT - tap - Brass
T4 BLA - tap handle - Brass
BX23 - indice - Vitreous China
Size
T13_QT - 151 x 215 x 152mm
T4 BLA - 94 x 27 x 23.2mm
BX23 - 22 x 22 x 6.3mm
Nett Weight
T13_QT - tap - 1.7kg
T4 BLA - tap handle - 0.29kg
BX23 - indice - 0.004kg
Gross Weight Including Packaging
T13_QT - tap - 2kg
T4 BLA - tap handle - 0.34kg
BX23 - indice - 0.02kg
Packed Dimension
T13_QT - 335 x 285 x 180 = 0.0172 m3
T4 BLA - 105 x 70 x 35 = 0.0003 m3
BX23 - 55 x 54 x 55 = 0.0002 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Gold and Nickel finish is only available with the quarter turn option
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.2  11.2  13.4  16.3  18.9  n/a  n/a
Spout (aerator) 4.5  8.1  8.6  10  12.1  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1189 black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235 chain for T13, T13-QT, T16, T16-QT, W1
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP1111 plug (including the chain, stud and nut) for T13, T13-QT
SP884 plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP74 T13, T15 1, 2 quarter turn COLD cartridge
SP73 T13, T15 1, 2 quarter turn HOT cartridge
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1103 the grate for the W1, T16, T16-QT, T13, T13-QT
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Downloads
  • Instructions - PDF - T13_QT (English)
  • Instructions - PDF - T4 BLA (English)
  • Instructions - PDF - T13_QT (French)
  • Instructions - PDF - T4 BLA (French)
  • 3D DWG - File - DWG  -  KE5 BLA-QT (T13.dwg)
  • 3D DXF - File - DXF  -  KE5 BLA-QT (T13.dxf)
  • 3D IGS - File - IGS  -  KE5 BLA-QT (T13.igs)
  • 3D DWG - File - DWG - T13_QT (T13.dwg)
  • 3D DXF - File - DXF - T13_QT (T13.dxf)
  • 3D IGS - File - IGS - T13_QT (T13.igs)
  • 3D IGS - File - IGS - T4 BLA (t4.igs)
  • Product image 1 - jpg
  • Product image 2 - jpg
  • Product image 3 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
