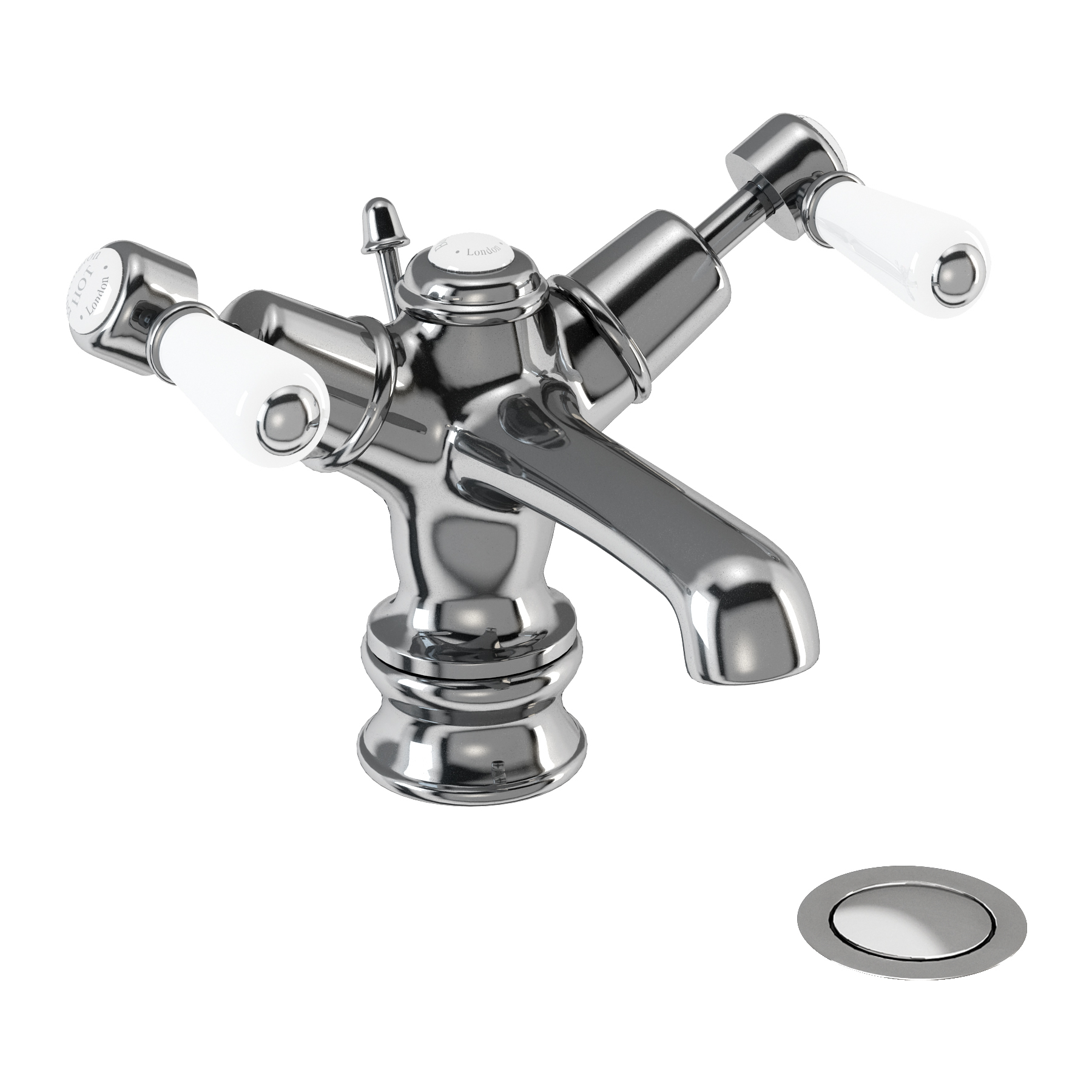

Burlington basin mixer with low central indice
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|
As Shown
| T4 Kensington tap handles |
| T4B Regent small single tap base |
| T12_QT Quarter turn basin mixer |
| KER4-QT - Combined product code |
Colour
| T4 - tap handle - Polished Chrome |
| T4B - regent tap base - Polished Chrome |
| T12_QT - tap - Polished Chrome |
Gross Weight Including Packaging
| T4 - tap handle - 0.34kg |
| T4B - regent tap base - 0.21kg |
| T12_QT - tap - 2.26kg |
Packed Dimension
| T4 - 105 x 70 x 35 = 0.0003 m3 |
| T4B - 65 x 65 x 35 = 0.0001 m3 |
| T12_QT - 335 x 285 x 180 = 0.0172 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 10.2 | 11.2 | 13.4 | 16.3 | 18.9 | n/a | n/a |
| Spout (aerator) | 4.5 | 8.1 | 8.6 | 10 | 12.1 | n/a | n/a |
| SP78 | 1, 2 quarter turn COLD cartridge for T12-QT, STA11QT, STA12QT |
| SP77 | 1, 2 quarter turn HOT cartridge for T12-QT, STA11QT, STA12QT |
| SP450 | aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP451 | key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT |
| SP825 | lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP194 | o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT |
| SP655 | pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11 |
| SP974 | plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23 |
| SP807 | pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP942 | tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP985 | top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT |
Downloads
- Instructions - PDF - T4 (English)
- Instructions - PDF - T12_QT (English)
- Instructions - PDF - T12_QT (French)
- Instructions - PDF - T4 (French)
-
2D CAD-File - DWG -
KER4-QT
(KER4_LD.dwg)
-

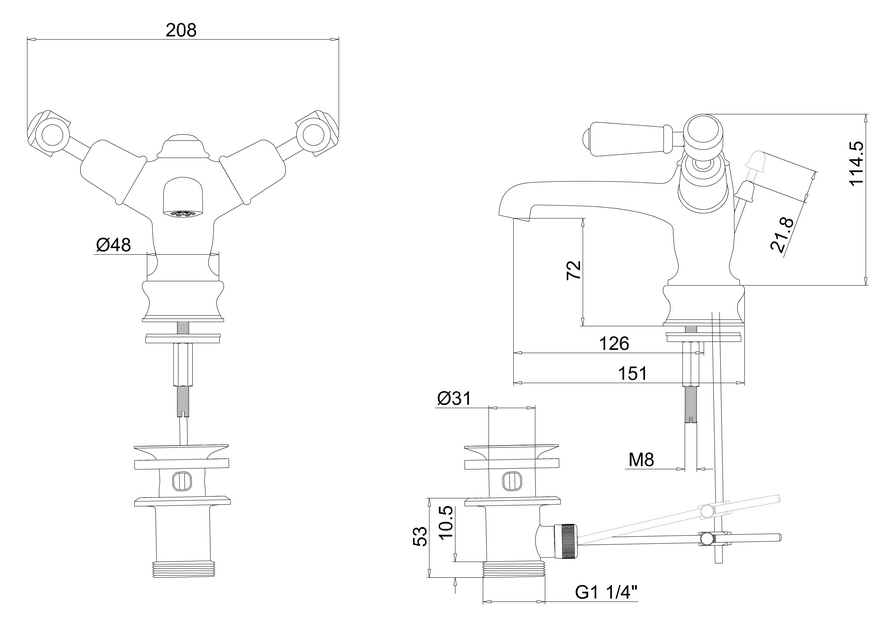

2D Drawing - PDF -
KER4-QT
(KER4_LD.pdf)
2D Drawing - PDF - KER4-QT
-
3D DWG - File - DWG
-
KER4-QT
(T12.dwg)
-
3D DXF - File - DXF
-
KER4-QT
(T12.dxf)
-
3D IGS - File - IGS
-
KER4-QT
(T12.igs)
- 3D IGS - File - IGS - T4 (t4.igs)
- 3D DWG - File - DWG - T4B (T4B.dwg)
- 3D DWG - File - DWG - T12_QT (T12.dwg)
- 3D DXF - File - DXF - T12_QT (T12.dxf)
- 3D IGS - File - IGS - T12_QT (T12.igs)
- 3D DXF - File - DXF - T4B (T4B.dxf)
- 3D IGS - File - IGS - T4B (T4B.igs)
