Burlington 3" basin taps

Product Options

Finish Options

Chrome

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Standard base

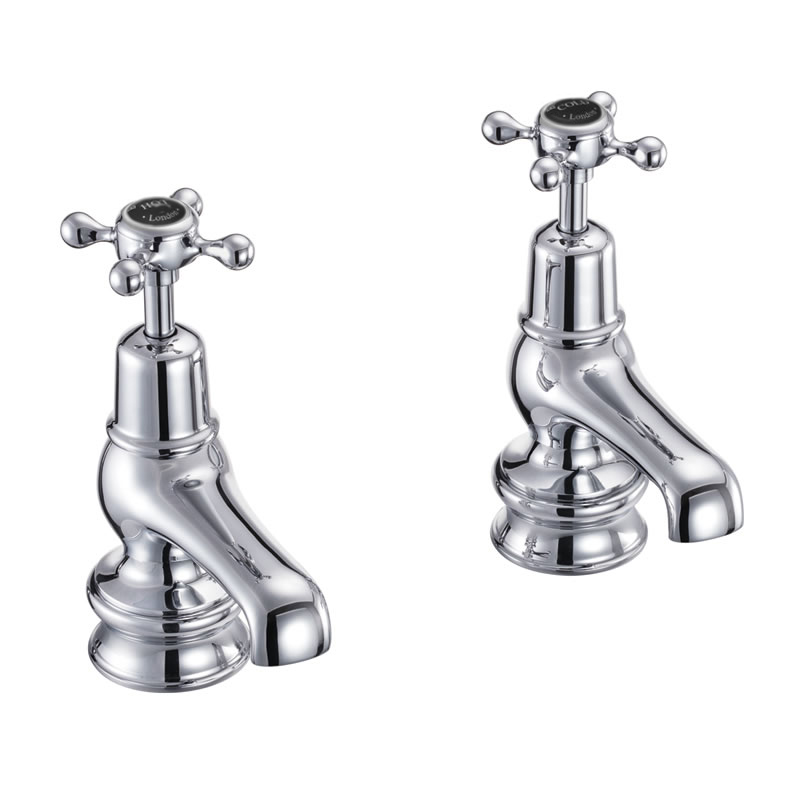

Regent base

Indicies & lever finish

White

Medici

Black

As Shown

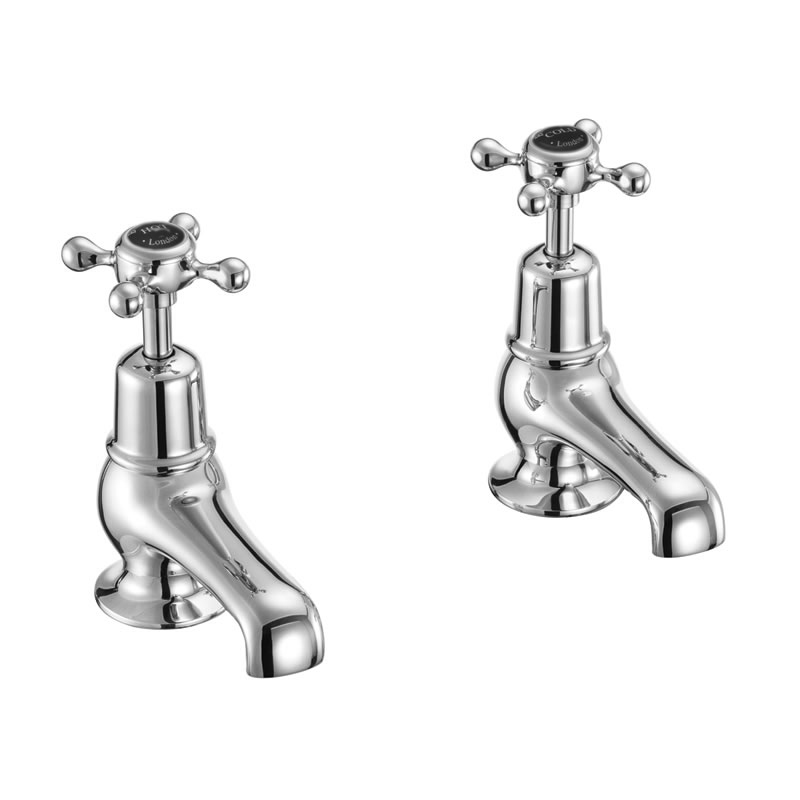

T5_QT Quarter turn basin pillar taps

T1 BLA Claremont tap handles (pair) - chrome & black

CL1 BLA-QT - Combined product code

Colour

T5_QT - tap - Polished Chrome

T1 BLA - tap handle - Polished Chrome

Material

T5_QT - tap - Brass

T1 BLA - tap handle - Brass

Size

T5_QT - 122 x 148 x 120mm

T1 BLA - 65 x 65 x 28mm

Nett Weight

T5_QT - tap - 1.282kg

T1 BLA - tap handle - 0.15kg

Gross Weight Including Packaging

T5_QT - tap - 1.55kg

T1 BLA - tap handle - 0.17kg

Packed Dimension

T5_QT - 245 x 175 x 55 = 0.0024 m3

T1 BLA - 60 x 60 x 62 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Gold and Nickel finish is only available with the quarter turn option

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	13.2	14.3	18.1	22.8	22.9	n/a	n/a
Spout (aerator)	4.8	7.7	9.1	10.7	11.6	n/a	n/a

Spare parts

SP450	aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91	G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP72	T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71	T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP1093	thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
