Burlington 3" basin taps
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Kensington Walnut Basin Tap 3" Chrome
Tap Head Options (Chrome Finish Shown)
Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options
Kensington Walnut Basin Tap 3" Standard base
Indicies & lever finish
Kensington basin tap 3 White Kensington Medici basin tap 3 Medici Kensington basin tap 3 Black Kensington Walnut Basin Tap 3" White & Walnut
Alternate Text
As Shown
T5_QT Quarter turn basin pillar taps
T4 WAL Kensington tap handles (pair) - chrome & walnut
KE1-QT WAL-QT  -  Combined product code
Colour
T5_QT - tap - Polished Chrome
T4 WAL - tap handle - Gloss Walnut
Material
T5_QT - tap - Brass
T4 WAL - tap handle - Brass
Size
T5_QT - 122 x 148 x 120mm
T4 WAL - 94 x 27 x 23.2mm
Nett Weight
T5_QT - tap - 1.282kg
T4 WAL - tap handle - 0.25kg
Gross Weight Including Packaging
T5_QT - tap - 1.55kg
T4 WAL - tap handle - 0.34kg
Packed Dimension
T5_QT - 245 x 175 x 55 = 0.0024 m3
T4 WAL - 105 x 70 x 35 = 0.0003 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 7.4  10.3  12.8  15.5  17.7  n/a  n/a
Spout (aerator) 4.3  7.5  8.5  10.5  11.6  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91 G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP72 T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71 T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T5_QT (English)
  • Instructions - PDF - T4 WAL (English)
  • Instructions - PDF - T5_QT (French)
  • Instructions - PDF - T4 WAL (French)
  • 3D DWG - File - DWG  -  KE1-QT WAL-QT (T5.dwg)
  • 3D DXF - File - DXF  -  KE1-QT WAL-QT (T5.dxf)
  • 3D IGS - File - IGS  -  KE1-QT WAL-QT (T5.igs)
  • 3D DWG - File - DWG - T5_QT (T5.dwg)
  • 3D DXF - File - DXF - T5_QT (T5.dxf)
  • 3D IGS - File - IGS - T5_QT (T5.igs)
  • 3D IGS - File - IGS - T4 WAL (t4.igs)

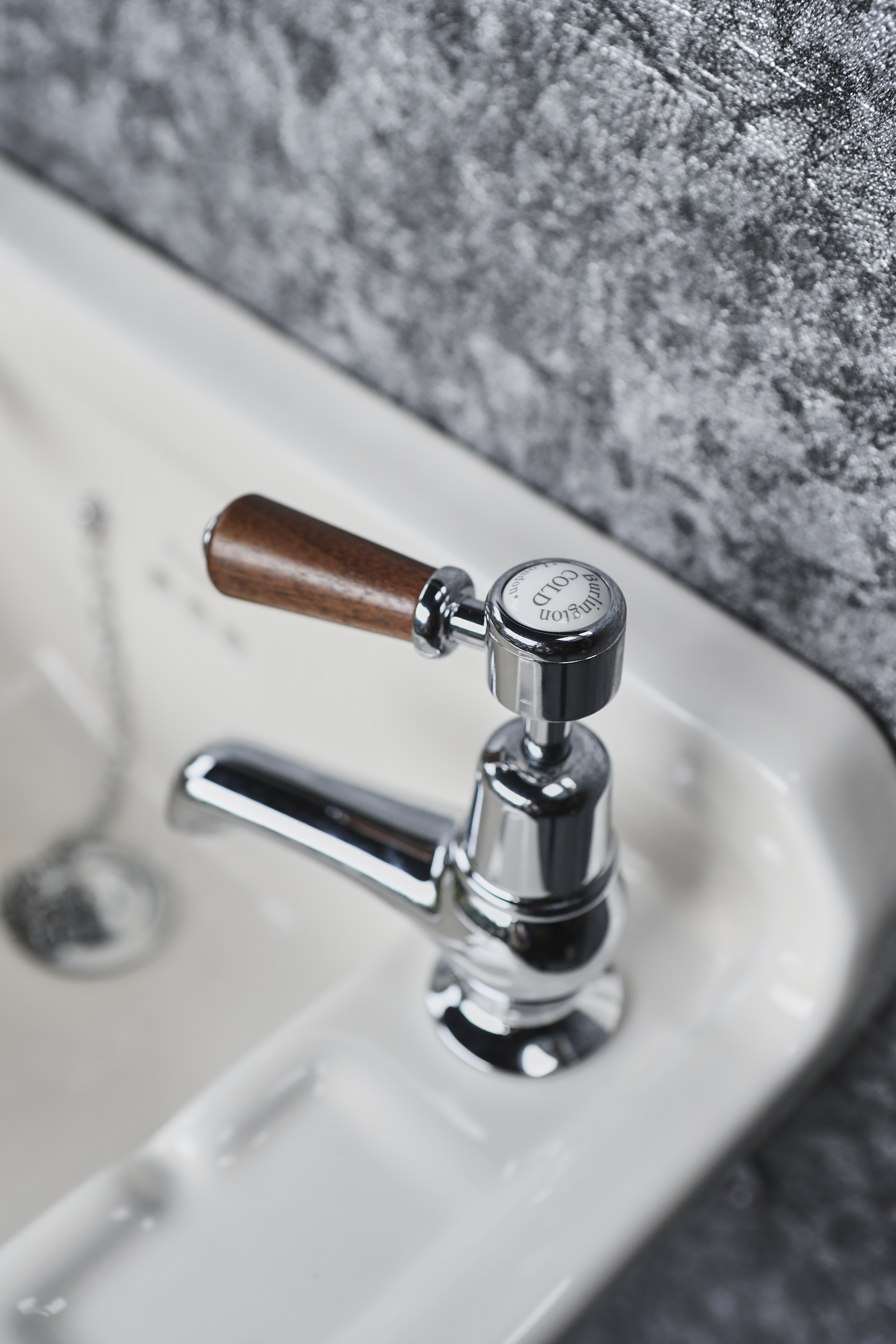

  • Lifestyle image 1 -
    jpg

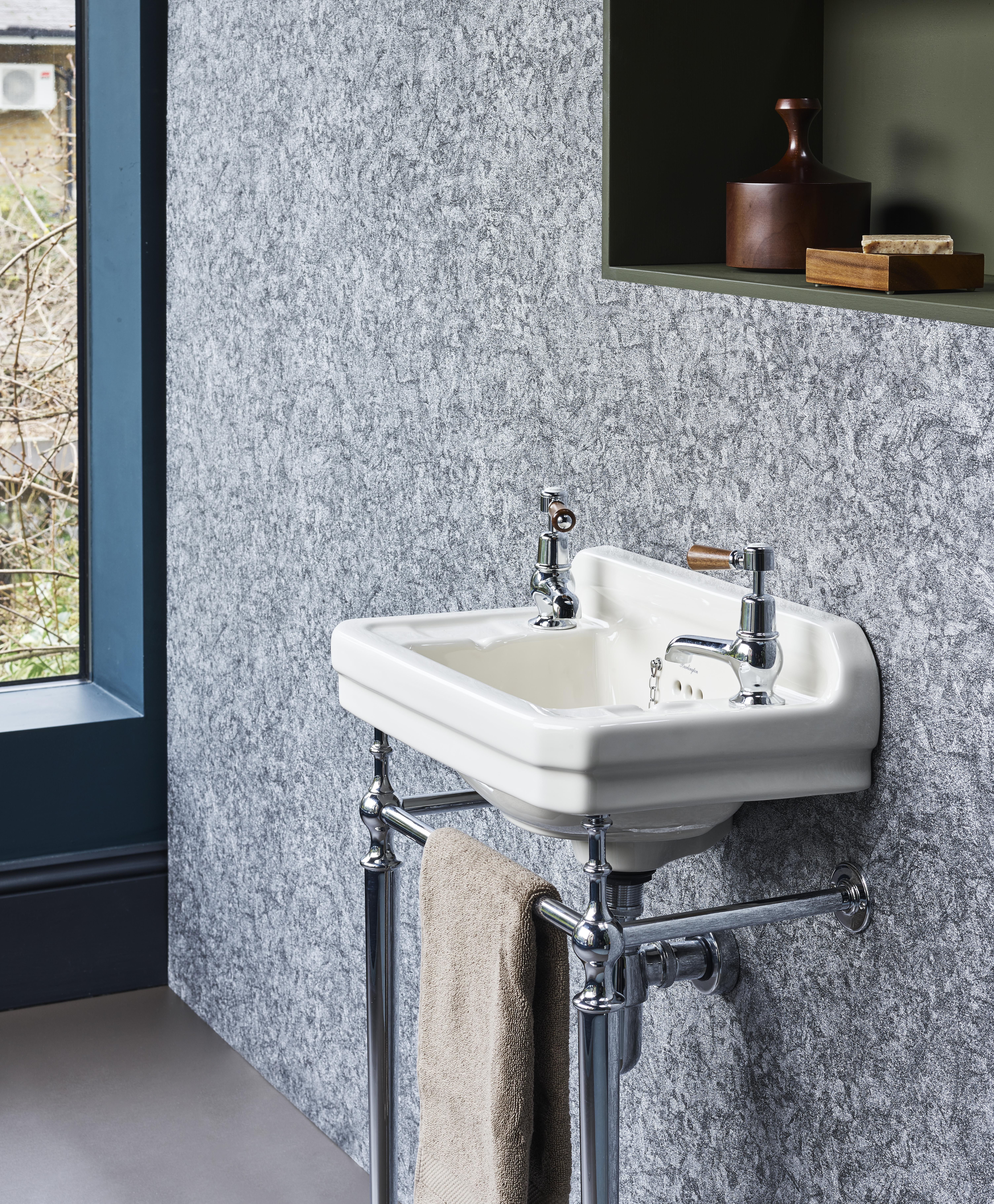

  • Lifestyle image 2 -
    jpg
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
