Burlington 5" basin taps
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

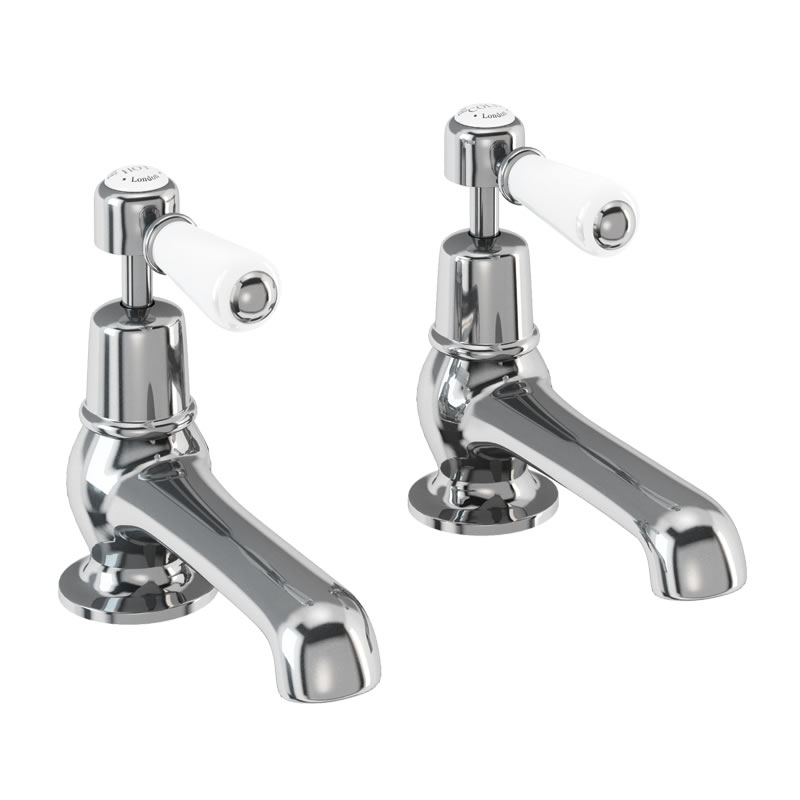

Kensington basin tap 5 Chrome
Tap Head Options (Chrome Finish Shown)
Claremont basin taps 5" Claremont Anglesey basin tap 5" Anglesey Birkenhead basin tap 5" Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options

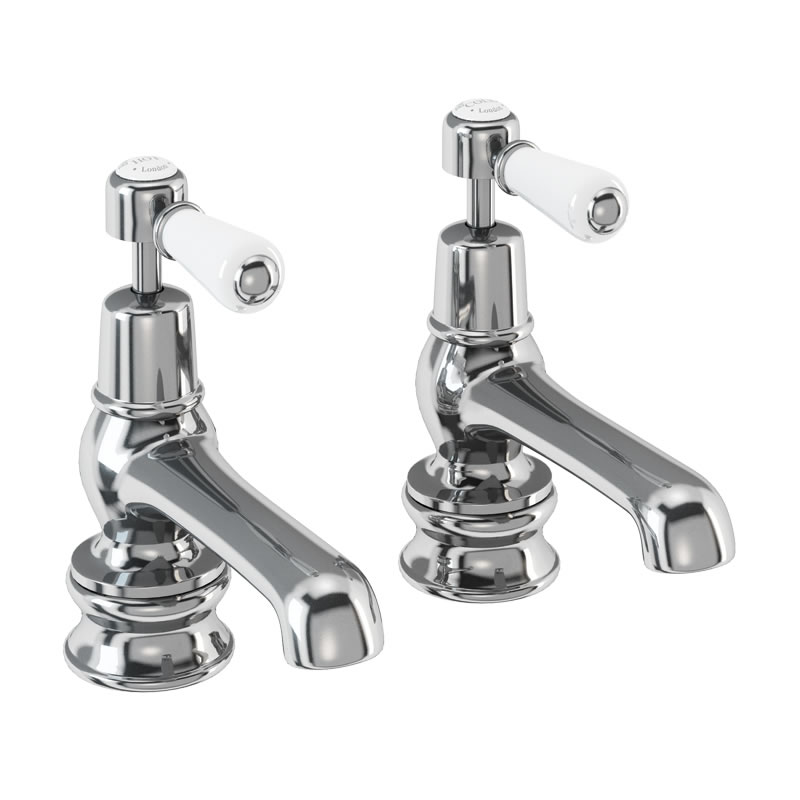

Kensington basin tap 5 Standard base Kensington Regent basin tap 5 Regent base
Indicies & lever finish

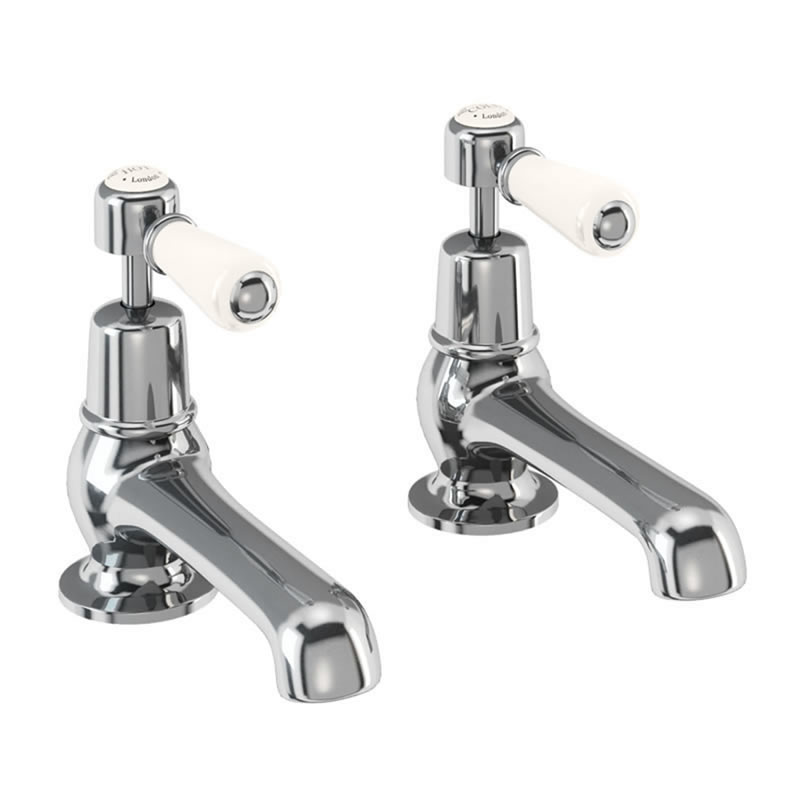

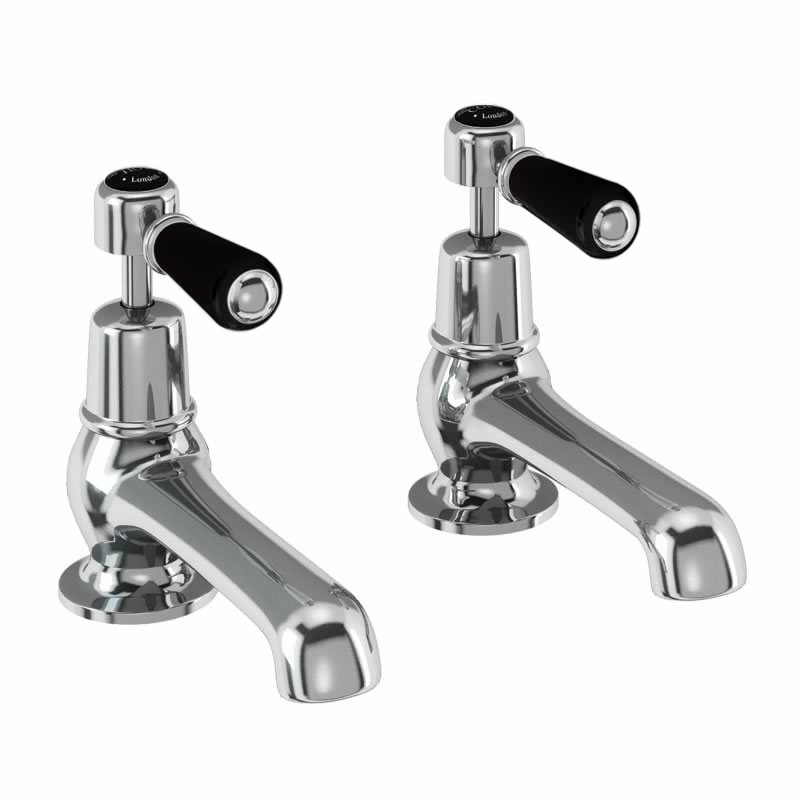

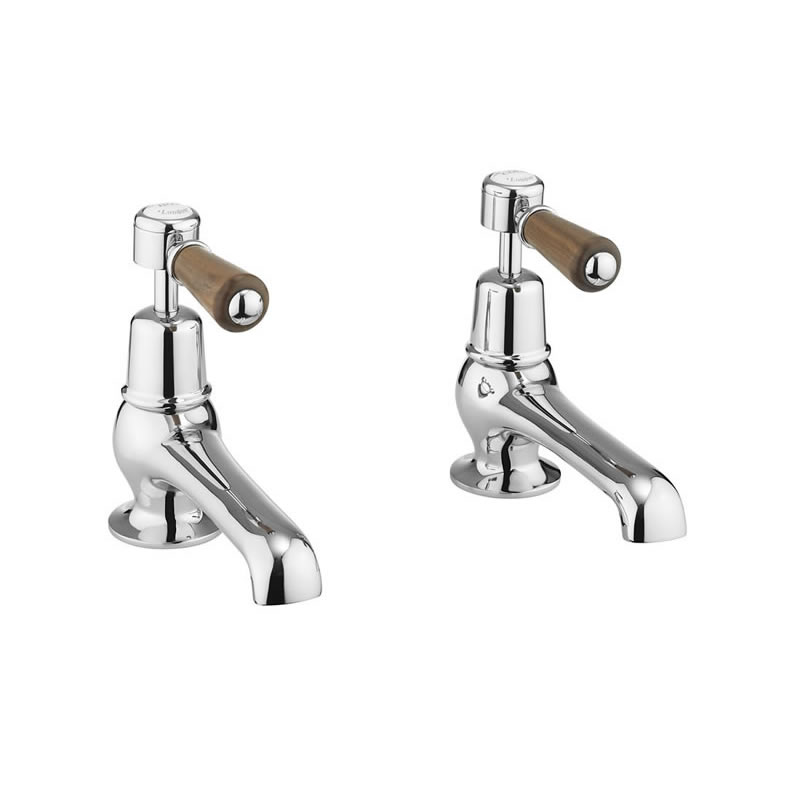

Kensington basin tap 5 White Kensington Medici basin tap 5 Medici Kensington basin tap 5 Black Kensington Walnut Basin Tap 5" White & Walnut
Alternate Text
As Shown
T4 Kensington tap handles
T6-QT Quarter turn basin pillar taps
KE2-QT  -  Combined product code
Colour
T4 - tap handle - Polished Chrome
T6-QT - tap - Polished Chrome
Material
T4 - tap handle - Brass
T6-QT - tap - Brass
Size
T4 - 94 x 27 x 23.2mm
T6-QT - 160 x 148 x 120mm
Nett Weight
T4 - tap handle - 0.29kg
T6-QT - tap - 1.32kg
Gross Weight Including Packaging
T4 - tap handle - 0.34kg
T6-QT - tap - 1.62kg
Packed Dimension
T4 - 105 x 70 x 35 = 0.0003 m3
T6-QT - 325 x 195 x 55 = 0.0035 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 8  9.9  11.7  14.9  17  n/a  n/a
Spout (aerator) 4.3  7.4  8.5  10.1  11.6  n/a  n/a
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91 G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP72 T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71 T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T4 (English)
  • Instructions - PDF - T6-QT (English)
  • Instructions - PDF - T6-QT (French)
  • Instructions - PDF - T4 (French)
  • 3D DWG - File - DWG  -  KE2-QT (T6.dwg)
  • 3D DXF - File - DXF  -  KE2-QT (T6.dxf)
  • 3D IGS - File - IGS  -  KE2-QT (T6.igs)
  • 3D IGS - File - IGS - T4 (t4.igs)
  • 3D DWG - File - DWG - T6-QT (T6.dwg)
  • 3D DXF - File - DXF - T6-QT (T6.dxf)
  • 3D IGS - File - IGS - T6-QT (T6.igs)
  • Product image 1 - jpg
  • Product image 2 - jpg

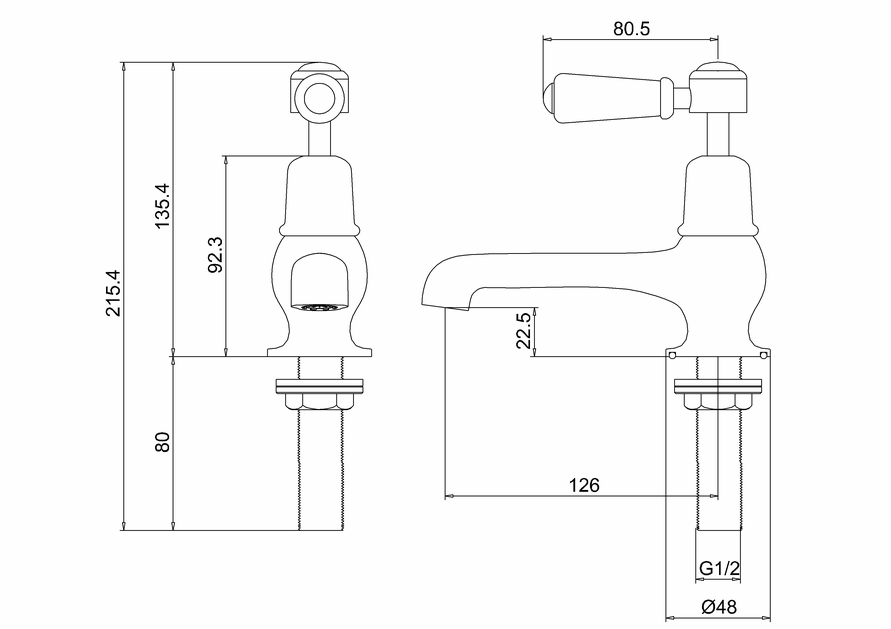

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
