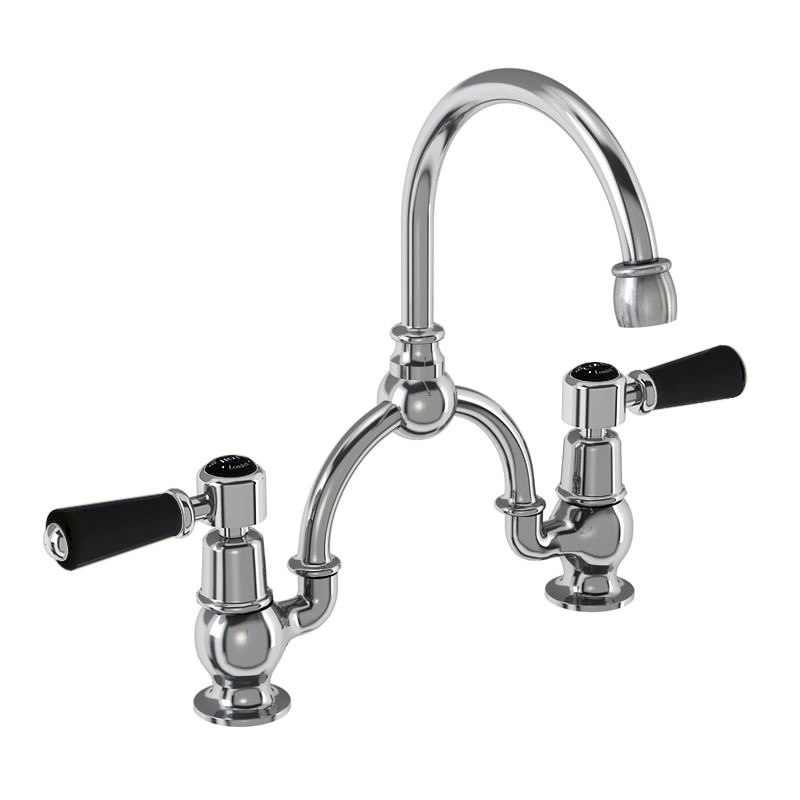

Burlington arch basin mixer with curved spout (230 mm tap centers)

Product Options

Tap Head Options (Chrome Finish Shown)

2 tap hole arch mixer with curved spout (230mm centres)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

Tap Base options

Standard base

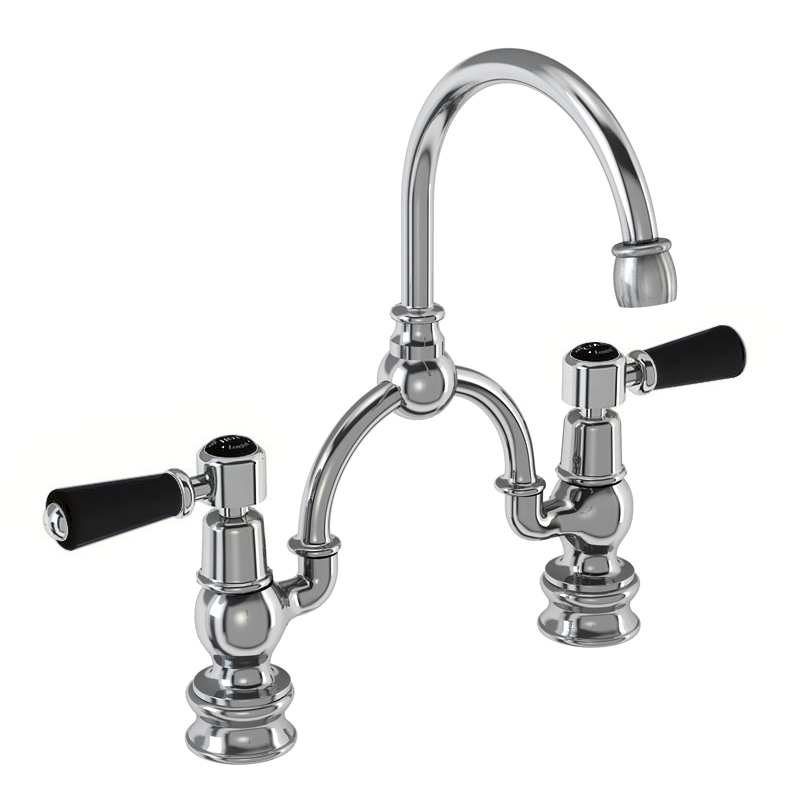

Regent base

Indicies & lever finish

White

Medici

Black

Kensington Walnut 2 Tap Hole Arch Mixer with Curved Spout (230mm centres)

White & Walnut

As Shown

T25-QT Quarter turn arch mixer with curved spout 2TH

T4 BLA Kensington tap handles (pair) - chrome & black

KE28 BLA-QT - Combined product code

Colour

T25-QT - tap - Polished Chrome

T4 BLA - tap handle - Polished Chrome

Material

T25-QT - tap - Brass

T4 BLA - tap handle - Brass

Size

T25-QT - 187 x 278 x 300.2mm

T4 BLA - 94 x 27 x 23.2mm

Nett Weight

T25-QT - tap - 1.69kg

T4 BLA - tap handle - 0.29kg

Gross Weight Including Packaging

T25-QT - tap - 2.17kg

T4 BLA - tap handle - 0.34kg

Packed Dimension

T25-QT - 430 x 305 x 55 = 0.0072 m3

T4 BLA - 105 x 70 x 35 = 0.0003 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

This Tap is for fitting to classic basins with invisible overflow B14, B16

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	6.2	9.3	17.3	23.5	29.1	n/a	n/a
Spout (aerator)	1.9	6.4	10.8	16.6	20.6	n/a	n/a

Spare parts

SP70	3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP69	3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1006	o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP1093	thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
