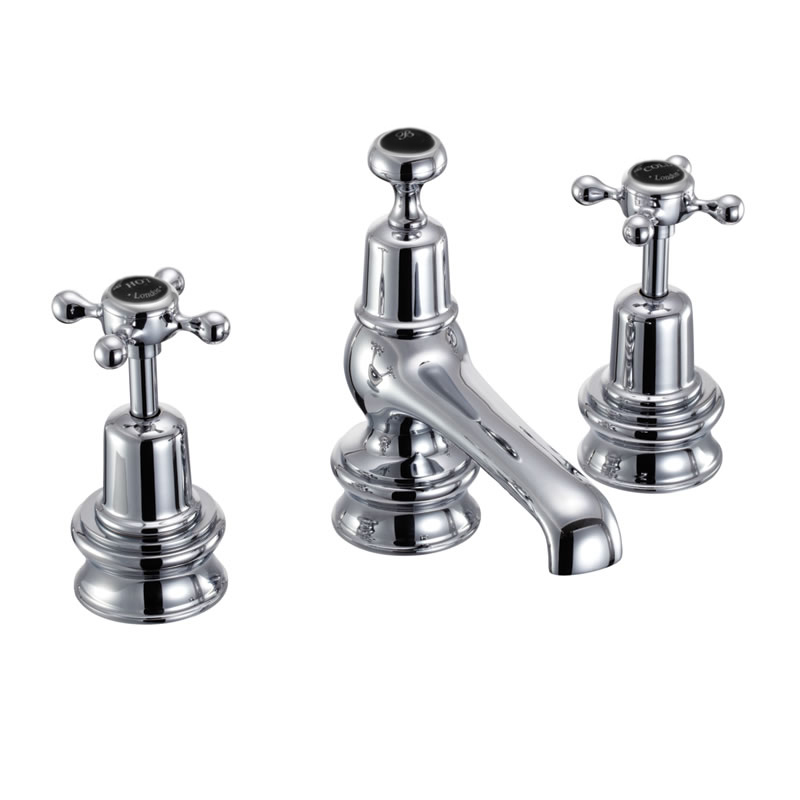

Burlington 3 tap hole basin mixer with pop-up waste
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
|
Chrome
|
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T14_QT Quarter turn 3TH with pop up |
| T4B Regent small single tap base |
| T1 BLA Claremont tap handles (pair) - chrome & black |
| BX23 Black B indice - 22mm |
| CLR12 BLA-QT - Combined product code |
Colour
| T14_QT - tap - Polished Chrome |
| T4B - regent tap base - Polished Chrome |
| T1 BLA - tap handle - Polished Chrome |
| BX23 - indice - Gloss Black |
Material
| T14_QT - tap - Brass |
| T4B - regent tap base - Brass |
| T1 BLA - tap handle - Brass |
| BX23 - indice - Vitreous China |
Nett Weight
| T14_QT - tap - 2.42kg |
| T4B - regent tap base - 0.45kg |
| T1 BLA - tap handle - 0.15kg |
| BX23 - indice - 0.004kg |
Gross Weight Including Packaging
| T14_QT - tap - 2.89kg |
| T4B - regent tap base - 0.63kg |
| T1 BLA - tap handle - 0.17kg |
| BX23 - indice - 0.02kg |
Packed Dimension
| T14_QT - 440 x 310 x 65 = 0.0089 m3 |
| T4B - 65 x 65 x 35 = 0.0001 m3 |
| T1 BLA - 60 x 60 x 62 = 0.0002 m3 |
| BX23 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
Supplied with pop up waste. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 9.5 | 15.8 | 17.2 | 19.3 | 21.2 | n/a | n/a |
| Spout (aerator) | 4.1 | 7.7 | 8.9 | 10.6 | 11.6 | n/a | n/a |
| SP450 | aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP468 | decorative cover for T14 |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP451 | key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT |
| SP634 | pair of flexible hoses for all finishes products of T14-QT, T14, T26 (360mm) |
| SP960 | pair of valve bodies including the cartridges for T14-QT |
| SP974 | plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23 |
| SP889 | pop up basin waste of product T14, T14-QT, T26 (excluding the vertical pop up waste control rod) |
| SP1716 | rod pipe in chrome finish for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED |
| SP1723 | spout for T14, T14-QT, T14 BLA, T14-QT BLA |
| SP76 | T14 1, 2 quarter turn COLD cartridge |
| SP75 | T14 1, 2 quarter turn HOT cartridge |
| SP102 | T14, T14-QT pop up waste control rod |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
| SP1285 | washers of pop up rod for all finishes products of T14, T14-QT, T26 |
Downloads
-
2D CAD-File - DWG -
CLR12 BLA-QT
(CLR12-QT.dwg)
-
2D Drawing - PDF -
CLR12 BLA-QT
(CLR12-QT.pdf)
2D Drawing - PDF - CLR12 BLA-QT
-
3D RFA BIMM Objects - File - RFA
-
CLR12 BLA-QT
(T14_T1_T4B.rfa)
- 3D DWG - File - DWG - T4B (T4B.dwg)
- 3D IGS - File - IGS - T1 BLA (T1 handle.igs)
- 3D DWG - File - DWG - T14_QT (T14.dwg)
- 3D DXF - File - DXF - T14_QT (T14.dxf)
- 3D IGS - File - IGS - T14_QT (T14.igs)
- 3D DXF - File - DXF - T4B (T4B.dxf)
- 3D IGS - File - IGS - T4B (T4B.igs)
