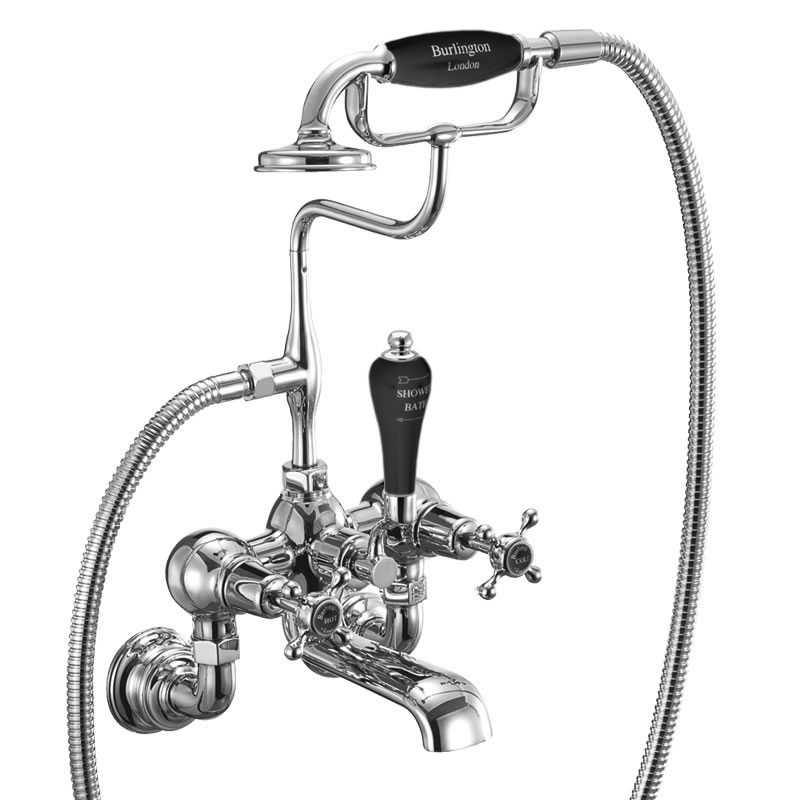

Burlington bath shower mixer wall mounted with S adjuster

Product Options

Finish Options

Claremont bath shower mixer - wall mounted

Chrome

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Standard base

Claremont Regent bath shower mixer - wall mounted

Regent base

Indicies & lever finish

White

Medici

Black

As Shown

T8_QT Quarter turn bath shower mixer

T17_2 Wall mounting unions

T1 BLA Claremont tap handles (pair) - chrome & black

BX11-1 Black shower handset

BX10 Black diverter handle of BSM

CL17 BLA-QT - Combined product code

Colour

T8_QT - tap - Polished Chrome

T17_2 - accessories - Polished Chrome

T1 BLA - tap handle - Polished Chrome

BX11-1 - shower handset - Gloss Black

BX10 - handle - Gloss Black

Material

T8_QT - tap - Brass

T17_2 - accessories - Brass

T1 BLA - tap handle - Brass

BX11-1 - shower handset - Brass

BX10 - handle - Brass

Size

T8_QT - 176.2 x 236 x 402.5mm

T17_2 - 64 x 235 x 67mm

T1 BLA - 65 x 65 x 28mm

BX11-1 - 72 x 65 x 207mm

BX10 - 77.5 x 38 x 163.5mm

Nett Weight

T8_QT - tap - 4.02kg

T17_2 - accessories - 0.67kg

T1 BLA - tap handle - 0.15kg

BX11-1 - shower handset - 0.36kg

BX10 - handle - 0.29kg

Gross Weight Including Packaging

T8_QT - tap - 4.76kg

T17_2 - accessories - 0.82kg

T1 BLA - tap handle - 0.17kg

BX11-1 - shower handset - 0.43kg

BX10 - handle - 0.37kg

Packed Dimension

T8_QT - 375 x 365 x 215 = 0.0294 m3

T17_2 - 165 x 130 x 60 = 0.0013 m3

T1 BLA - 60 x 60 x 62 = 0.0002 m3

BX11-1 - 72 x 68 x 250 = 0.0012 m3

BX10 - 140 x 105 x 40 = 0.0006 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

ACS Approved

Additional Information

Gold and Nickel finish is only available with the quarter turn option

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	22	22.6	25.2	27.2	29	n/a	n/a
Spout (aerator)	5.6	10.5	11.7	14.1	15.5	n/a	n/a
Handset	3.68	4.48	7.55	12.53	16.23	n/a	n/a

Spare parts

ACSH1	1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26	burlington Shower hose 1500mm
SP1209	ceramic handle for Burlington telephone handset
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771	cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557	cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP191	diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378	diverter handle for T8, T8-QT, T9, T9-QT
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1480	inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006	o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP317	s Adjustor for T8, T8-QT, T9, T9-QT
SP1072	set of parts used to connect the T8 BSM diverter and cross handle
SP68	T8, T10, T11 3, 4 quarter turn COLD cartridge
SP67	T8, T10, T11 3, 4 quarter turn HOT cartridge
SP1721	thread pipe (1 piece) for T17, T17-2
