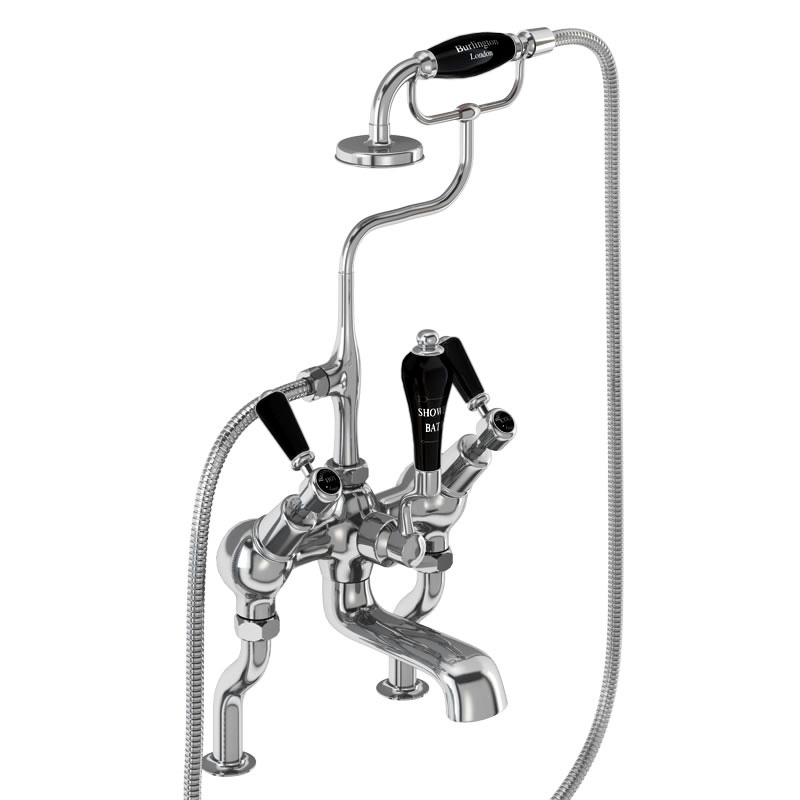

Burlington angled bath shower mixer deck mounted with S adjuster

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

Tap Base options

Kensington angled bath shower mixer - deck mounted

Standard base

Kensington Regent angled bath shower mixer - deck mounted

Regent base

Indicies & lever finish

White

Medici

Black

Kensington Walnut Angled Bath Shower Mixer - Deck Mounted

White & Walnut

As Shown

T18 Deck mounting unions

T9-QT Quarter turn angled bath shower mixer

T4 BLA Kensington tap handles (pair) - chrome & black

BX10 Black diverter handle of BSM

BX11-1 Black shower handset

KE19 BLA-QT - Combined product code

Colour

T18 - accessories - Polished Chrome

T9-QT - tap - Polished Chrome

T4 BLA - tap handle - Polished Chrome

BX10 - handle - Gloss Black

BX11-1 - shower handset - Gloss Black

Material

T18 - accessories - Brass

T9-QT - tap - Brass

T4 BLA - tap handle - Brass

BX10 - handle - Brass

BX11-1 - shower handset - Brass

Size

T18 - 55 x 255 x 106mm

T9-QT - 157 x 236 x 139mm

T4 BLA - 94 x 27 x 23.2mm

BX10 - 77.5 x 38 x 163.5mm

BX11-1 - 72 x 65 x 207mm

Nett Weight

T18 - accessories - 0.94kg

T9-QT - tap - 3.89kg

T4 BLA - tap handle - 0.29kg

BX10 - handle - 0.29kg

BX11-1 - shower handset - 0.36kg

Gross Weight Including Packaging

T18 - accessories - 1.09kg

T9-QT - tap - 4.62kg

T4 BLA - tap handle - 0.34kg

BX10 - handle - 0.37kg

BX11-1 - shower handset - 0.43kg

Packed Dimension

T18 - 235 x 150 x 60 = 0.0021 m3

T9-QT - 375 x 365 x 215 = 0.0294 m3

T4 BLA - 105 x 70 x 35 = 0.0003 m3

BX10 - 140 x 105 x 40 = 0.0006 m3

BX11-1 - 72 x 68 x 250 = 0.0012 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	18.3	19.3	22.5	25.1	25.5	n/a	n/a
Spout (aerator)	5.6	10.6	11.5	13.7	15.1	n/a	n/a
Handset	3.56	4.19	7.06	11.36	15.55	n/a	n/a

Spare parts

SP70	3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP69	3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26	burlington Shower hose 1500mm
SP1209	ceramic handle for Burlington telephone handset
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771	cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557	cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP191	diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378	diverter handle for T8, T8-QT, T9, T9-QT
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1480	inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006	o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP317	s Adjustor for T8, T8-QT, T9, T9-QT
SP1072	set of parts used to connect the T8 BSM diverter and cross handle
