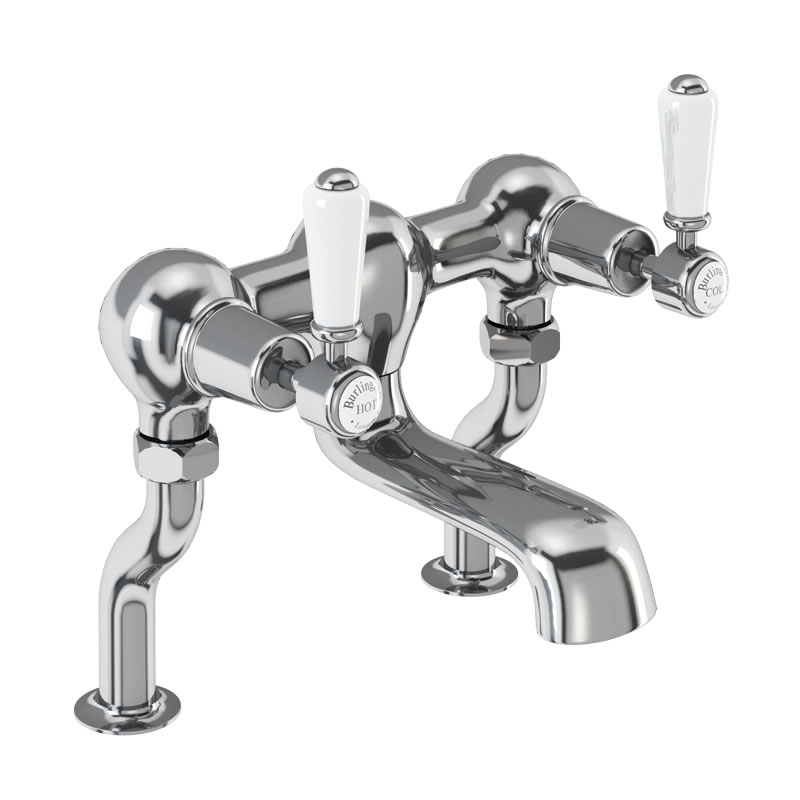

Burlington bath filler deck mounted

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

Tap Base options

Standard base

Kensington Regent bath filler - deck mounted

Regent base

Indicies & lever finish

White

Medici

Black

Kensington Walnut Bath Filler - Deck Mounted

White & Walnut

As Shown

T18 Deck mounting unions

T4 Kensington tap handles

T10_QT Quarter turn bath filler

KE23-QT - Combined product code

Colour

T18 - accessories - Polished Chrome

T4 - tap handle - Polished Chrome

T10_QT - tap - Polished Chrome

Material

T18 - accessories - Brass

T4 - tap handle - Brass

T10_QT - tap - Brass

Size

T18 - 55 x 255 x 106mm

T4 - 94 x 27 x 23.2mm

T10_QT - 157 x 236 x 120mm

Nett Weight

T18 - accessories - 0.94kg

T4 - tap handle - 0.29kg

T10_QT - tap - 1.88kg

Gross Weight Including Packaging

T18 - accessories - 1.09kg

T4 - tap handle - 0.34kg

T10_QT - tap - 2.29kg

Packed Dimension

T18 - 235 x 150 x 60 = 0.0021 m3

T4 - 105 x 70 x 35 = 0.0003 m3

T10_QT - 230 x 190 x 105 = 0.0046 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

ACS Approved

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	18.8	19.4	21.3	23	25.1	n/a	n/a
Spout (aerator)	5.3	10.4	11.7	13.4	15.4	n/a	n/a

Spare parts

SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1480	inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP68	T8, T10, T11 3, 4 quarter turn COLD cartridge
SP67	T8, T10, T11 3, 4 quarter turn HOT cartridge
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
