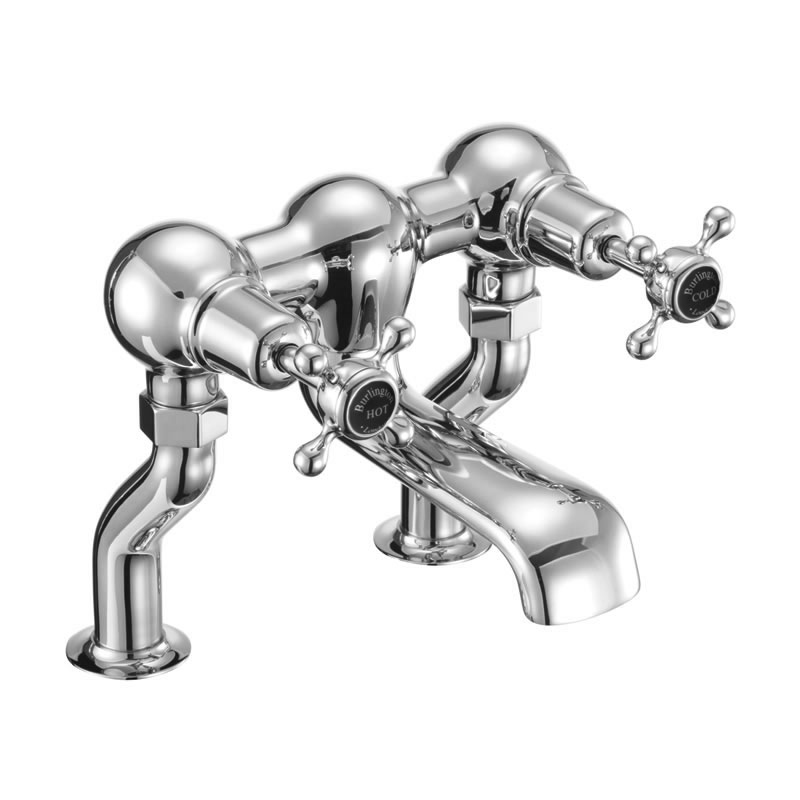

Burlington bath filler deck mounted
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
tradional screw-down
|
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T10_QT Quarter turn bath filler |
| T18 Deck mounting unions |
| BX8 Black hot/cold tap indices |
| T1 BLA Claremont tap handles (pair) - chrome & black |
| CL23 BLA-QT - Combined product code |
Colour
| T10_QT - tap - Polished Chrome |
| T18 - accessories - Polished Chrome |
| BX8 - indice - Gloss Black |
| T1 BLA - tap handle - Polished Chrome |
Material
| T10_QT - tap - Brass |
| T18 - accessories - Brass |
| BX8 - indice - Vitreous China |
| T1 BLA - tap handle - Brass |
Size
| T10_QT - 157 x 236 x 120mm |
| T18 - 55 x 255 x 106mm |
| BX8 - 21.4 x 21.4 x 5.6mm |
| T1 BLA - 65 x 65 x 28mm |
Nett Weight
| T10_QT - tap - 1.88kg |
| T18 - accessories - 0.94kg |
| BX8 - indice - 0.008kg |
| T1 BLA - tap handle - 0.15kg |
Gross Weight Including Packaging
| T10_QT - tap - 2.29kg |
| T18 - accessories - 1.09kg |
| BX8 - indice - 0.02kg |
| T1 BLA - tap handle - 0.17kg |
Packed Dimension
| T10_QT - 230 x 190 x 105 = 0.0046 m3 |
| T18 - 235 x 150 x 60 = 0.0021 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
| T1 BLA - 60 x 60 x 62 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 21 | 21.7 | 24.2 | 26.5 | 28 | n/a | n/a |
| Spout (aerator) | 5.4 | 10.3 | 11.5 | 13.6 | 15.5 | n/a | n/a |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP1480 | inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP68 | T8, T10, T11 3, 4 quarter turn COLD cartridge |
| SP67 | T8, T10, T11 3, 4 quarter turn HOT cartridge |
Downloads
-
2D CAD-File - DWG -
CL23 BLA-QT
(CL23_LD.dwg)
-
2D Drawing - PDF -
CL23 BLA-QT
(CL23_LD.pdf)
2D Drawing - PDF - CL23 BLA-QT
-
3D RFA BIMM Objects - File - RFA
-
CL23 BLA-QT
(T10-deck mounted.rfa)
- 3D IGS - File - IGS - T18 (t18.igs)
- 3D IGS - File - IGS - T1 BLA (T1 handle.igs)
- 3D IGS - File - IGS - T10_QT (t10.igs)
-
Lifestyle image 1 -
tiff
jpg -
Lifestyle image 2 -
tiff
jpg -
Product image 1 -
jpg
-
Product image 2 -
jpg
