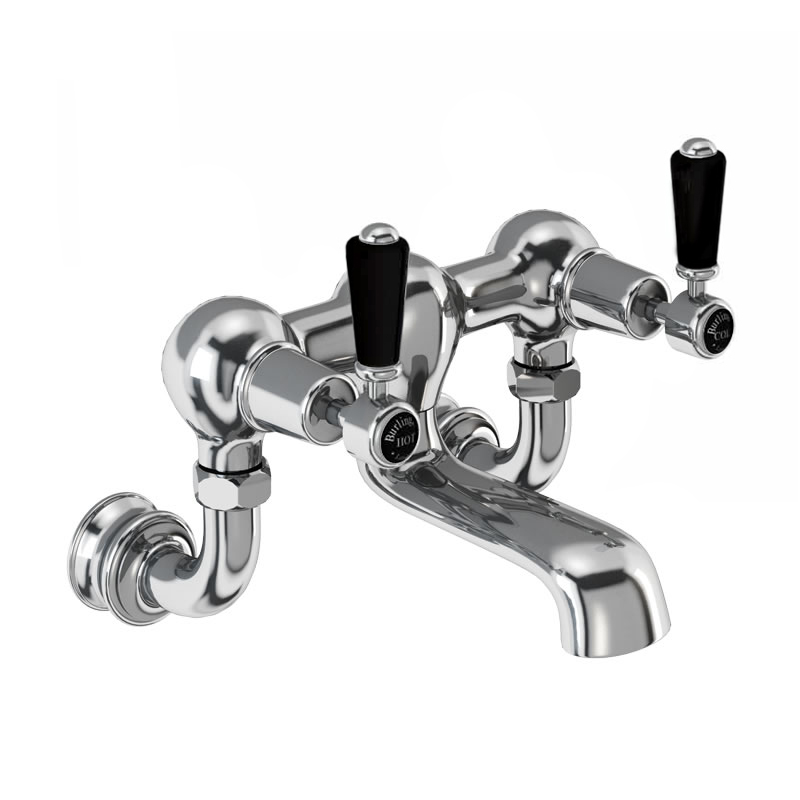

Burlington bath filler wall mounted
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T17_2 Wall mounting unions |
| T4A Regent large pair of tap bases |
| T10_QT Quarter turn bath filler |
| T4 BLA Kensington tap handles (pair) - chrome & black |
| KER24 BLA-QT - Combined product code |
Colour
| T17_2 - accessories - Polished Chrome |
| T4A - regent tap base - Polished Chrome |
| T10_QT - tap - Polished Chrome |
| T4 BLA - tap handle - Polished Chrome |
Material
| T17_2 - accessories - Brass |
| T4A - regent tap base - Brass |
| T10_QT - tap - Brass |
| T4 BLA - tap handle - Brass |
Size
| T17_2 - 64 x 235 x 67mm |
| T4A - 70 x 250 x 27mm |
| T10_QT - 157 x 236 x 120mm |
| T4 BLA - 94 x 27 x 23.2mm |
Nett Weight
| T17_2 - accessories - 0.67kg |
| T4A - regent tap base - 0.4kg |
| T10_QT - tap - 1.88kg |
| T4 BLA - tap handle - 0.29kg |
Gross Weight Including Packaging
| T17_2 - accessories - 0.82kg |
| T4A - regent tap base - 0.5kg |
| T10_QT - tap - 2.29kg |
| T4 BLA - tap handle - 0.34kg |
Packed Dimension
| T17_2 - 165 x 130 x 60 = 0.0013 m3 |
| T4A - 76 x 76 x 70 = 0.0004 m3 |
| T10_QT - 230 x 190 x 105 = 0.0046 m3 |
| T4 BLA - 105 x 70 x 35 = 0.0003 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 18.8 | 19.4 | 21.3 | 23 | 25.1 | n/a | n/a |
| Spout (aerator) | 5.3 | 10.4 | 11.7 | 13.4 | 15.4 | n/a | n/a |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1480 | inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP68 | T8, T10, T11 3, 4 quarter turn COLD cartridge |
| SP67 | T8, T10, T11 3, 4 quarter turn HOT cartridge |
| SP1721 | thread pipe (1 piece) for T17, T17-2 |
Downloads
- Instructions - PDF - T10_QT (English)
- Instructions - PDF - T4 BLA (English)
- Instructions - PDF - T10_QT (French)
- Instructions - PDF - T4 BLA (French)
-
2D CAD-File - DWG -
KER24 BLA-QT
(KER24_LD.dwg)
-
2D Drawing - PDF -
KER24 BLA-QT
(KER24_LD.pdf)
2D Drawing - PDF - KER24 BLA-QT
-
3D DWG - File - DWG
-
KER24 BLA-QT
(T10.dwg)
-
3D DXF - File - DXF
-
KER24 BLA-QT
(T10.dxf)
-
3D IGS - File - IGS
-
KER24 BLA-QT
(T10.igs)
- 3D DWG - File - DWG - T17_2 (T17-2.dwg)
- 3D DXF - File - DXF - T17_2 (T17-2.dxf)
- 3D IGS - File - IGS - T17_2 (T17-2.igs)
- 3D DWG - File - DWG - T4A (T4A.dwg)
- 3D DXF - File - DXF - T4A (T4A.dxf)
- 3D IGS - File - IGS - T4A (T4A.igs)
- 3D IGS - File - IGS - T4 BLA (t4.igs)
- 3D IGS - File - IGS - T10_QT (t10.igs)
