Burlington bath taps
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont bath tap - deck mounted Claremont Anglesey bath tap - deck mounted Anglesey Birkenhead bath tap - deck mounted Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options

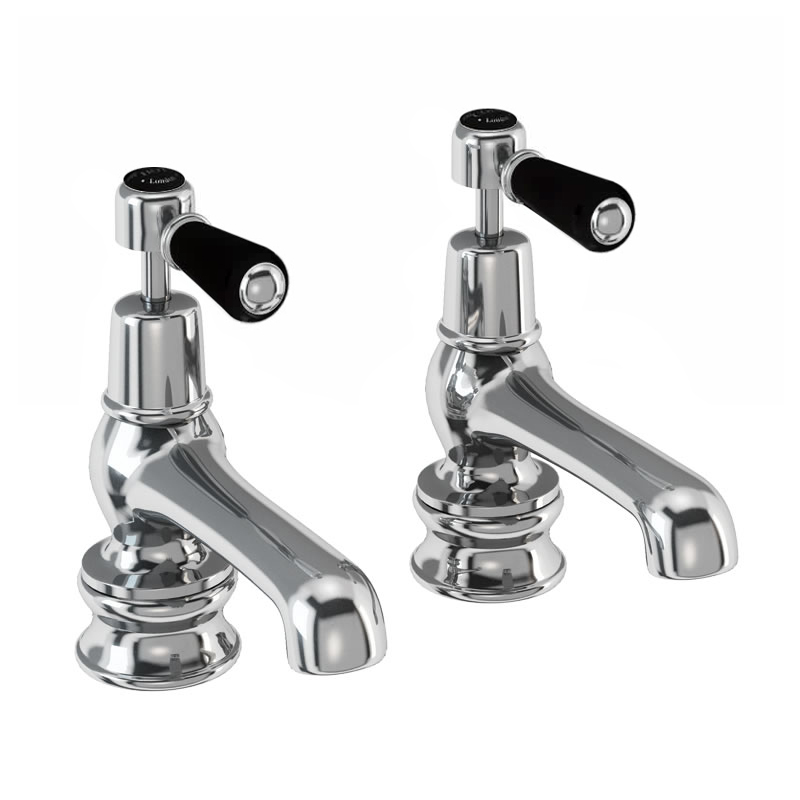

Kensington bath tap - deck mounted Standard base Kensington Regent bath tap - deck mounted Regent base
Indicies & lever finish

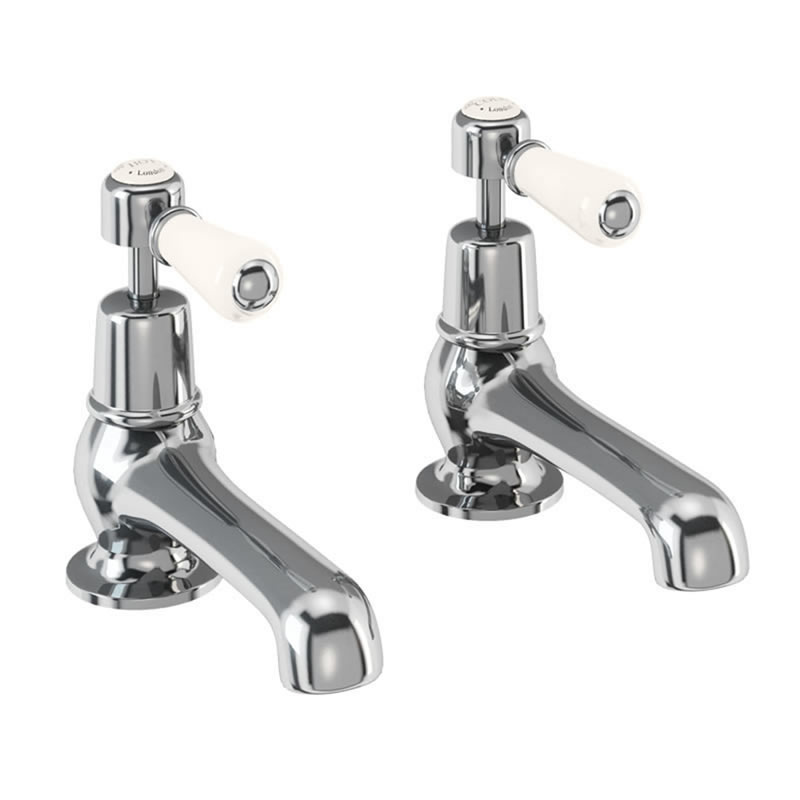

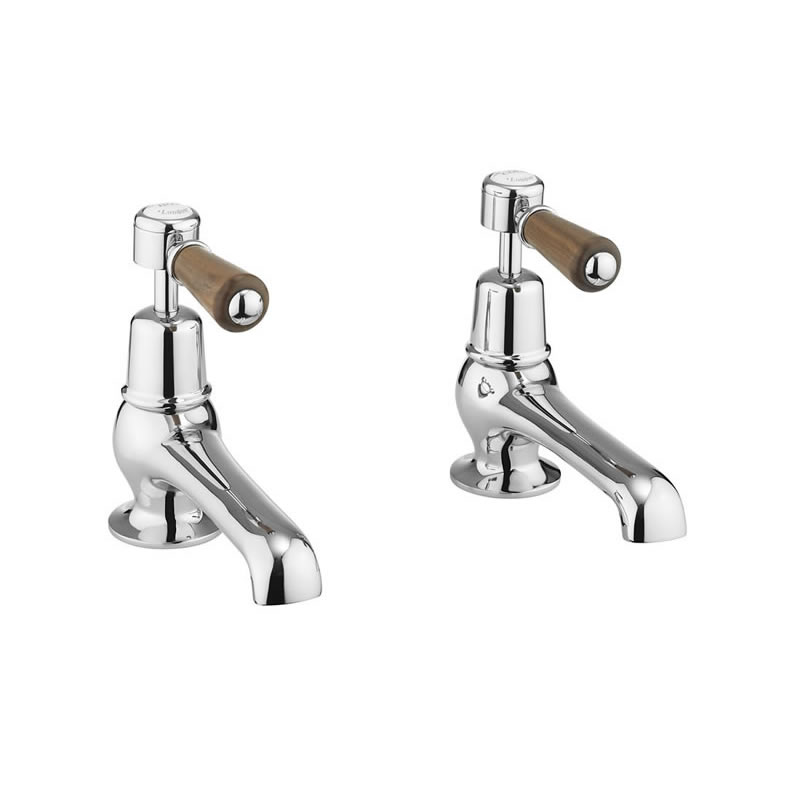

Kensington bath tap - deck mounted White Kensington Medici bath tap - deck mounted Medici Kensington bath tap - deck mounted Black Kensington Walnut Bath Tap - Deck Mounted White & Walnut
Alternate Text
As Shown

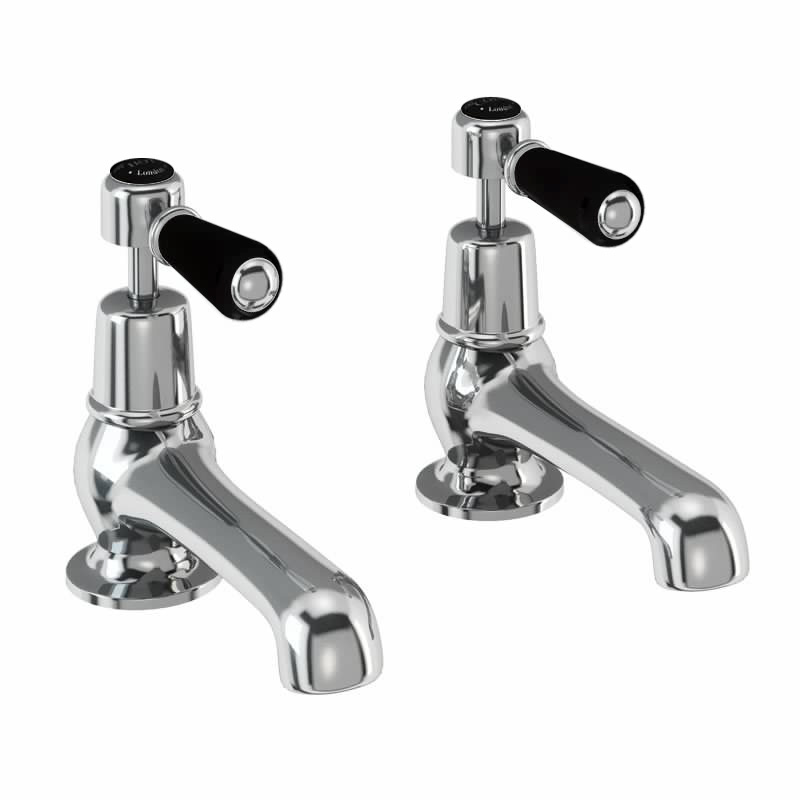

T7_QT Quarter turn bath pillar taps
T4 BLA Kensington tap handles (pair) - chrome & black
KE3 BLA-QT  -  Combined product code
Colour
T7_QT - tap - Polished Chrome
T4 BLA - tap handle - Polished Chrome
Material
T7_QT - tap - Brass
T4 BLA - tap handle - Brass
Size
T7_QT - 150 x 165 x 139mm
T4 BLA - 94 x 27 x 23.2mm
Nett Weight
T7_QT - tap - 1.32kg
T4 BLA - tap handle - 0.29kg
Gross Weight Including Packaging
T7_QT - tap - 1.62kg
T4 BLA - tap handle - 0.34kg
Packed Dimension
T7_QT - 325 x 195 x 55 = 0.0035 m3
T4 BLA - 105 x 70 x 35 = 0.0003 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 8.6  10.4  12.2  15.4  17.6  n/a  n/a
Spout (aerator) 4.3  7.4  8.5  10.2  11.6  n/a  n/a
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP72 T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71 T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T7_QT (English)
  • Instructions - PDF - T4 BLA (English)
  • Instructions - PDF - T7_QT (French)
  • Instructions - PDF - T4 BLA (French)
  • 3D DWG - File - DWG  -  KE3 BLA-QT (T7.dwg)
  • 3D DXF - File - DXF  -  KE3 BLA-QT (T7.dxf)
  • 3D IGS - File - IGS  -  KE3 BLA-QT (T7.igs)
  • 3D DWG - File - DWG - T7_QT (T7.dwg)
  • 3D DXF - File - DXF - T7_QT (T7.dxf)
  • 3D IGS - File - IGS - T7_QT (T7.igs)
  • 3D IGS - File - IGS - T4 BLA (t4.igs)
  • Product image 1 - jpg
  • Product image 2 - jpg

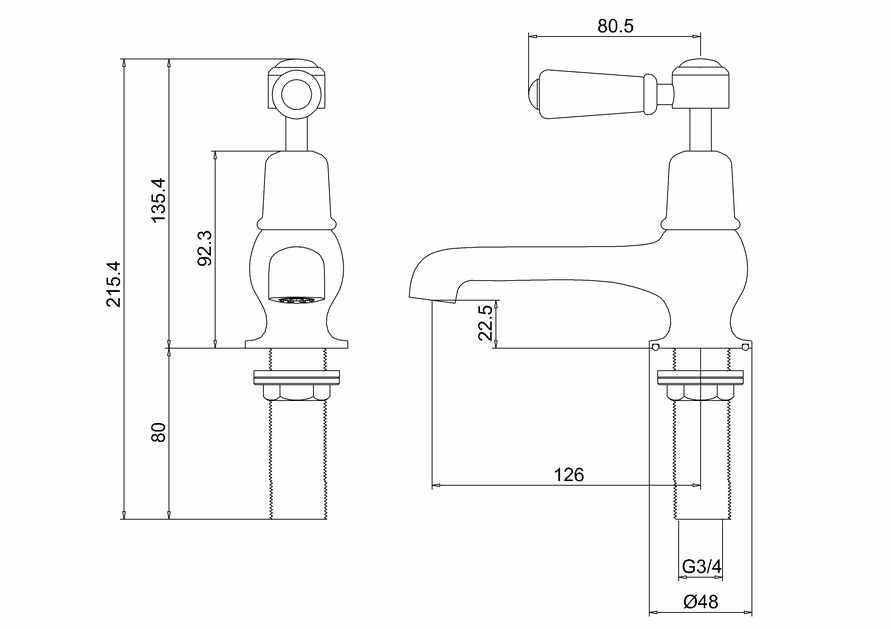

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
