Burlington bath taps
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown

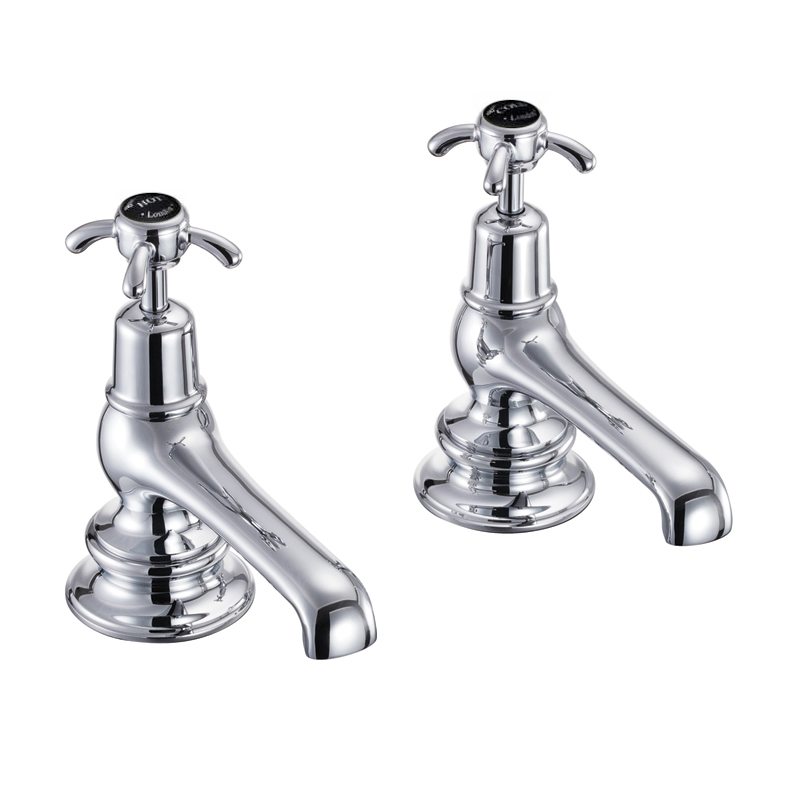

| T7_QT Quarter turn bath pillar taps |
| T2 Anglesey tap handles |
| T4A Regent large pair of tap bases |
| BX8 Black hot/cold tap indices |
| ANR3 BLA-QT - Combined product code |
Colour
| T7_QT - tap - Polished Chrome |
| T2 - tap handle - Polished Chrome |
| T4A - regent tap base - Polished Chrome |
| BX8 - indice - Gloss Black |
Material
| T7_QT - tap - Brass |
| T2 - tap handle - Brass |
| T4A - regent tap base - Brass |
| BX8 - indice - Vitreous China |
Size
| T7_QT - 150 x 165 x 139mm |
| T2 - 64 x 64 x 23.7mm |
| T4A - 70 x 250 x 27mm |
| BX8 - 21.4 x 21.4 x 5.6mm |
Nett Weight
| T7_QT - tap - 1.32kg |
| T2 - tap handle - 0.16kg |
| T4A - regent tap base - 0.4kg |
| BX8 - indice - 0.008kg |
Gross Weight Including Packaging
| T7_QT - tap - 1.62kg |
| T2 - tap handle - 0.18kg |
| T4A - regent tap base - 0.5kg |
| BX8 - indice - 0.02kg |
Packed Dimension
| T7_QT - 325 x 195 x 55 = 0.0035 m3 |
| T2 - 52 x 52 x 65 = 0.0002 m3 |
| T4A - 76 x 76 x 70 = 0.0004 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 14.2 | 16.5 | 19.5 | 23.1 | 23.7 | n/a | n/a |
| Spout (aerator) | 4.8 | 7.9 | 9.1 | 10.5 | 11.6 | n/a | n/a |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP72 | T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge |
| SP71 | T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
Downloads
-
2D CAD-File - DWG -
ANR3 BLA-QT
(ANR3_LD.dwg)
-

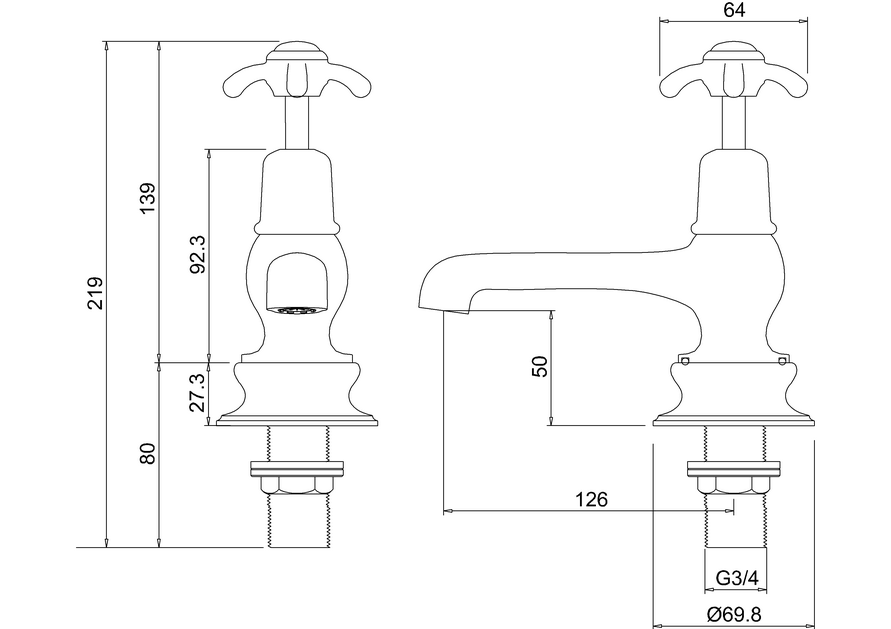

2D Drawing - PDF -
ANR3 BLA-QT
(ANR3_LD.pdf)
2D Drawing - PDF - ANR3 BLA-QT
-
3D RFA BIMM Objects - File - RFA
-
ANR3 BLA-QT
(T7_T2_T4A.rfa)
- 3D DWG - File - DWG - T7_QT (T7.dwg)
- 3D DXF - File - DXF - T7_QT (T7.dxf)
- 3D IGS - File - IGS - T7_QT (T7.igs)
- 3D DWG - File - DWG - T4A (T4A.dwg)
- 3D DXF - File - DXF - T4A (T4A.dxf)
- 3D IGS - File - IGS - T4A (T4A.igs)
- 3D DWG - File - DWG - T2 (T2.dwg)
- 3D DXF - File - DXF - T2 (T2.dxf)
- 3D IGS - File - IGS - T2 (T2.igs)
