Design 8 Single Sliding Door with Soft Close & Side Panel
Product Options
Sizes (click on size to refresh details)
110cm (A), 80cm (B)
|
110cm (A), 90cm (B)
|
110cm (A), 100cm (B)
|
|
120cm (A), 80cm (B)
|
120cm (A), 90cm (B)
|
120cm (A), 100cm (B)
|
|
140cm (A), 80cm (B)
|
140cm (A), 90cm (B)
|
140cm (A), 100cm (B)
|
|
150cm (A), 80cm (B)
|
150cm (A), 90cm (B)
|
150cm (A), 100cm (B)
|
|
160cm (A), 80cm (B)
|
160cm (A), 90cm (B)
|
160cm (A), 100cm (B)
|
|
170cm (A), 80cm (B)
|
170cm (A), 90cm (B)
|
170cm (A), 100cm (B)
|
As Shown
| DSLSC1400A Design 8 soft close sliding door |
| DSLSC1400B Design 8 soft close sliding door |
| DSLSP1000 Design 8 soft close side panel |
Colour
| DSLSC1400A - sliding door - Polished Aluminum |
| DSLSC1400B - sliding door - Polished Aluminum |
| DSLSP1000 - panel - Polished Aluminum |
Material
| DSLSC1400A - sliding door - Aluminum |
| DSLSC1400B - sliding door - Aluminum |
| DSLSP1000 - panel - Aluminum |
Nett Weight
| DSLSC1400A - sliding door - 31kg |
| DSLSC1400B - sliding door - 25.2kg |
| DSLSP1000 - panel - 38.5kg |
Gross Weight Including Packaging
| DSLSC1400A - sliding door - 34kg |
| DSLSC1400B - sliding door - 28.2kg |
| DSLSP1000 - panel - 41.26kg |
Packed Dimension
| DSLSC1400A - 2035 x 835 x 95 = 0.1614 m3 |
| DSLSC1400B - 2010 x 780 x 85 = 0.1333 m3 |
| DSLSP1000 - 2050 x 1070 x 85 = 0.1864 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DSL000046 | design Slider Breakwater Bar DSLSC1400 |
| FXDSL14 | design slider waterproof strip (L=742) with glass clip used for DSLSC1400 |
| DS0000001 | design Wall profile 1950mm-AC472-A |
| DSL000020 | glass clip |
| DSL000035 | glass clip set |
| DSL000031 | handle |
| DSL000019 | M4*5mm screw |
| DSL000009 | moving door waterproof strip L=1939 |
| DSLADJPROFILE | profile for design Slider |
| DSL000017 | roller |
| DSL000018 | roller clip |
| DSL000033 | sealing strip L=1950 |
| DSL000008 | soft close for DSLSC1400, DSLSC1700B |
| DSL000030 | ST4*40mm screw |
| DSL000034 | top Cap |
| DSL000013 | top sealing strip L=658 |
| DSL000003 | track L=1335 |
| DSL000027 | wall bracket |
| DSL000028 | wall bracket |
| DSL000026 | wall Bracket (LH) |
| DSL000025 | wall Bracket (RH) |
| DSL000006 | wall frame sealing strip L=1901 |
| DSL000016 | wall frame sealing strip L=1901 |
| DSL000032 | wall frame sealing strip L=1950 |
| DSL000029 | wall plug |
| DSL000024 | waterproof cap(LH) |
| DSL000023 | waterproof cap(RH) |
| DSL000021 | waterproof cap(RH) |
| DSL000022 | waterproof part(LH) |
Downloads
-
2D CAD-File - DWG -
DSLSC1400 DSLSP1000
(DSLSC1400.dwg)
-

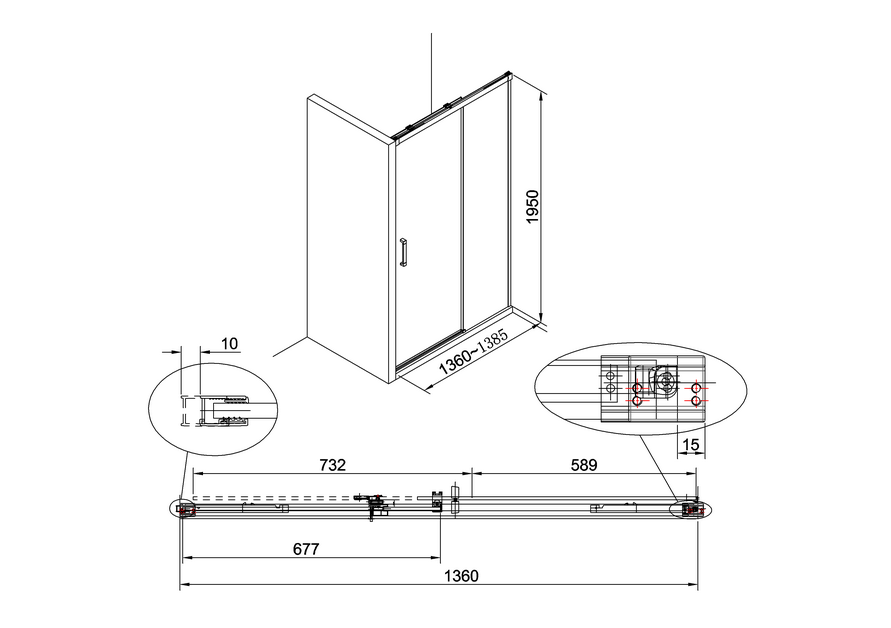

2D Drawing - PDF -
DSLSC1400 DSLSP1000
(DSLSC1400.pdf)
2D Drawing - PDF - DSLSC1400 DSLSP1000
-
3D STP - File - STP
-
DSLSC1400 DSLSP1000
