Design 8 Hinged Door & Side Panel

asaq2.Model.Web_product_new?.web_name

Product Options

Sizes (click on size to refresh details)

80cm (A), 70cm (C)	80cm (A), 70cm (C)	90cm (A), 70cm (C)	90cm (A), 70cm (C)	80cm (A), 76cm (C)
80cm (A), 76cm (C)	90cm (A), 76cm (C)	90cm (A), 76cm (C)	80cm (A), 80cm (C)	80cm (A), 80cm (C)
90cm (A), 80cm (C)	90cm (A), 80cm (C)	80cm (A), 90cm (C)	80cm (A), 90cm (C)	90cm (A), 90cm (C)
90cm (A), 90cm (C)	80cm (A), 100cm (C)	80cm (A), 100cm (C)	90cm (A), 100cm (C)	90cm (A), 100cm (C)
80cm (A), 110cm (C)	80cm (A), 110cm (C)	90cm (A), 110cm (C)	90cm (A), 110cm (C)	80cm (A), 120cm (C)
80cm (A), 120cm (C)	90cm (A), 120cm (C)	90cm (A), 120cm (C)	80cm (A), 140cm (C)	80cm (A), 140cm (C)
90cm (A), 140cm (C)	90cm (A), 140cm (C)

Alternate Text

As Shown

DSPSC0800_V2 Side panel 800mm

DWHSC0900L+ Design 8 wall mounted self-closing hinged door 900, left hand 8mm glass

Colour

DSPSC0800_V2 - panel - Polished Aluminum

DWHSC0900L+ - hinged Door - Polished Aluminum

Material

DSPSC0800_V2 - panel - Aluminum

DWHSC0900L+ - hinged Door - Aluminum

Size

DSPSC0800_V2 - 8 x 775 x 1950mm

DWHSC0900L+ - 8 x 880 x 1950mm

Nett Weight

DSPSC0800_V2 - panel - 30kg

DWHSC0900L+ - hinged Door - 33kg

Gross Weight Including Packaging

DSPSC0800_V2 - panel - 32.5kg

DWHSC0900L+ - hinged Door - 35kg

Packed Dimension

DSPSC0800_V2 - 2045 x 845 x 85 = 0.1469 m3

DWHSC0900L+ - 2030 x 935 x 95 = 0.1803 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

DS0000005_V2	bottom seat(LH)
DS0000006_V2	bottom seat(RH)
DS0000011_V2	cap
DS0000012_V2	cap
DS0000023_V2	cap(LH)
DS0000022_V2	cap(RH)
DS0000009_V2	cover of hinge for all Design products
DS0000018_V2	cover(LH)
DS0000017_V2	cover(RH)
DS0000020_V2	cover- IM-AL
DS0000007_V2	end part(RH)
DS0000016_V2	fixed part
DS0000019_V2	glass clamp for all Design products
DS0000021_V2	hinge for all Design products
DS0000010_V2	M4 *8mm Screw for all Design products
DS0000014_V2	wall bracket
DS0000015_V2	wall bracket cover
DS0000004_V2	wall frame sealing strip I L=1926
DS0000003_V2	wall frame sealing strip, L=1950
DS0000001_V2	wall profile, L=1926 for Hinge door, Side panel, quadrant door

Downloads

Instructions - PDF - DSPSC0800_V2 (English)
Instructions - PDF - DWHSC0900L+ (English)

2D CAD-File - DWG - DWHSC0900L+ DSPSC0800+ (DWHSC0900L_.dwg)

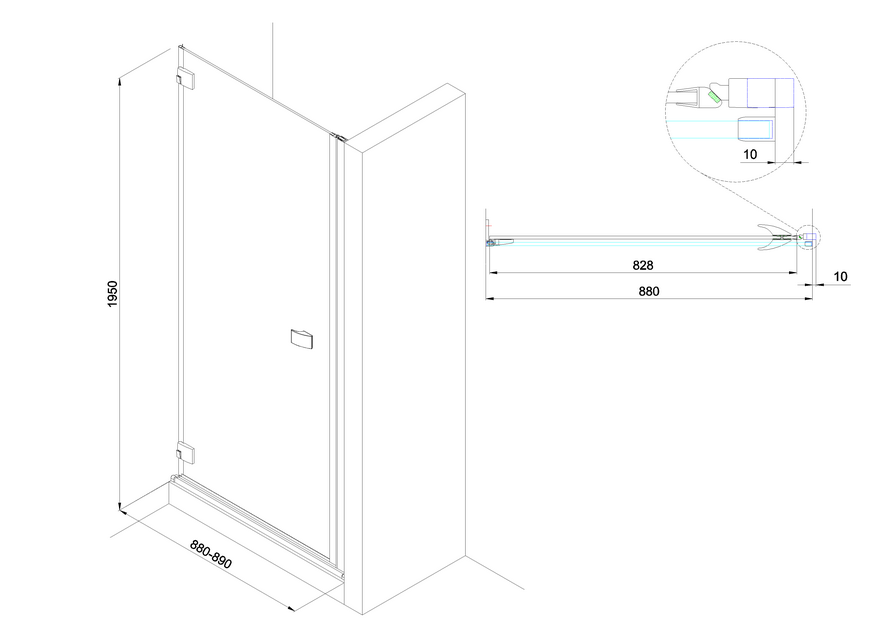

2D Drawing - PDF - DWHSC0900L+ DSPSC0800+ (DWHSC0900L_.pdf) 2D Drawing - PDF - DWHSC0900L+ DSPSC0800+

3D STP - File - STP - DWHSC0900L+ DSPSC0800+ (DWHSC0900L_.stp)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
