Design 8 Hinged Door with Inline Panel & Side Panel
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)
Design 8 Hinged Door with Inline Panel 700 & Side Panel 700 silver 70cm (A), 70cm (C) Design 8 Hinged Door with Inline Panel 760 & Side Panel 700 silver 76cm (A), 70cm (C) Design 8 Hinged Door with Inline Panel 800 & Side Panel 700 silver 80cm (A), 70cm (C) Design 8 Hinged Door with Inline Panel 900 & Side Panel 700 silver 90cm (A), 70cm (C)
Design 8 Hinged Door with Inline Panel 1000 & Side Panel 700 silver 100cm (A), 70cm (C) Design 8 Hinged Door with Inline Panel 1100 & Side Panel 700 silver 110cm (A), 70cm (C) hinged_door_and_side_panel4.jpg 120cm (A), 70cm (C) Design 8 Hinged Door with Inline Panel 700 & Side Panel 760 silver 70cm (A), 76cm (C)
Design 8 Hinged Door with Inline Panel 760 & Side Panel 760 silver 76cm (A), 76cm (C) Design 8 Hinged Door with Inline Panel 800 & Side Panel 760 silver 80cm (A), 76cm (C) Design 8 Hinged Door with Inline Panel 900 & Side Panel 760 silver 90cm (A), 76cm (C) Design 8 Hinged Door with Inline Panel 1000 & Side Panel 760 silver 100cm (A), 76cm (C)
Design 8 Hinged Door with Inline Panel 1100 & Side Panel 760 silver 110cm (A), 76cm (C) Design 8 Hinged Door with Inline Panel 1200 & Side Panel 760 silver 120cm (A), 76cm (C) Design 8 Hinged Door with Inline Panel 700 & Side Panel 800 silver 70cm (A), 80cm (C) Design 8 Hinged Door with Inline Panel 760 & Side Panel 800 silver 76cm (A), 80cm (C)
Design 8 Hinged Door with Inline Panel 800 & Side Panel 800 silver 80cm (A), 80cm (C) Design 8 Hinged Door with Inline Panel 900 & Side Panel 800 silver 90cm (A), 80cm (C) Design 8 Hinged Door with Inline Panel 1000 & Side Panel 800 silver 100cm (A), 80cm (C) Design 8 Hinged Door with Inline Panel 1100 & Side Panel 800 silver 110cm (A), 80cm (C)
Design 8 Hinged Door with Inline Panel 1200 & Side Panel 800 silver 120cm (A), 80cm (C) Design 8 Hinged Door with Inline Panel 700 & Side Panel 900 silver 70cm (A), 90cm (C) Design 8 Hinged Door with Inline Panel 760 & Side Panel 900 silver 76cm (A), 90cm (C) Design 8 Hinged Door with Inline Panel 800 & Side Panel 900 silver 80cm (A), 90cm (C)
Design 8 Hinged Door with Inline Panel 900 & Side Panel 900 silver 90cm (A), 90cm (C) Design 8 Hinged Door with Inline Panel 1000 & Side Panel 900 silver 100cm (A), 90cm (C) Design 8 Hinged Door with Inline Panel 1100 & Side Panel 900 silver 110cm (A), 90cm (C) Design 8 Hinged Door with Inline Panel 1200 & Side Panel 900 silver 120cm (A), 90cm (C)
Design 8 Hinged Door with Inline Panel 700 & Side Panel 1000 silver 70cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 760 & Side Panel 1000 silver 76cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 800 & Side Panel 1000 silver 80cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 900 & Side Panel 1000 silver 90cm (A), 100cm (C)
Design 8 Hinged Door with Inline Panel 1000 & Side Panel 1000 silver 100cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 1100 & Side Panel 1000 silver 110cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 1200 & Side Panel 1000 silver 120cm (A), 100cm (C) Design 8 Hinged Door with Inline Panel 700 & Side Panel 1100 silver 70cm (A), 110cm (C)
Design 8 Hinged Door with Inline Panel 760 & Side Panel 1100 silver 76cm (A), 110cm (C) Design 8 Hinged Door with Inline Panel 800 & Side Panel 1100 silver 80cm (A), 110cm (C) Design 8 Hinged Door with Inline Panel 900 & Side Panel 1100 silver 90cm (A), 110cm (C) Design 8 Hinged Door with Inline Panel 1000 & Side Panel 1100 silver 100cm (A), 110cm (C)
Alternate Text
As Shown

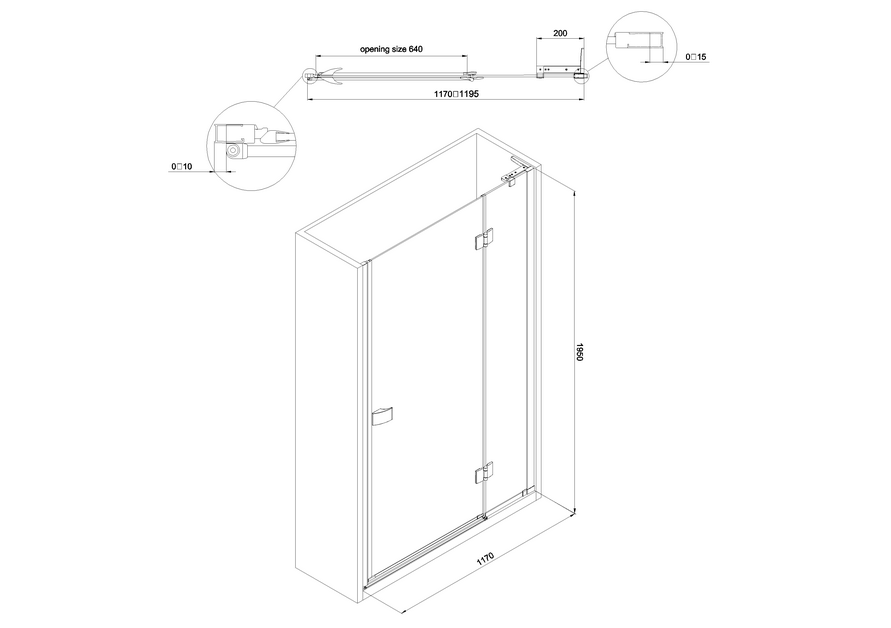

DHDSC1200_V2 Design 8 Hinge Door 1200
DSPSC0700_V2 Side panel 700mm
Colour
DHDSC1200_V2 - hinged Door - Polished Aluminum
DSPSC0700_V2 - panel - Polished Aluminum
Material
DHDSC1200_V2 - hinged Door - Aluminum
DSPSC0700_V2 - panel - Aluminum
Size
DHDSC1200_V2 - 8 x 1170 x 1950mm
DSPSC0700_V2 - 8 x 675 x 1950mm
Nett Weight
DHDSC1200_V2 - hinged Door - 40kg
DSPSC0700_V2 - panel - 26kg
Gross Weight Including Packaging
DHDSC1200_V2 - hinged Door - 43kg
DSPSC0700_V2 - panel - 28.7kg
Packed Dimension
DHDSC1200_V2 - 2045 x 755 x 95 = 0.1467 m3
DSPSC0700_V2 - 2045 x 745 x 85 = 0.1295 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
DS0000005_V2 bottom seat(LH)
DS0000006_V2 bottom seat(RH)
DS0000031_V2 breakwate Bar, L=685 for DHDSC1100+, DHDSC1200+
DS0000049_V2 bright chrome, bottom profile L=447 for DHDSC1200+
DS0000011_V2 cap
DS0000012_V2 cap
DS0000023_V2 cap(LH)
DS0000022_V2 cap(RH)
DS0000009_V2 cover of hinge for all Design products
DS0000018_V2 cover(LH)
DS0000017_V2 cover(RH)
DS0000020_V2 cover- IM-AL
DS0000008_V2 end part(LH)
DS0000035_V2 end part(LH)
DS0000007_V2 end part(RH)
DS0000034_V2 end part(RH)
DS0000016_V2 fixed part
DS0000019_V2 glass clamp for all Design products
DS0000021_V2 hinge for all Design products
DS0000010_V2 M4 *8mm Screw for all Design products
DS0000061_V2 magnetic strip, AQ306=1948, AC133=1932
DS0000051_V2 support Bar, L=155 for DHDSC0900+, DHDSC1000+, DHDSC1100+, DHDSC1200+
DS0000014_V2 wall bracket
DS0000015_V2 wall bracket cover
DS0000004_V2 wall frame sealing strip I L=1926
DS0000003_V2 wall frame sealing strip, L=1950
DS0000001_V2 wall profile, L=1926 for Hinge door, Side panel, quadrant door
DS0000002_V2 wall profile, wall frame sealing strip, L=1950, gasket for hinge door
Downloads
  • Instructions - PDF - DHDSC1200_V2 (English)
  • Instructions - PDF - DSPSC0700_V2 (English)
  • 3D STP - File - STP  -  DHDSC1200+ DSPSC0700+ pending
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
