Design 8 Walk In & Deflector Panel
Product Options
Sizes (click on size to refresh details)
30cm (A), 30cm (C)
|
40cm (A), 30cm (C)
|
50cm (A), 30cm (C)
|
|
60cm (A), 30cm (C)
|
70cm (A), 30cm (C)
|
76cm (A), 30cm (C)
|
|
80cm (A), 30cm (C)
|
90cm (A), 30cm (C)
|
100cm (A), 30cm (C)
|
|
110cm (A), 30cm (C)
|
120cm (A), 30cm (C)
|
140cm (A), 30cm (C)
|
As Shown
| DSPSC0900_V2 Side panel 900mm |
| DWIDP300ST_V2 Design 8 Deflector Panel 300 Chrome Hinge |
Nett Weight
| DSPSC0900_V2 - panel - 34kg |
| DWIDP300ST_V2 - - 10.9kg |
Gross Weight Including Packaging
| DSPSC0900_V2 - panel - 37kg |
| DWIDP300ST_V2 - - 13.9kg |
Packed Dimension
| DSPSC0900_V2 - 2045 x 950 x 85 = 0.1651 m3 |
| DWIDP300ST_V2 - 2030 x 375 x 85 = 0.0647 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000005_V2 | bottom seat(LH) |
| DS0000006_V2 | bottom seat(RH) |
| DS0000011_V2 | cap |
| DS0000012_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000018_V2 | cover(LH) |
| DS0000017_V2 | cover(RH) |
| DS0000020_V2 | cover- IM-AL |
| DS0000007_V2 | end part(RH) |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000004_V2 | wall frame sealing strip I L=1926 |
| DS0000003_V2 | wall frame sealing strip, L=1950 |
| DS0000001_V2 | wall profile, L=1926 for Hinge door, Side panel, quadrant door |
Downloads
-

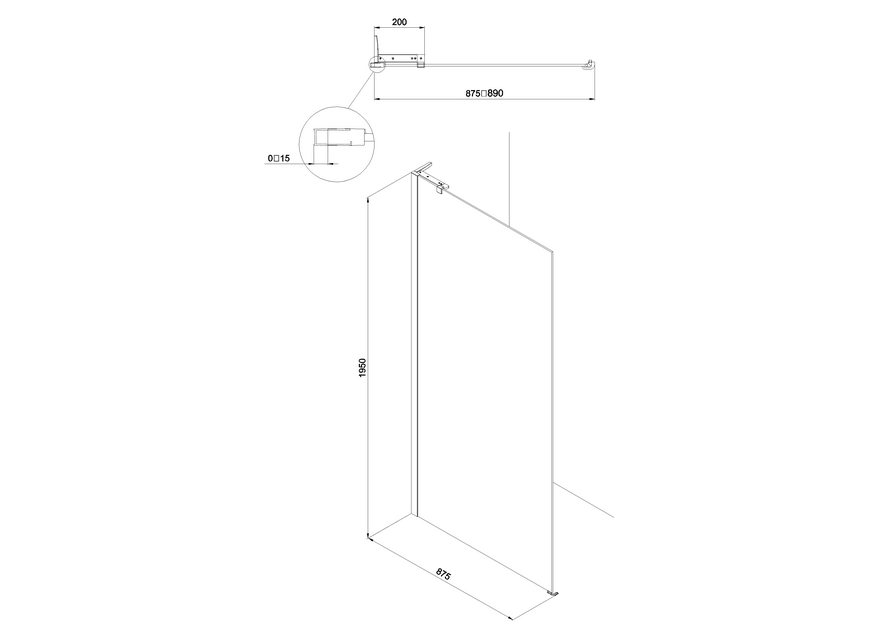

2D CAD-File - DWG -
