Design 8 Curved Quad with Double Doors
Product Options
Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
As Shown
| DQDSC0900+ Curved Quad with Double Doors 900mm |
Material
| DQDSC0900+ - quadrant - Aluminum |
Nett Weight
| DQDSC0900+ - quadrant - 53.6kg |
Gross Weight Including Packaging
| DQDSC0900+ - quadrant - 56.6kg |
Packed Dimension
| DQDSC0900+ - 2045 x 505 x 165 = 0.1704 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000044_V2 | bright chrome, bottom profile L=357 for DQSSC0900+ DQDSC0900+ |
| DS0000011_V2 | cap |
| DS0000012_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000018_V2 | cover(LH) |
| DS0000017_V2 | cover(RH) |
| DS0000020_V2 | cover- IM-AL |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000001_V2 | wall profile, L=1926 for Hinge door, Side panel, quadrant door |
Downloads
-
2D CAD-File - DWG -
DQDSC0900+
(DQDSC0900_.dwg)
-

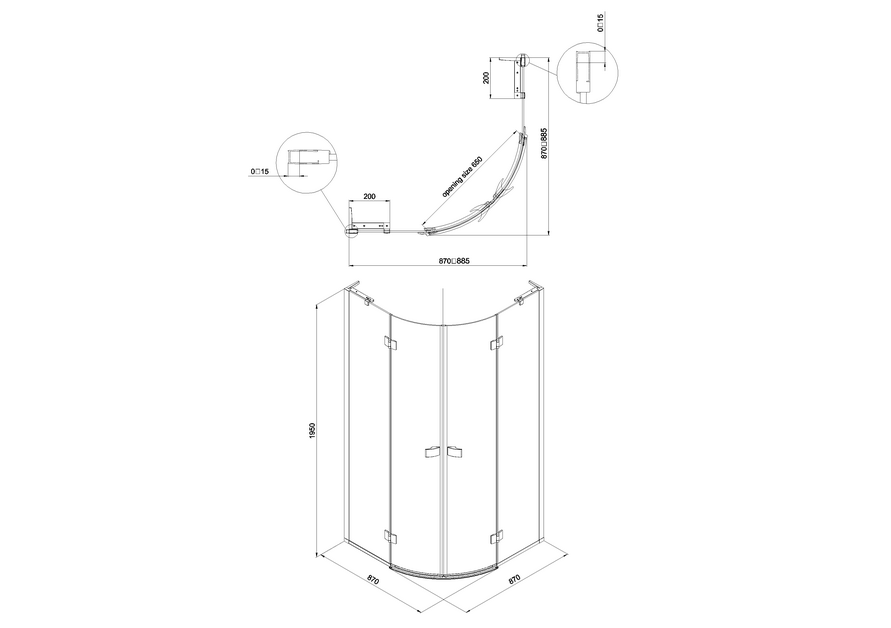

2D Drawing - PDF -
DQDSC0900+
(DQDSC0900_.pdf)
2D Drawing - PDF - DQDSC0900+
